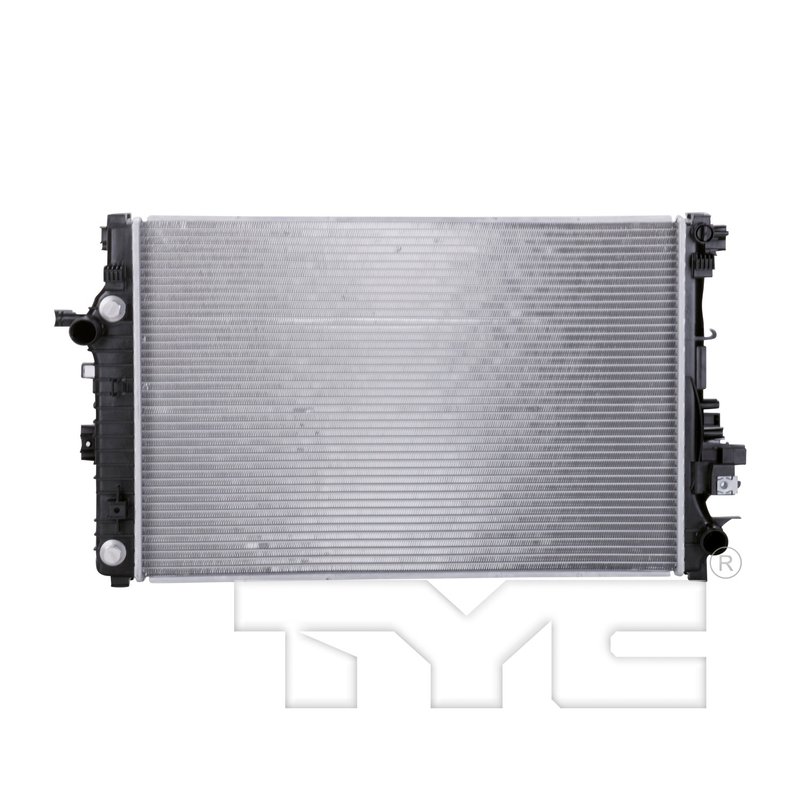

TYC 13575 Radiator
| Brand | TYC 13575 |
|---|---|
| Core Height (in) | 17.87 |
| Core Length (in) | 25.98 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.63 |
| Fin Height | 0.31 |
| Flow Configuration | Crossflow |
| Inlet Diameter | 1.36 |
| Inlet Fitting Design | Hose Clamp |
| No. Of Rows | 1 |
| Outlet Diamter | 1.36 |
| Outlet Fitting Design | Hose Clamp |
| Tank Material | Plastic |
| Toc Inlet Diameter | 0.49 |
| Toc Inlet Fitting Design | Quick Connect |
| Toc Outlet Diameter | 0.49 |
| Toc Outlet Fitting Design | Quick Connect |
| Transmission Oil Cooler Distance between Fittings | 11.81 |
| Transmission Oil Cooler Type | Plate |
| Tube Width X Height | 0.629*0.078 |
| Product line | TYC Radiator |
| Fits | Chevrolet · 7 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Plastic tanks. Durable tank design supports reliable cooling performance.
Crossflow design. Engineered for effective coolant circulation through the radiator.
Cross-references APDI 8013575, Chevrolet 23336320 and Partslink GM3010584 for the same application. See all 3.
Radiator for Chevrolet Malibu Cooling Service
TYC Radiator 13575 is a direct-fit radiator for select Chevrolet Malibu applications from 2016-2022. Built with an aluminum core and plastic tanks, it uses a crossflow design to support efficient coolant transfer in the engine cooling system.
This TYC Radiator line focuses on OE-style replacement fit and construction. Part number 13575 includes a plate-type transmission oil cooler with quick-connect fittings, making it a practical choice for Malibu models equipped with automatic transmission cooling integration.
Key Features
- Aluminum core with plastic tank construction
- Crossflow flow configuration for efficient cooling layout
- Single-row core design
- Core dimensions: 25.98 in. length, 17.87 in. height, 0.63 in. thickness
- Inlet and outlet diameter: 1.36 in. with hose clamp fitting design
- Integrated plate-type transmission oil cooler
- Transmission oil cooler inlet and outlet use 0.49 in. quick-connect fittings
- Tube width x height: 0.629 x 0.078
Detailed Description
TYC Radiator 13575 is engineered for Chevrolet Malibu cooling system replacement needs where a radiator with integrated transmission oil cooler connections is required. The aluminum core helps transfer heat efficiently, while the plastic tank construction supports a lightweight OE-style design. With a crossflow layout and single-row core, this radiator is built around the dimensions and connection points needed for proper fitment in 2016-2022 Chevrolet Malibu applications. This part cross-references APDI 8013575 for the same application.
Common Issues This Radiator Can Address
- Cracked or leaking radiator tanks
- Corrosion or damage in the radiator core
- Restricted coolant flow from an aging radiator
- Transmission cooler connection wear or leakage
- Overheating caused by radiator failure
Installation Notes and Tips
Fits 2021-2022 Chevrolet Malibu, Primary. Fits 2016-2020 Chevrolet Malibu, N/A. Verify inlet and outlet hose sizes, transmission cooler quick-connect style, and mounting points before installation. Flush the cooling system and inspect hoses, clamps, and coolant condition when replacing the radiator. Part number 13575 should be matched to the vehicle’s existing radiator configuration for proper installation.
Quality Assurance
TYC Radiator 13575 is built as an OE-style replacement radiator for the listed Chevrolet Malibu applications. Cross-reference numbers include Chevrolet 23336320 and Partslink GM3010584.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2022 | Chevrolet | Malibu | Premier | Sedan | — | 2.0L | L4 | Primary | TYC Radiator |
| 2021 | Chevrolet | Malibu | Premier | Sedan | — | 2.0L | L4 | Primary | TYC Radiator |
| 2020 | Chevrolet | Malibu | — | — | Automatic | 2.0L | L4 | N/A | TYC Radiator |
| 2019 | Chevrolet | Malibu | — | — | Automatic | 2.0L | L4 | N/A | TYC Radiator |
| 2018 | Chevrolet | Malibu | — | — | Automatic | 2.0L | L4 | N/A | TYC Radiator |
| 2017 | Chevrolet | Malibu | — | — | Automatic | 2.0L | L4 | N/A | TYC Radiator |
| 2016 | Chevrolet | Malibu | — | — | Automatic | 2.0L | L4 | N/A | TYC Radiator |
