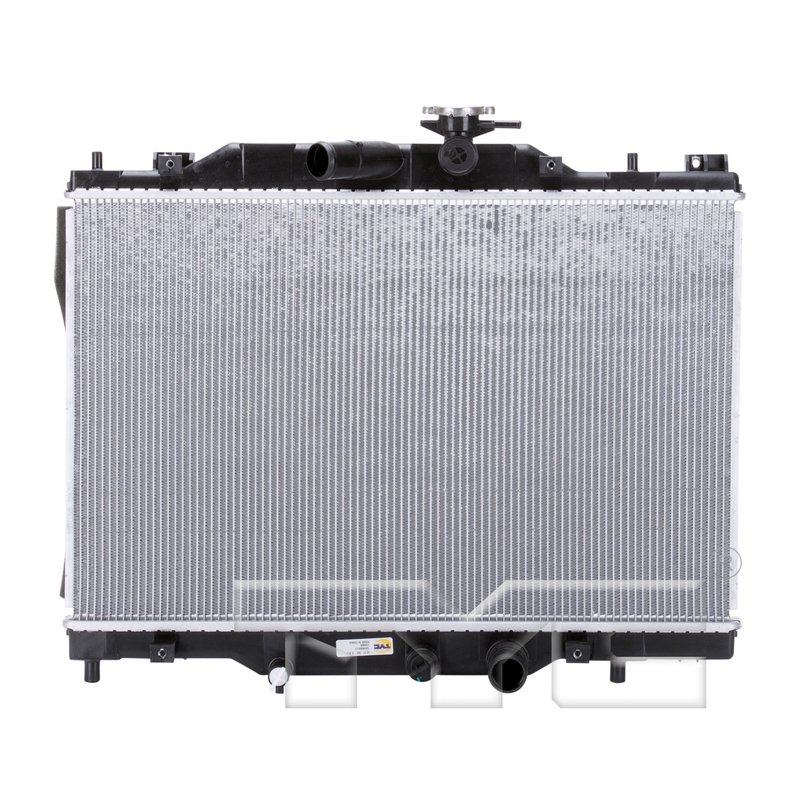

TYC 13585 Radiator

Overview of TYC Radiator for Mazda CX-3

The TYC Radiator part number 13585 is designed specifically for the Mazda CX-3, providing reliable engine cooling performance. Constructed with an aluminum core, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core Material: Durable aluminum for effective heat transfer
• Core Dimensions: 22.97 inches height, 14.72 inches length, 0.63 inches thickness
• Flow Configuration: Downflow design for consistent coolant circulation
• Connection Types: Hose clamp inlet and outlet with 1.30-inch diameter
• Fin and Tube Count: 78 fins per 4 inches, 89 total tubes, and 90 total fin rows
• Core Design: Single-row tube layout with 16 tubes per 4 inches
• Headers: Top and bottom headers sized 2.54 by 23.68 inches

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering quality cooling components engineered to meet or exceed OEM specifications. This radiator model 13585 is part of that line, offering a balance of durability and performance tailored for the Mazda CX-3. The aluminum core and precise fin design contribute to effective heat exchange and long-term reliability.

Technical Description and Features

This radiator features a downflow core configuration that promotes efficient coolant flow from top to bottom, enhancing heat dissipation. The aluminum core material provides lightweight strength and corrosion resistance. With a core height of 22.97 inches and length of 14.72 inches, it fits the cooling system requirements of the Mazda CX-3. The fin count of 78 per 4 inches and total fin rows of 90 optimize airflow through the radiator, while the 89 tubes ensure sufficient coolant passage. Hose clamp inlet and outlet connections with 1.30-inch diameters allow for secure attachment to existing hoses.

Common Applications and Problem Resolution

• Replaces leaking or damaged radiators in Mazda CX-3 vehicles
• Addresses engine overheating issues caused by inefficient cooling
• Restores proper coolant flow and temperature regulation
• Solves radiator corrosion or clogging problems
• Improves overall engine performance by maintaining optimal operating temperature

Installation Notes and Tips

Ensure the radiator is compatible with the Mazda CX-3 model year before installation. Use appropriate hose clamps for the 1.30-inch inlet and outlet connections to prevent leaks. Inspect and flush the cooling system prior to installation to avoid contamination. Handle the aluminum core carefully to prevent damage to fins and tubes during installation.

Quality Assurance and Warranty

TYC Radiator part number 13585 is manufactured to meet industry standards for durability and performance. While specific warranty details are not provided, TYC products typically undergo rigorous quality control to ensure reliability in automotive cooling applications.
