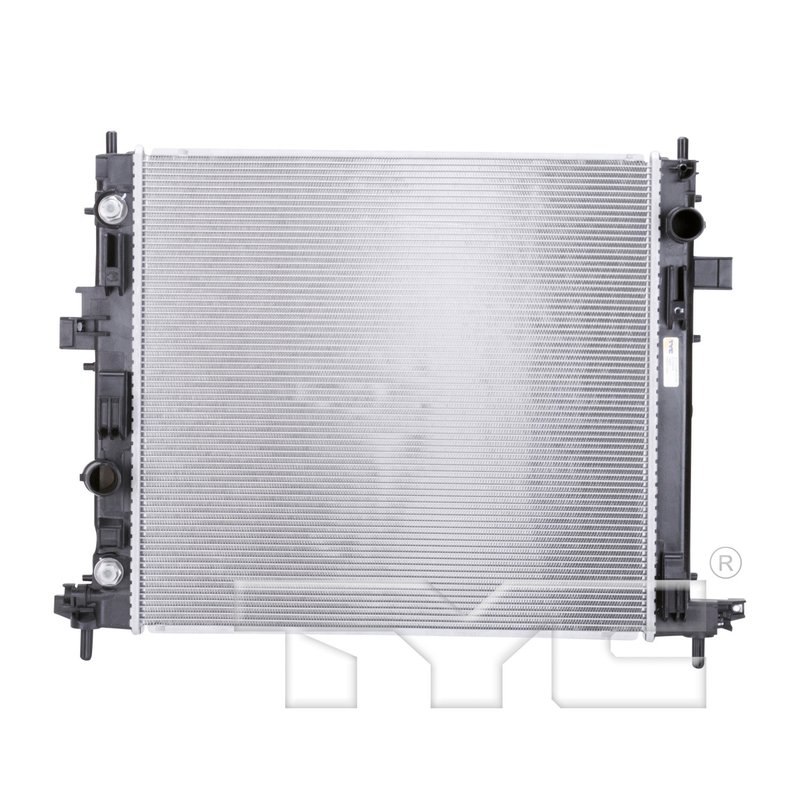

TYC 13589 Radiator - Primary

Overview of the TYC Radiator 13589 for Cadillac and Chevrolet

The TYC Radiator 13589 is engineered to provide reliable cooling performance for select Cadillac and Chevrolet models, including the ATS, Camaro, and CTS. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine and transmission temperature management.

• Core material constructed from aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Crossflow flow configuration for optimized coolant circulation
• Core dimensions: 19.13 inches height, 20.63 inches length, and 1.02 inches thickness
• Single-row tube design with 74 total tubes and 75 fin rows for improved airflow
• Hose clamp inlet and outlet connections with 1.34-inch diameter
• Quick connect transmission oil cooler inlet and outlet with 0.37-inch diameter
• Bottom and top headers sized at 1.87 by 19.94 inches

Detailed Product Description

The TYC Radiator 13589 features a robust aluminum core that ensures efficient heat transfer to maintain optimal engine temperatures. Its crossflow design promotes effective coolant flow across the core, enhancing cooling efficiency. The radiator includes a plate-type transmission oil cooler, which is integrated to help regulate transmission fluid temperature, critical for vehicle performance and longevity. With a single row of 74 tubes and 75 fin rows, the radiator maximizes airflow and heat dissipation. The hose clamp inlet and outlet connections, each with a 1.34-inch diameter, provide secure and reliable hose attachment. Additionally, the quick connect fittings for the transmission oil cooler inlet and outlet simplify connection and maintenance.

About the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering quality cooling components designed to meet or exceed OEM specifications. Radiators in this line, including part number 13589, are engineered with precision to fit specific vehicle applications such as Cadillac ATS, Chevrolet Camaro, and CTS models. The line emphasizes durable materials and integrated features like transmission oil coolers to support both engine and transmission cooling needs.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiators in Cadillac ATS, Chevrolet Camaro, and CTS vehicles
• Resolves overheating issues caused by inefficient heat dissipation
• Addresses transmission fluid overheating with integrated plate oil cooler
• Improves coolant flow and reduces risk of engine damage due to high temperatures
• Restores proper coolant circulation in vehicles with compromised radiator cores

Installation Notes and Tips

• Ensure compatibility with Cadillac ATS, Chevrolet Camaro, and CTS models before installation
• Inspect and replace all hoses and clamps as needed to prevent leaks
• Flush the cooling system prior to installation to remove debris and contaminants
• Verify secure connections on hose clamp and quick connect fittings for transmission oil cooler
• Follow vehicle manufacturer torque specifications for mounting hardware

Quality Assurance and Warranty

TYC Radiator 13589 is manufactured to meet industry standards for durability and performance. The aluminum core construction and integrated transmission oil cooler are tested for reliability under normal operating conditions. Warranty information is provided by TYC and should be reviewed to understand coverage specifics.
