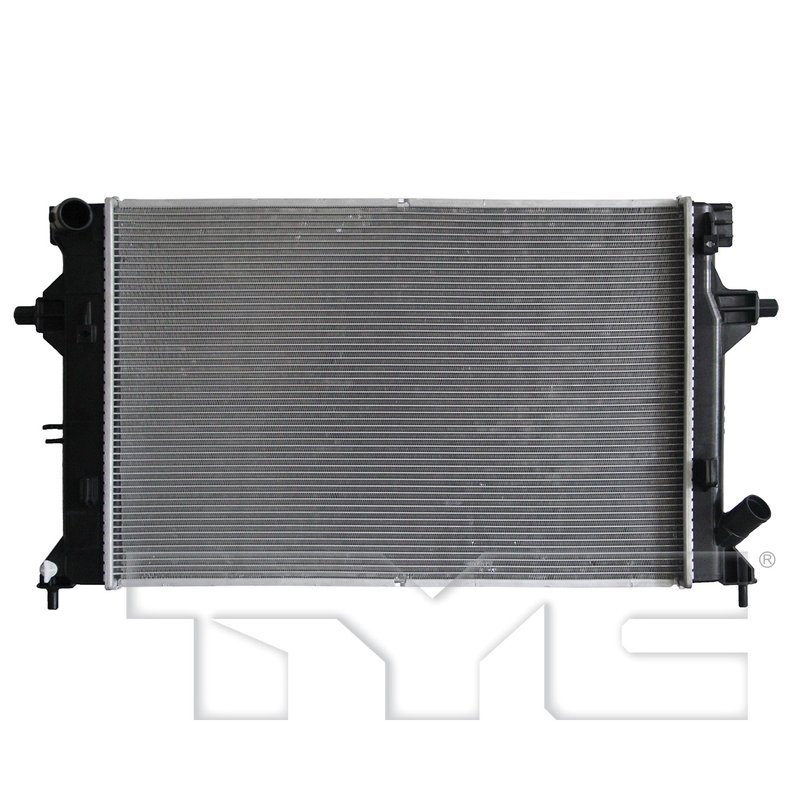

TYC 13609 Radiator

Overview of TYC Radiator 13609 for Hyundai Elantra Models

The TYC Radiator 13609 is engineered specifically for Hyundai Elantra and Elantra GT vehicles, providing reliable cooling performance. Designed with an aluminum core and a downflow configuration, this radiator supports efficient engine temperature regulation.

• Core Material: Durable aluminum construction
• Core Dimensions: 16.16 inches height, 24.02 inches length, 0.47 inches thickness
• Fin Count: 92 fins per 4 inches for effective heat dissipation
• Flow Configuration: Downflow design for optimal coolant circulation
• Connection Types: Hose clamp inlet and outlet with 33mm diameter
• Total Tube Count: 54 tubes arranged in a single row
• Compatible with Hyundai Elantra and Elantra GT models

Detailed Features of the TYC Radiator 13609

This radiator features a robust aluminum core that enhances heat transfer while maintaining lightweight durability. The core measures 16.16 inches in height, 24.02 inches in length, and 0.47 inches in thickness, providing a balanced size for effective cooling. With 92 fins every 4 inches and a fin wave height of 5.5 inches, the radiator maximizes airflow and heat dissipation. The downflow flow configuration ensures coolant moves efficiently through the 54 tubes arranged in a single row, maintaining consistent engine temperatures. Both inlet and outlet connections use hose clamps with a 33mm diameter, facilitating secure and leak-resistant hose attachment.

About the TYC Radiator Product Line

The TYC Radiator line focuses on delivering reliable cooling components designed to meet or exceed OEM specifications. This product line emphasizes quality materials and precise fitment, ensuring compatibility with specific vehicle models such as the Hyundai Elantra and Elantra GT. The TYC Radiator 13609 exemplifies this approach by combining durable aluminum construction with exacting dimensions and flow design.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiator in Hyundai Elantra and Elantra GT
• Solves overheating issues caused by inefficient cooling
• Addresses coolant leaks due to corrosion or physical damage
• Restores proper engine temperature regulation for improved performance
• Prevents engine damage related to cooling system failure

Installation Notes and Tips

Ensure the radiator hoses are compatible with the 33mm hose clamp connections for a secure fit. Verify the downflow configuration matches the vehicle’s cooling system layout. It is recommended to inspect and replace coolant and hoses during installation to maintain system integrity. Properly bleed the cooling system after installation to avoid air pockets and ensure optimal performance.

Quality Assurance and Warranty

The TYC Radiator 13609 is manufactured to meet industry standards for durability and performance. While specific warranty details are not provided, TYC products typically undergo rigorous quality control to ensure reliable operation in Hyundai Elantra and Elantra GT vehicles.
