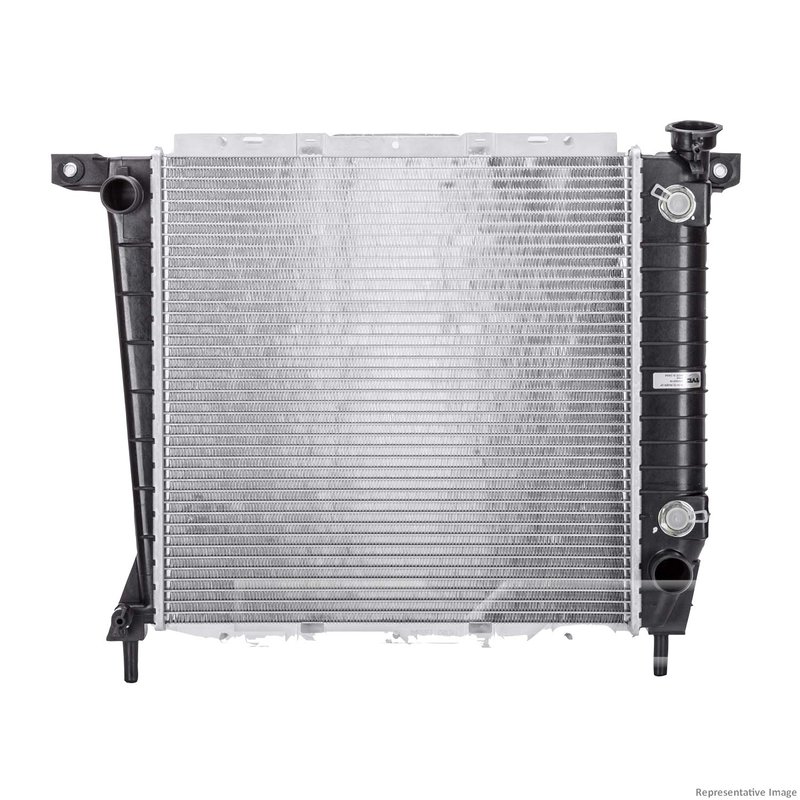

TYC 13630 Radiator
| Brand | TYC 13630 |
|---|---|
| Bottom Header | 1.94x29.46 |
| Core Height (in) | 28.19 |
| Core Length (in) | 14.96 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 11.81 |
| Top Header | 1.94x29.46 |
| Total Fin Row Count | 92 |
| Total Tube Count | 91 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric Oil Cooler |
| Tube Count (every 4") | 13 |
| Tube Width X Height | 26x1.5 |
| Product line | TYC Radiator |
| Fits | INFINITI · 19 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Concentric oil cooler. Built in to manage transmission fluid temperature.
Hose clamp connections. Simple inlet and outlet hookups for a secure fit.
Cross-references APDI 8013630, CryoMAX 13630 and Infiniti 21460-4HK0A for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for INFINITI Q50 and Q60
The TYC Radiator 13630 is a direct-fit cooling replacement for select INFINITI Q50 and INFINITI Q60 applications. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler for vehicles that rely on integrated engine and transmission cooling.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections
- Single-row core design
- Core dimensions: 28.19 in. height, 14.96 in. length, 1.02 in. thickness
- Inlet and outlet diameter: 1.38 in.
- TYC Radiator 13630 for OE-style cooling system replacement
Detailed Description
TYC part number 13630 is engineered for select 2016-2024 INFINITI Q50 and 2017-2022 INFINITI Q60 models, including primary-position applications listed in the fitment data. The radiator uses an aluminum core with a downflow flow configuration and integrated transmission oil cooling, making it a practical replacement when the factory cooling assembly needs service. This part cross-references Spectra Premium CU13630 for the same application.
The TYC Radiator line focuses on replacement cooling components built to match vehicle-specific fitment requirements. For INFINITI Q50 and INFINITI Q60 owners searching for a radiator replacement with integrated transmission cooling, TYC 13630 provides the core dimensions, connection style, and cooler configuration needed for a proper match.
Common Reasons for Replacement
- Radiator leakage from age, corrosion, or impact damage
- Transmission cooler circuit service on vehicles with integrated cooling
- Overheating caused by restricted coolant flow
- Damaged inlet or outlet connections
- Cooling performance loss from worn internal tubes or fins
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet diameter, and transmission cooler configuration before installation. Confirm hose clamp connection fitment and inspect related hoses, clamps, and coolant condition during replacement. Because this radiator includes a concentric transmission oil cooler, the transmission cooler lines should be checked for proper routing and sealing during service. Fits 2016-2019 INFINITI Q50, N/A. Fits 2017-2019 INFINITI Q60, N/A. Fits 2020-2024 INFINITI Q50, Primary. Fits 2020-2022 INFINITI Q60, Primary.
Quality Assurance
TYC manufactures replacement cooling components with application-specific specifications for vehicle fitment and system compatibility. Part number 13630 is built to match the listed INFINITI applications and cooling configuration requirements.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | INFINITI | Q50 | Sensory | Sedan | 3.0L | V6 | Primary | TYC Radiator |
| 2023 | INFINITI | Q50 | Sensory | Sedan | 3.0L | V6 | Primary | TYC Radiator |
| 2022 | INFINITI | Q50 | Sensory | Sedan | 3.0L | V6 | Primary | TYC Radiator |
| 2022 | INFINITI | Q60 | Luxe | Coupe | 3.0L | V6 | Primary | TYC Radiator |
| 2021 | INFINITI | Q50 | Signature Edition | Sedan | 3.0L | V6 | Primary | TYC Radiator |
| 2021 | INFINITI | Q60 | Luxe | Coupe | 3.0L | V6 | Primary | TYC Radiator |
| 2020 | INFINITI | Q50 | Edition 30 | Sedan | 3.0L | V6 | Primary | TYC Radiator |
| 2020 | INFINITI | Q60 | Luxe | Coupe | 3.0L | V6 | Primary | TYC Radiator |
| 2019 | INFINITI | Q50 | Luxe | — | 3.0L | V6 | N/A | TYC Radiator |
| 2019 | INFINITI | Q50 | Sport | — | 3.0L | V6 | N/A | TYC Radiator |
| 2019 | INFINITI | Q50 | Red Sport 400 | — | 3.0L | V6 | N/A | TYC Radiator |
| 2019 | INFINITI | Q60 | Luxe | — | 3.0L | V6 | N/A | TYC Radiator |
| 2018 | INFINITI | Q50 | Luxe | — | 3.0L | V6 | N/A | TYC Radiator |
| 2018 | INFINITI | Q50 | Sport | — | 3.0L | V6 | N/A | TYC Radiator |
| 2018 | INFINITI | Q50 | Red Sport 400 | — | 3.0L | V6 | N/A | TYC Radiator |
| 2018 | INFINITI | Q60 | Luxe | — | 3.0L | V6 | N/A | TYC Radiator |
| 2017 | INFINITI | Q50 | Premium | — | 3.0L | V6 | N/A | TYC Radiator |
| 2017 | INFINITI | Q60 | Premium | — | 3.0L | V6 | N/A | TYC Radiator |
| 2016 | INFINITI | Q50 | Premium | — | 3.0L | V6 | N/A | TYC Radiator |
