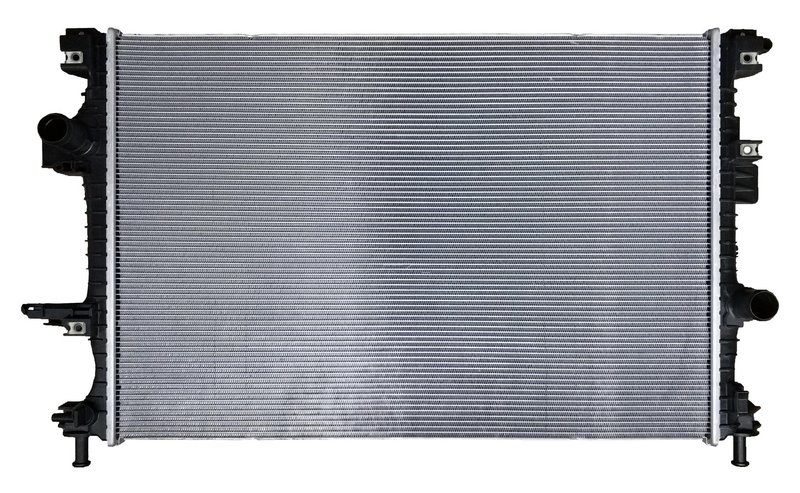

TYC 13658 Radiator - Front
| Brand | TYC 13658 |
|---|---|
| Position | Front |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | No |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.81x18.78 |
| Core Height (in) | 18.11 |
| Core Length (in) | 26.46 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 85 |
| Fin Wave Height (in) | 0.18 |
| Find Wave Pitch | 2.4 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.34 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.34 |
| Remarks | W/ gas eng |
| Top Header | 1.81x18.78 |
| Total Fin Row Count | 77 |
| Total Tube Count | 76 |
| Tube Count (every 4") | 17 |
| Tube Width X Height | 26x1.5 |
| Product line | TYC Radiator |
| Fits | Ford and Lincoln · 8 vehicles |
Aluminum core. Lightweight construction helps transfer heat efficiently.
Crossflow design. Promotes even coolant flow through the radiator.
Hose clamp connections. Simplifies hose attachment for a secure fit.
Cross-references APDI 8013658, CSF 3813 and DPI (DataPoint Inc) 13658 for the same application. See all 9.
TYC Radiator for Ford Fusion and Lincoln MKZ
The TYC Radiator 13658 is a front radiator assembly for gas engine applications in the 2017-2020 Ford Fusion and 2017-2020 Lincoln MKZ. Built with an aluminum core and crossflow design, it supports efficient coolant transfer for everyday driving and replacement service.
TYC Radiator 13658 is a direct-fit cooling component for drivers replacing a worn, leaking, or damaged radiator in these gas-powered sedans. It matches the listed hose clamp inlet and outlet connections and uses a single-row core layout for OE-style serviceability.
Key Features
- Aluminum core construction for lightweight heat transfer performance
- Crossflow radiator design
- Single-row core layout
- 1.34 in. inlet and outlet diameters with hose clamp connections
- Front-position radiator for gas engine applications
- No engine oil cooler included
- No transmission oil cooler included
Product Details
This TYC Radiator 13658 measures 26.46 in. core length, 18.11 in. core height, and 1.02 in. core thickness. The core uses aluminum construction with 76 total tubes and 77 total fin rows, helping maintain coolant flow and heat dissipation in the cooling system. It cross-references Ford HG9Z-8005-A and Lincoln HG9Z-8005-A for the same application.
Compatible with 2017-2020 Ford Fusion, front, gas engine, and 2017-2020 Lincoln MKZ, front, gas engine. This radiator is a practical replacement when servicing a vehicle with cooling-system wear, physical damage, or coolant seepage at the core or tanks.
Common Replacement Reasons
- Coolant leaks from a cracked or corroded radiator
- Overheating caused by restricted coolant flow
- Damaged fins, tubes, or header areas
- Loss of cooling efficiency in high-mileage vehicles
- Replacement after impact damage to the front cooling stack
Installation Notes
Verify gas engine fitment before ordering. Confirm inlet and outlet hose size, mounting points, and clearance with adjacent cooling components before installation. Inspect hoses, clamps, and coolant condition during replacement to help ensure a proper seal and reliable system operation.
Quality Assurance
TYC manufactures replacement cooling components for vehicle-specific applications, and this radiator is built to match the listed dimensions and connection style for the stated Ford Fusion and Lincoln MKZ fitment.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Ford | Fusion | 2.0L | L4 | GAS | Front | Remarks: w/ GAS Eng; TYC Radiator |
| 2020 | Lincoln | MKZ | 2.0L | L4 | GAS | Front | Remarks: w/ GAS Eng; TYC Radiator |
| 2019 | Ford | Fusion | 2.0L | L4 | GAS | Front | Remarks: w/ GAS Eng; TYC Radiator |
| 2019 | Lincoln | MKZ | 2.0L | L4 | GAS | Front | Remarks: w/ GAS Eng; TYC Radiator |
| 2018 | Ford | Fusion | 2.0L | L4 | GAS | Front | Remarks: w/ GAS Eng; TYC Radiator |
| 2018 | Lincoln | MKZ | 2.0L | L4 | GAS | Front | Remarks: w/ GAS Eng; TYC Radiator |
| 2017 | Ford | Fusion | 2.0L | L4 | GAS | Front | Remarks: w/ GAS Eng; TYC Radiator |
| 2017 | Lincoln | MKZ | 2.0L | L4 | GAS | Front | Remarks: w/ GAS Eng; TYC Radiator |
