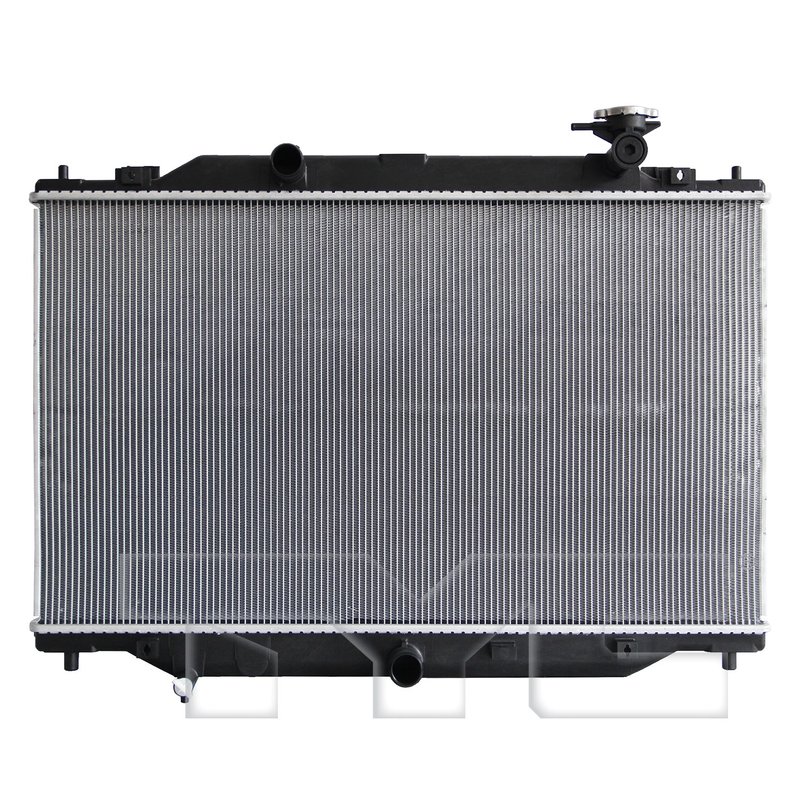

TYC 13659 Radiator
| Brand | TYC 13659 |
|---|---|
| Core Height (in) | 16.73 |
| Core Length (in) | 29.11 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.63 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 84 |
| Fin Wave Height (in) | 5 |
| Find Wave Pitch | 2.4 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Transmission Oil Cooler Included | No |
| Fits | Mazda · 12 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Downflow design. Supports steady coolant flow through a single-row radiator.
Hose clamp connections. Simplifies hose attachment for a secure, straightforward install.
Cross-references Mazda PYFW-15-200 and Partslink MA3010244 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for Mazda CX-5 Cooling Service
This TYC radiator is a direct-fit cooling replacement for the Mazda CX-5, covering 2017-2025 applications with the listed engine configuration. Built with an aluminum core and downflow design, TYC 13659 is made for OE-style fitment in routine radiator replacement service.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow flow configuration
- Hose clamp inlet and outlet connections
- Single-row core design
- Core dimensions: 16.73 in. height, 29.11 in. length, 0.63 in. thickness
- Fin count: 84 per 4 in.
- Fits Mazda CX-5 models from 2017-2025, including 2025 Mazda CX-5, N/A, w/o Cyl Deactivation
Detailed Description
TYC 13659 is a radiator built for Mazda CX-5 cooling system repair where the original unit has leaked, clogged, or lost efficiency. The aluminum core, downflow layout, and hose clamp connections support a straightforward OE-style replacement for 2017-2024 Mazda CX-5 models and the 2025 Mazda CX-5 without cylinder deactivation. This part cross-references Mazda PYFW-15-200 and Partslink MA3010244 for the same application.
Common Repair Uses
- Coolant leaks from a damaged or corroded radiator core
- Overheating caused by restricted coolant flow
- Reduced cooling performance from internal blockage or fin damage
- Replacement after impact damage to the front cooling stack
- Service repair for a Mazda CX-5 radiator with worn hose connections
Installation Notes and Tips
Verify vehicle configuration before installation. This radiator is listed for 2017-2024 Mazda CX-5 and for 2025 Mazda CX-5 without cylinder deactivation. Confirm inlet and outlet hose clamp connections, inspect hoses and clamps for wear, and flush the cooling system before installing the replacement radiator.
Quality Assurance
TYC manufactures replacement cooling components with OE-style fitment and application-specific dimensions. Part number 13659 is built to match the listed Mazda CX-5 applications and cross-reference numbers for direct replacement service.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2025 | Mazda | CX-5 | — | — | 2.5L | L4 | GAS | N/A | w/o Cyl Deactivation |
| 2024 | Mazda | CX-5 | 2.5 S | Sport Utility | 2.5L | L4 | — | N/A | — |
| 2023 | Mazda | CX-5 | 2.5 S | Sport Utility | 2.5L | L4 | — | N/A | — |
| 2022 | Mazda | CX-5 | 2.5 S Carbon Edition | Sport Utility | 2.5L | L4 | — | N/A | — |
| 2021 | Mazda | CX-5 | Grand Touring | Sport Utility | 2.5L | L4 | — | N/A | — |
| 2020 | Mazda | CX-5 | — | — | 2.5L | L4 | — | N/A | — |
| 2019 | Mazda | CX-5 | — | — | 2.5L | L4 | — | N/A | — |
| 2019 | Mazda | CX-5 | — | — | 2.0L | L4 | — | N/A | — |
| 2018 | Mazda | CX-5 | — | — | 2.0L | L4 | — | N/A | — |
| 2018 | Mazda | CX-5 | — | — | 2.5L | L4 | — | N/A | — |
| 2017 | Mazda | CX-5 | — | — | 2.0L | L4 | — | N/A | — |
| 2017 | Mazda | CX-5 | — | — | 2.5L | L4 | — | N/A | — |
