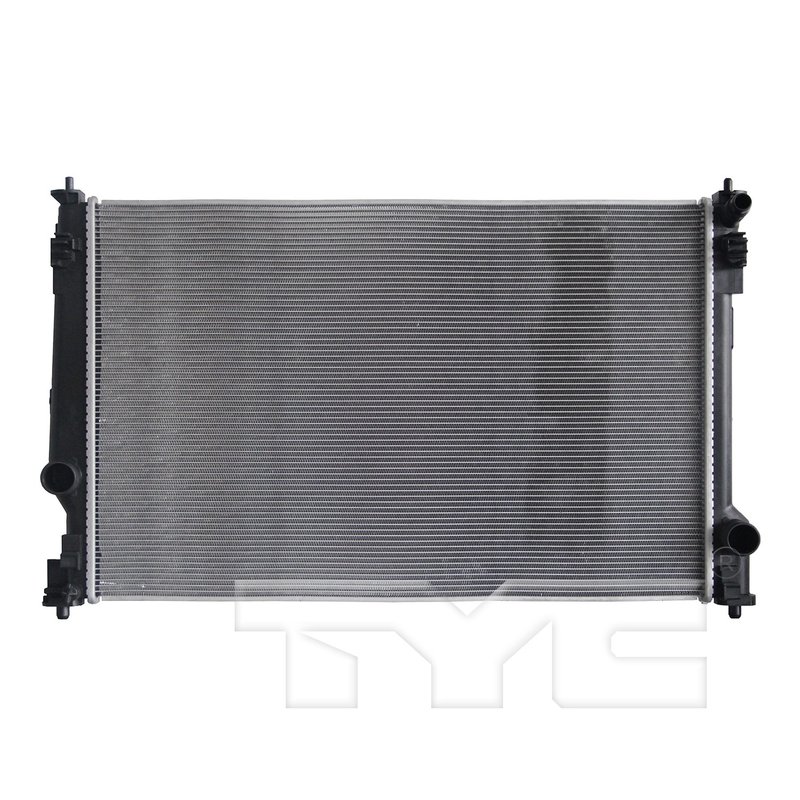

TYC 13670 Radiator - Front

Overview of the TYC Radiator 13670 for Lexus and Toyota Vehicles

The TYC Radiator 13670 is engineered to provide reliable cooling performance for select Lexus and Toyota models, including the Avalon, Camry, ES250, ES350, NX250, NX350, RAV4, and Venza. Designed with durable aluminum core material, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core Material: Aluminum for effective heat transfer
• Core Dimensions: 27.56 inches length, 0.63 inches height, 17.85 inches thickness
• Flow Configuration: Crossflow design for improved coolant circulation
• Connection Types: Hose clamp inlet and outlet with 1-1/2 inch diameter
• Fin Count: 75 fins every 4 inches with 5 inch fin wave height
• Tube Count: 69 tubes total with 16 tubes every 4 inches
• Headers: Top and bottom headers sized 18-1/4 x 1-3/4 inches
• Single row core construction

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering dependable cooling components that meet or exceed OEM specifications. This line emphasizes quality core materials and precise manufacturing tolerances to ensure compatibility and performance. The TYC Radiator 13670 exemplifies these standards with its aluminum core and crossflow design, tailored for specific Lexus and Toyota applications.

Technical Description and Features

This radiator features a robust aluminum core that enhances heat dissipation while maintaining structural integrity. The crossflow flow configuration optimizes coolant movement across the core, improving thermal efficiency. With 75 fins every 4 inches and a fin wave height of 5 inches, the radiator maximizes surface area for heat exchange. The inlet and outlet connections use hose clamps with a 1-1/2 inch diameter, facilitating secure and leak-resistant hose attachment. Both the top and bottom headers measure 18-1/4 by 1-3/4 inches, supporting the core and ensuring proper coolant distribution. The single-row core design balances cooling capacity with compact size, suitable for the specified Lexus and Toyota models.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiators in Lexus Avalon and Toyota Camry
• Solves overheating issues in Lexus ES250 and ES350 models
• Restores proper coolant flow in Toyota RAV4 and Venza vehicles
• Addresses radiator core corrosion or clogging in Lexus NX250 and NX350
• Improves engine cooling efficiency for extended vehicle performance

Installation Notes and Tips

Ensure the radiator is compatible with your vehicle’s make and model before installation. Use appropriate hose clamps for inlet and outlet connections to prevent leaks. Inspect and replace any worn hoses or seals during installation. Properly bleed the cooling system after installation to remove air pockets and maintain optimal coolant flow. Follow manufacturer torque specifications for mounting hardware to avoid damage.

Quality Assurance and Warranty

The TYC Radiator 13670 is manufactured to meet industry standards for durability and performance. Constructed with high-quality aluminum core material, it offers resistance to corrosion and thermal stress. While specific warranty details are not provided, TYC products typically adhere to strict quality control processes to ensure reliability in automotive cooling applications.
