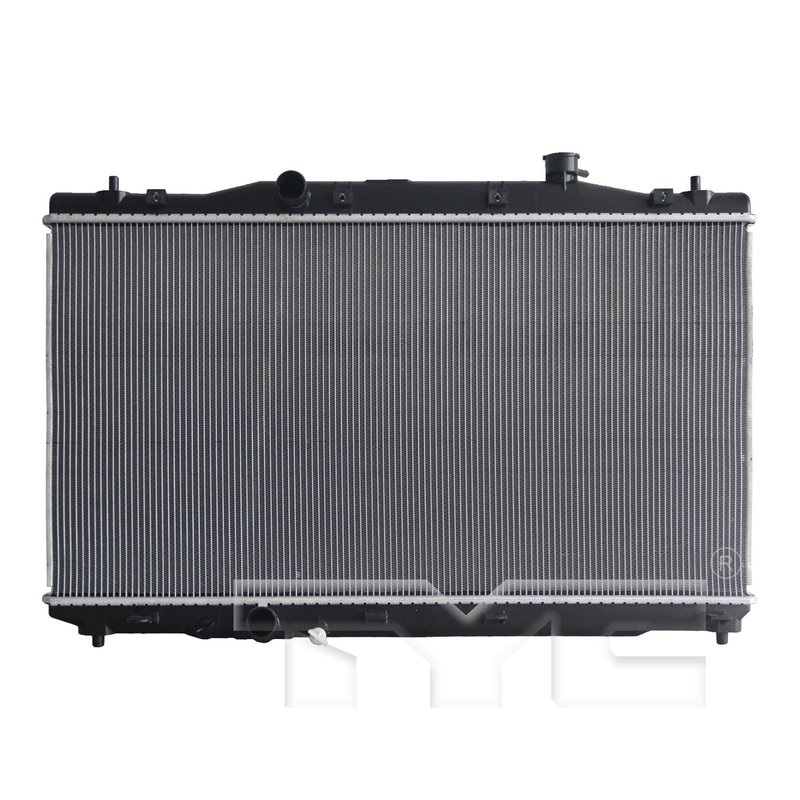

TYC 13674 Radiator - Front or Primary

Overview of the TYC Radiator 13674 for Honda Accord

The TYC Radiator 13674 is designed specifically for Honda Accord models, providing reliable cooling performance. Engineered with precise dimensions and durable materials, this radiator supports efficient engine temperature regulation.

• Core size: 15 3/4" x 29 7/8" x 1"
• Core height: 15.75 inches
• Core length: 29.88 inches
• Core thickness: 1.00 inch
• Top and bottom headers: 30 3/8" x 1 3/4"
• Inlet and outlet size: 1 1/4 inches
• Constructed from plastic and aluminum materials
• Single-row core design

Detailed Product Description

The TYC Radiator 13674 is part of the TYC Radiator product line, known for combining plastic and aluminum components to balance durability and weight. This radiator features a single-row core with a thickness of 1 inch, optimized for effective heat dissipation. The core dimensions of 15 3/4 inches in height and nearly 30 inches in length ensure compatibility with the cooling system of Honda Accord vehicles. Both the top and bottom headers measure 30 3/8 inches by 1 3/4 inches, providing structural support and secure mounting points. The inlet and outlet ports, each sized at 1 1/4 inches, facilitate proper coolant flow through the radiator.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiators in Honda Accord models
• Resolves engine overheating caused by inefficient cooling
• Addresses coolant leaks from cracked or corroded radiator cores
• Improves cooling system performance after radiator core clogging
• Restores proper coolant circulation with correctly sized inlet and outlet ports

Installation Notes and Tips

When installing the TYC Radiator 13674, ensure the radiator core dimensions and header sizes match the vehicle specifications. Verify that the 1 1/4 inch inlet and outlet ports align with existing hoses to prevent leaks. Properly secure the radiator using the mounting points on the top and bottom headers. It is recommended to flush the cooling system before installation to remove debris and contaminants.

Quality Assurance and Warranty

TYC Radiator products are manufactured using a combination of plastic and aluminum materials to meet industry standards for durability and heat dissipation. The TYC Radiator 13674 undergoes quality control inspections to ensure fitment accuracy and performance. Warranty details are provided by the manufacturer and should be confirmed at the time of purchase.
