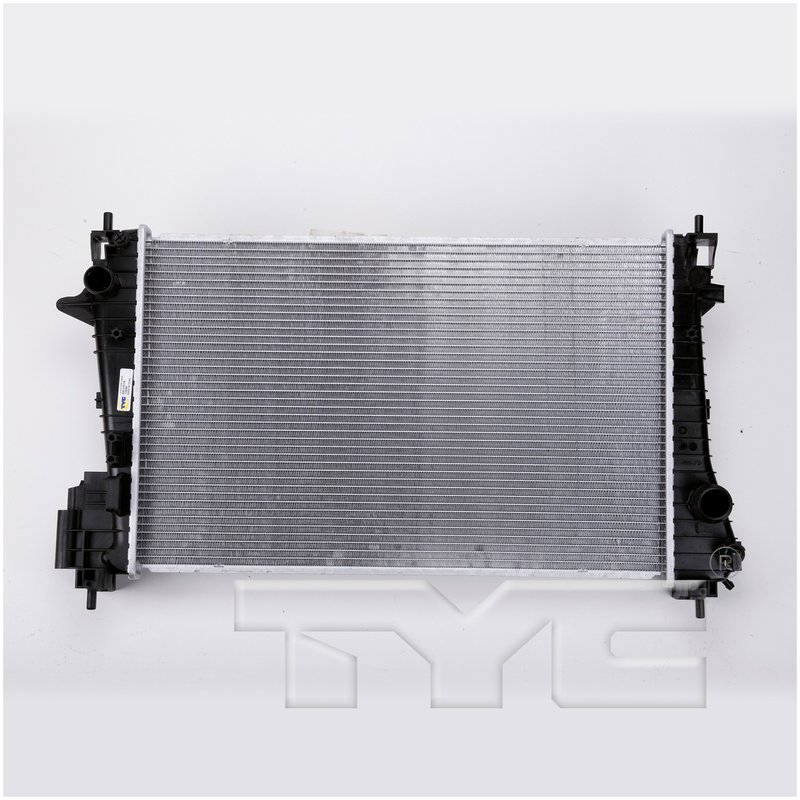

TYC 13680 Radiator

Overview of the TYC Radiator 13680 for Chevrolet Sonic

The TYC Radiator 13680 is designed specifically for Chevrolet Sonic models, providing reliable engine cooling with its durable aluminum core. This radiator supports efficient heat dissipation to maintain optimal engine temperature during operation.

• Core material constructed from aluminum for effective heat transfer
• Core dimensions: 15.28 inches height, 24.41 inches length, and 0.63 inches thickness
• Crossflow design with 40 tubes and 41 fin rows for enhanced cooling performance
• Inlet connection uses a hose clamp with a 1.36-inch diameter
• Outlet connection features a quick connect spring lock with a 1.52-inch diameter
• Single-row tube configuration with 75 fins every 4 inches
• Top and bottom headers measure 1.77 by 16.69 inches

Detailed Features of the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering quality cooling components engineered for specific vehicle applications. The 13680 radiator exemplifies this approach by combining a lightweight aluminum core with a crossflow flow configuration, which optimizes coolant circulation and heat exchange. This radiator is built to meet the cooling demands of the Chevrolet Sonic, ensuring compatibility and performance without including transmission or engine oil coolers.

Technical Description and Specifications

This radiator features a crossflow design that promotes efficient coolant flow across the core, which consists of 40 tubes arranged in a single row. The core's aluminum construction aids in rapid heat dissipation, while the 75 fins per 4 inches and a total of 41 fin rows increase surface area for improved cooling. The fin wave height is 0.31 inches with a wave pitch of 2.7, contributing to effective airflow management. The inlet and outlet connections are designed for secure attachment, with a hose clamp inlet and a quick connect spring lock outlet, sized at 1.36 and 1.52 inches respectively. Both the top and bottom headers measure 1.77 by 16.69 inches, providing structural support and coolant distribution.

Common Applications and Problem Resolution

• Replacement for damaged or leaking radiators in Chevrolet Sonic vehicles
• Solves overheating issues caused by inefficient or clogged radiators
• Addresses coolant leaks due to corrosion or physical damage
• Restores proper engine temperature regulation for improved performance
• Prevents engine damage related to inadequate cooling system function

Installation Notes and Tips

When installing the TYC Radiator 13680, ensure the vehicle is fully cooled before removal of the old radiator. Verify that the hose clamp inlet and quick connect outlet fit securely to prevent leaks. Properly bleed the cooling system after installation to remove air pockets and maintain optimal coolant flow. It is recommended to inspect hoses and clamps for wear and replace if necessary during installation.

Quality Assurance and Warranty Information

TYC Radiators are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. While specific warranty details for part number 13680 are not provided here, TYC typically offers coverage against defects in materials and workmanship. Consult the product documentation or manufacturer for exact warranty terms.
