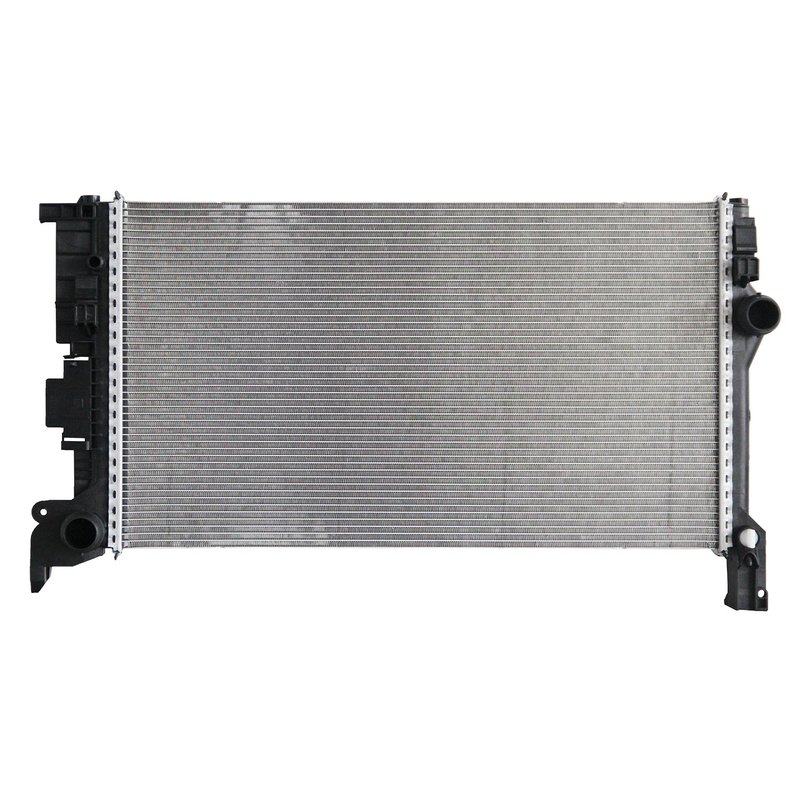

TYC 13699 Radiator - Front or Primary

Overview of TYC Radiator for Volvo XC90

The TYC Radiator part number 13699 is designed specifically for the Volvo XC90, providing reliable cooling performance. Engineered with a crossflow configuration and plastic tanks, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core material thickness: 1.02 inches
• Plastic tank construction for durability
• Core dimensions: 25.75 inches height x 14.99 inches length x 1.02 inches thickness
• Crossflow flow configuration for effective coolant circulation
• Springlock inlet and outlet connections with 38.5-inch diameter
• Single-row core with 48 tubes and 92 fins per 4 inches
• Fin wave height of 6.3 inches and fin wave pitch of 2.2 inches

Detailed Product Description

This TYC Radiator (part number 13699) is built to meet the cooling demands of the Volvo XC90. The radiator features a single-row core design with 48 tubes and 92 fins every 4 inches, which enhances heat exchange efficiency. The core measures 25.75 inches in height and 14.99 inches in length, with a thickness of 1.02 inches, providing a balanced size for optimal cooling capacity. The plastic tank material reduces weight while maintaining structural integrity. The crossflow flow configuration ensures coolant moves horizontally through the radiator, improving heat dissipation. Both inlet and outlet connections use springlock fittings with a diameter of 38.5 inches, facilitating secure and leak-resistant hose attachment.

The TYC Radiator product line focuses on delivering reliable cooling components that meet OEM specifications. This radiator is engineered to provide consistent performance and durability, making it a suitable replacement for the Volvo XC90’s original cooling system.

Common Applications and Issues Addressed

• Overheating engine due to radiator failure
• Coolant leaks from damaged or cracked radiator tanks
• Reduced cooling efficiency from clogged or corroded cores
• Inadequate coolant flow caused by faulty radiator design
• Replacement of worn or damaged radiator in Volvo XC90 models

Installation Notes and Tips

• Ensure compatibility with Volvo XC90 before installation
• Inspect and replace radiator hoses and clamps as needed
• Flush the cooling system to remove debris before installing the new radiator
• Check for proper springlock connection engagement to prevent leaks
• Refill coolant to manufacturer specifications and bleed air from the system

Quality Assurance and Warranty

TYC Radiator part number 13699 is manufactured to meet industry standards for durability and performance. While specific warranty details are not provided, TYC products typically undergo rigorous quality control to ensure reliability in automotive cooling applications.
