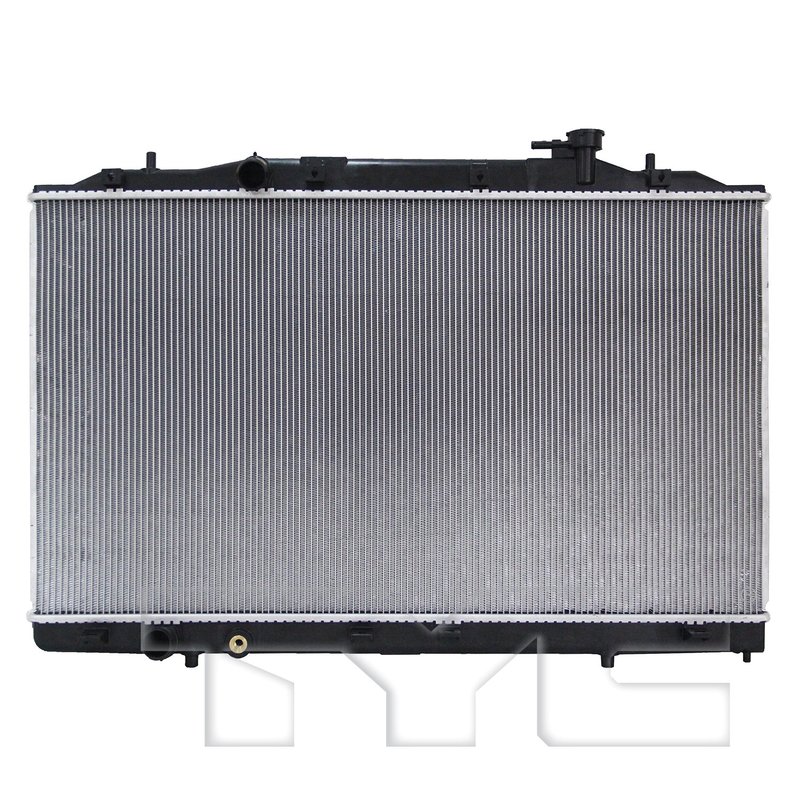

TYC 13761 Radiator

Overview of the TYC Radiator 13761 for Mazda 3

The TYC Radiator 13761 is designed specifically for the Mazda 3, providing reliable engine cooling with a durable aluminum core. This radiator supports efficient heat dissipation to maintain optimal engine temperature during operation.

• Core Material: Aluminum for effective heat transfer
• Core Dimensions: 14.76 inches height, 29 inches length, 0.63 inches thickness
• Flow Configuration: Downflow design for consistent coolant circulation
• Connection Types: Hose clamp inlet and outlet with 33.5 mm diameter
• Total Tube Count: 88 tubes with 12 tubes every 4 inches
• Fin Wave Height: 6.3 inches with a 2.4-inch wave pitch
• Manufactured in Mexico

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. The TYC Radiator 13761 features a robust aluminum core and precise flow configuration, ensuring compatibility and performance for the Mazda 3. This line emphasizes durability and efficient heat exchange to support engine longevity.

Detailed Product Description

This radiator is engineered with an aluminum core measuring 14.76 inches in height, 29 inches in length, and 0.63 inches in thickness, providing a solid structure for heat dissipation. The downflow flow configuration optimizes coolant movement through the 88 tubes, each spaced with a 2.4-inch fin wave pitch and a fin wave height of 6.3 inches. Both the inlet and outlet connections use hose clamps with a diameter of 33.5 mm, ensuring secure and leak-free installation. The radiator does not include transmission or engine oil coolers, focusing solely on engine coolant management.

Common Applications and Issues Addressed

• Replacement for damaged or leaking radiator in Mazda 3 vehicles
• Resolves engine overheating caused by inefficient cooling
• Addresses coolant leaks from corroded or cracked radiator cores
• Improves cooling system performance after radiator clogging or blockage
• Supports engine temperature regulation for consistent vehicle operation

Installation Notes and Tips

Ensure the radiator is compatible with your specific Mazda 3 model year before installation. Use appropriate hose clamps for the 33.5 mm inlet and outlet connections to prevent leaks. Inspect and replace any worn hoses or seals during installation. Properly bleed the cooling system after installation to remove air pockets and maintain optimal coolant flow.

Quality Assurance and Warranty

The TYC Radiator 13761 is manufactured to meet industry standards with quality materials and construction. While specific warranty details are not provided, TYC products typically undergo rigorous testing to ensure durability and performance. Confirm warranty coverage with the product documentation or supplier.
