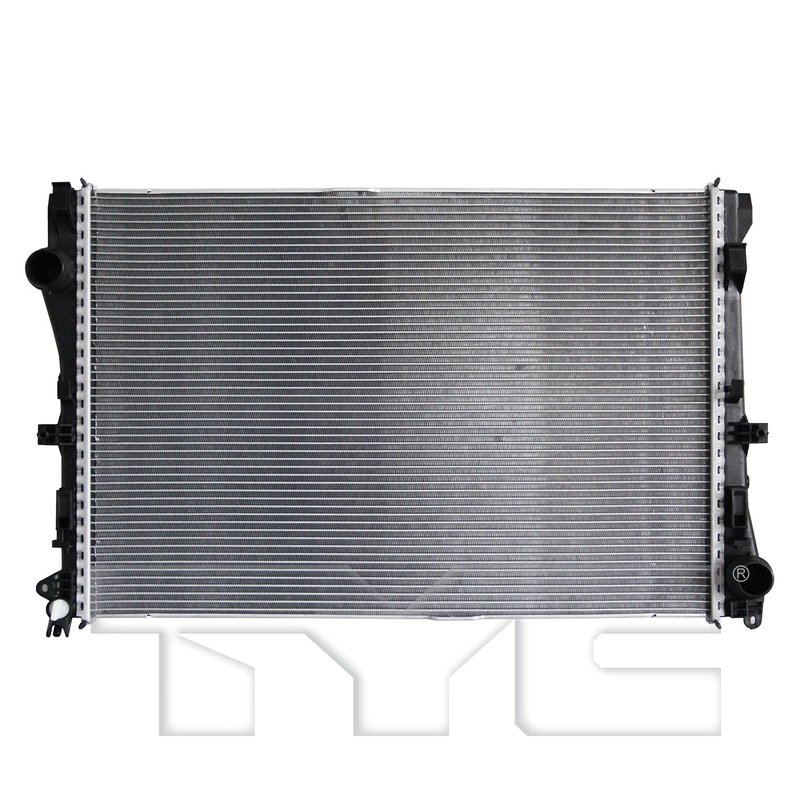

TYC 13802 Radiator
| Brand | TYC 13802 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Core Height (in) | 17.57 |
| Core Length (in) | 25.24 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 54 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 2.1 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Spring lock |
| Inlet Diameter (in) | 1.52 |
| No. Of Rows | 1 |
| Outlet Connection Type | Spring lock |
| Outlet Diameter (in) | 1.52 |
| Toc Inlet Type | 0 |
| Toc Outlet Diameter (in) | 0 |
| Toc Outlet Type | 0 |
| Total Tube Count | 53 |
| Tube Width X Height | 16x53 |
| Fits | Mercedes-Benz · 6 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Plate oil cooler included. Adds transmission fluid cooling in one integrated radiator assembly.
Crossflow design. Supports even coolant flow through a single-row core.
Cross-references 099 500 17 03 and MB3010184 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for Mercedes-Benz C300 and C43 AMG
This TYC radiator, part number 13802, is built for select Mercedes-Benz applications with aluminum core construction and an integrated transmission oil cooler. It matches the cooling and transmission-fluid routing needs of 2019-2023 Mercedes-Benz C300 and 2023 Mercedes-Benz C43 AMG models.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow design for OE-style cooling layout
- Transmission oil cooler included with plate oil cooler design
- Single-row core with 53 total tubes
- Spring lock inlet and outlet connections
- Core dimensions: 17.57 in. height, 25.24 in. length, 0.63 in. thickness
- Inlet and outlet diameter: 1.52 in.
Product Details
TYC 13802 is a radiator assembly engineered around the factory-style cooling configuration used in select Mercedes-Benz C300 and Mercedes-Benz C43 AMG vehicles. The aluminum core, crossflow layout, and plate-style transmission oil cooler support stable engine temperature control while also addressing automatic transmission fluid cooling through the integrated cooler circuit. With spring lock connections and OE-matched dimensions, this radiator is suited for direct replacement service where the original unit has leaked, clogged, or lost cooling efficiency.
This part cross-references Mercedes-Benz OE numbers 099 500 17 03 and MB3010184 for the same application.
Common Problems This Radiator Can Address
- Coolant leaks from a damaged or corroded radiator core
- Overheating caused by restricted coolant flow
- Transmission fluid temperature issues related to a failing cooler circuit
- Physical damage to the radiator tanks or core
- Reduced cooling performance from age-related wear
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet connection style, and transmission cooler routing before installation. Flush the cooling system and inspect hoses, clamps, and spring lock fittings for wear or contamination. Confirm proper coolant fill and bleed procedure after installation to help prevent trapped air in the system. This radiator is listed for 2019-2023 Mercedes-Benz C300 and 2023 Mercedes-Benz C43 AMG applications.
Quality Assurance
TYC manufactures replacement cooling components to meet vehicle-specific fitment requirements and OE-style specifications. Part number 13802 is built for the listed Mercedes-Benz applications with the correct core size, connection type, and integrated transmission oil cooler configuration.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Mercedes-Benz | C300 | 4Matic | Convertible | 2.0L | L4 | — |
| 2023 | Mercedes-Benz | C43 AMG | 4Matic | Coupe | 2.0L | L4 | — |
| 2022 | Mercedes-Benz | C300 | 4Matic | Coupe | 2.0L | L4 | — |
| 2021 | Mercedes-Benz | C300 | Base | Convertible | 2.0L | L4 | — |
| 2020 | Mercedes-Benz | C300 | 4Matic | Convertible | 2.0L | L4 | — |
| 2019 | Mercedes-Benz | C300 | 4Matic | Coupe | 2.0L | L4 | — |
| No rows match your filter. | |||||||
