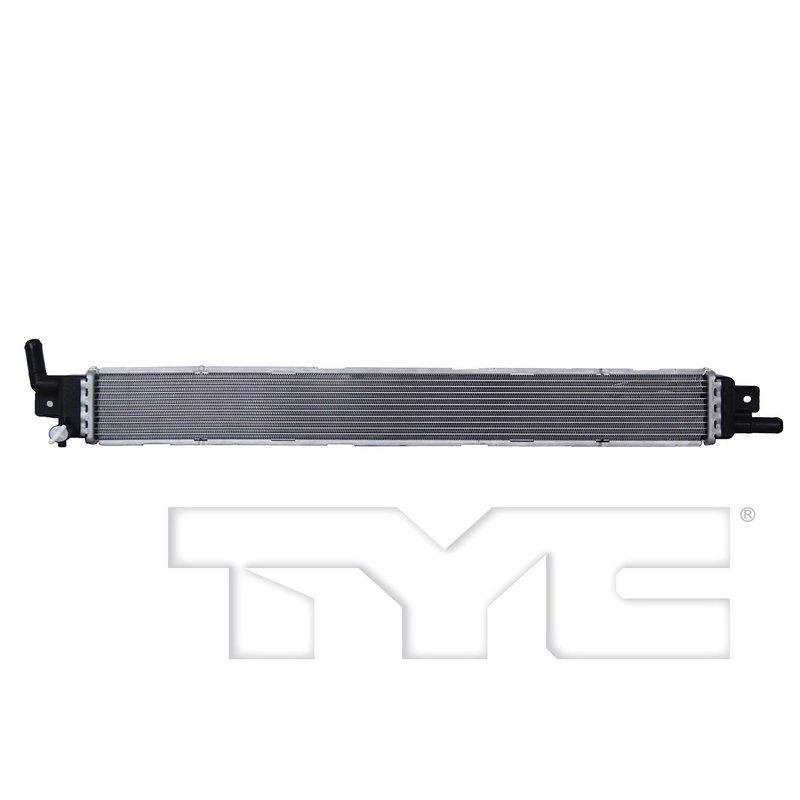

TYC 13831 Drive Motor Inverter Cooler

Overview of TYC Drive Motor Inverter Cooler 13831

The TYC Drive Motor Inverter Cooler 13831 is engineered to provide reliable cooling performance for select Hyundai and Kia vehicles. Designed with a durable aluminum core, this component helps maintain optimal inverter temperatures for efficient vehicle operation.

• Core material constructed from aluminum for effective heat dissipation
• Core dimensions: 25.04 inches length, 2.76 inches height, and 1.02 inches thickness
• Crossflow flow configuration enhances cooling efficiency
• Inlet and outlet connections use hose clamps with 17.5-inch diameters
• Includes 10 total tubes with 15 tubes every 4 inches for improved coolant flow
• Fin wave height of 5 inches and fin wave pitch of 2.4 inches for optimized airflow

Detailed Product Description

The TYC Drive Motor Inverter Cooler 13831 is specifically designed for use in Hyundai Optima and Sonata models, as well as compatible Kia vehicles. Its aluminum core construction ensures effective heat transfer, which is critical for maintaining the inverter motor’s temperature during operation. The cooler features a crossflow design that allows coolant to pass efficiently through the 10 tubes, each spaced with 15 tubes every 4 inches, maximizing cooling capacity. The fin wave height and pitch are engineered to optimize airflow across the core, further enhancing thermal management.

Compatible Vehicles and Applications

This inverter cooler is compatible with the following makes and models:

• Hyundai Optima
• Hyundai Sonata
• Kia models compatible with the same inverter cooling system

It is intended for use in the inverter cooling system to regulate temperature and prevent overheating of the drive motor inverter.

Common Issues Addressed by This Part

• Overheating of the drive motor inverter during extended operation
• Reduced inverter efficiency due to inadequate cooling
• Coolant leaks from damaged or worn inverter coolers
• Corrosion or clogging within the cooling tubes affecting flow
• Failure of the inverter cooling system leading to vehicle performance issues

Installation Notes and Tips

• Ensure compatibility with your specific Hyundai or Kia model before installation
• Use proper hose clamps for inlet and outlet connections sized at 17.5 inches diameter
• Inspect surrounding components for wear or damage during replacement
• Flush the cooling system to remove debris before installing the new cooler
• Follow manufacturer torque specifications for mounting hardware

Quality Assurance and Warranty

TYC manufactures this Drive Motor Inverter Cooler 13831 to meet or exceed OEM standards for durability and performance. The aluminum core construction provides corrosion resistance and long service life. While specific warranty details may vary, TYC typically offers coverage against defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
