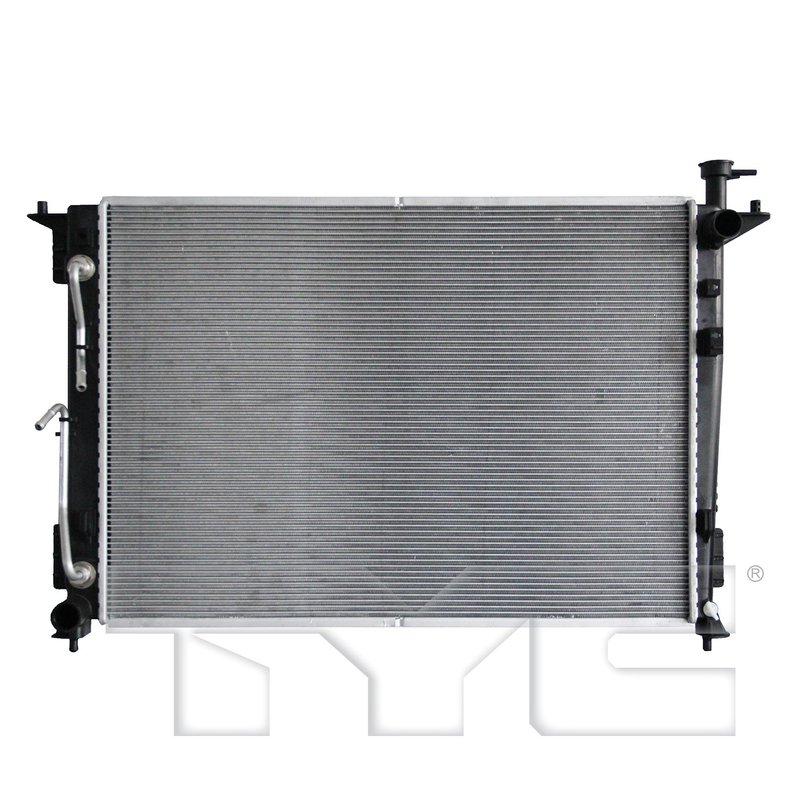

TYC 13863 Radiator

Overview of TYC Radiator 13863 for Kia Telluride

The TYC Radiator 13863 is engineered specifically for the Kia Telluride, providing reliable cooling performance with integrated engine oil cooling. Designed with durable aluminum core material, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core Material: Aluminum for enhanced heat transfer and corrosion resistance
• Engine Oil Cooler Included for improved engine temperature regulation
• Core Dimensions: 19.76 inches height, 28.35 inches length, 1.02 inches thickness
• Crossflow flow configuration for effective coolant circulation
• Inlet and Outlet Connection: Hose clamp type with 35mm diameter
• Single-row design with 71 total tubes and 92 fins per 4 inches
• Fin wave height of 5 inches and pitch of 2.2 for optimized airflow

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. This line includes radiators designed with precision core dimensions and integrated features such as engine oil coolers to support vehicle-specific cooling needs. The TYC Radiator 13863 exemplifies this approach by combining a robust aluminum core with a crossflow design tailored for the Kia Telluride.

Technical Description and Features

This radiator features a single-row aluminum core measuring 19.76 inches in height, 28.35 inches in length, and 1.02 inches thick. The crossflow configuration enhances coolant flow efficiency, while the 71 tubes and 92 fins per 4 inches maximize heat exchange. The fin wave height of 5 inches and pitch of 2.2 contribute to improved airflow dynamics. Both inlet and outlet connections utilize 35mm hose clamp fittings, ensuring secure and compatible installation with the Kia Telluride cooling system. Additionally, the integrated engine oil cooler supports engine temperature management without including a transmission oil cooler.

Compatible Applications and Common Issues Addressed

• Replacement for damaged or leaking radiators in Kia Telluride models
• Resolves engine overheating caused by inefficient cooling
• Addresses coolant leaks due to corrosion or physical damage
• Improves engine oil temperature control with built-in oil cooler
• Restores proper coolant flow and pressure in the cooling system

Installation Notes and Tips

Installation requires proper handling of the hose clamp inlet and outlet connections sized at 35mm. Ensure all coolant is drained before removal of the old radiator. Verify compatibility with the Kia Telluride model year and engine configuration. Inspect hoses and clamps for wear and replace if necessary to prevent leaks. Follow manufacturer torque specifications when securing the radiator to avoid damage.

Quality Assurance and Warranty

The TYC Radiator 13863 is manufactured to meet OEM standards for durability and performance. Constructed with corrosion-resistant aluminum, it is designed for long service life under normal operating conditions. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
