Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

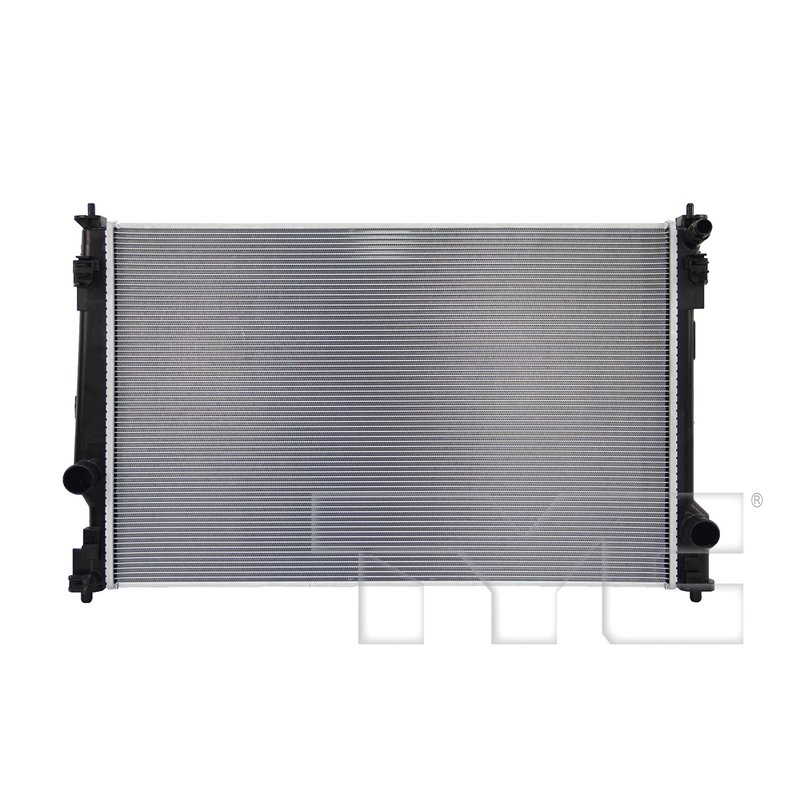

TYC 13887 Radiator
| Brand | TYC 13887 |
|---|---|
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Height (in) | 17.850000000000001 |
| Core Length (in) | 27.56 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 81 |
| Fin Height | 5 |
| Find Wave Pitch | 2.5 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter | 38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diamter | 38 |
| Total Fin Row Count | 70 |
| Total Tube Count | 69 |
| Fits | Lexus and Toyota · 12 vehicles |
Aluminum core. Lightweight construction helps transfer heat efficiently.
Crossflow design. Promotes even coolant flow through the radiator.
Hose clamp connections. Simplifies installation with secure inlet and outlet attachment.
Cross-references 16400-31690 and TO3010380 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for Lexus NX350, NX350h, and Toyota RAV4 Prime
TYC 13887 is a crossflow radiator built with an aluminum core and plastic tanks for direct-fit cooling system service on select Lexus and Toyota applications. It is listed for 2021-2024 Toyota RAV4 Prime, 2022-2024 Lexus NX350h with towing package, and 2022-2023 Lexus NX350, plus 2024-2025 Lexus NX350 with towing package.
Key Features
- Aluminum core with plastic tank construction
- Crossflow design for OE-style coolant routing
- Core dimensions: 17.85 in. height, 27.56 in. length, 1.02 in. thickness
- Single-row design with 69 total tubes and 70 total fin rows
- Inlet and outlet connection type: hose clamp
- 38 mm inlet and 38 mm outlet diameters
- Fin density: 81 fins per 4 in., with 5 in. fin height and 2.5 wave pitch
- Cross-references TYC 13887 for the same application
Detailed Description
TYC 13887 is a replacement radiator engineered around the listed core size, tube count, and crossflow layout to match the cooling system requirements of select Lexus NX350, Lexus NX350h, and Toyota RAV4 Prime models. The aluminum core supports heat transfer, while the plastic tanks and hose clamp inlet/outlet connections follow common OE-style radiator construction for these applications. This part cross-references Toyota 16400-31690 and TO3010380 for the same application.
Compatible vehicle coverage includes Fits 2024-2025 Lexus NX350, N/A, w/ Towing Pkg; Fits 2022-2024 Lexus NX350h, N/A, w/ Towing Pkg; Fits 2021-2024 Toyota RAV4 Prime, N/A; and Fits 2022-2023 Lexus NX350, N/A. TYC 13887 is a direct-fit radiator option for buyers searching for a Lexus NX350 radiator, Lexus NX350h radiator with towing package, or Toyota RAV4 Prime radiator by part number.
Common Cooling System Issues Addressed
- Cracked or leaking radiator tanks
- Restricted coolant flow from an aging core
- Corrosion or tube damage in the radiator assembly
- Overheating caused by reduced heat exchange efficiency
- Fitment replacement needs after radiator failure on Lexus NX350, NX350h, or Toyota RAV4 Prime models
Installation Notes and Tips
Verify the vehicle’s year, model, and towing-package application before installation. Confirm the 38 mm hose clamp inlet and outlet connections match the existing cooling system layout, and transfer any vehicle-specific components required by the application. After installation, refill with the correct coolant specification and bleed the system thoroughly to remove trapped air.
Quality Assurance
TYC manufactures this radiator to match the listed OE-style dimensions and connection types for the specified Lexus and Toyota fitments. Part number 13887 is cataloged for direct replacement use on the applications shown above.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|---|---|
| 2026 | Lexus | NX350 | — | — | 2.4L | L4 | GAS | w/ Towing Pkg |
| 2025 | Lexus | NX350 | — | — | 2.4L | L4 | GAS | w/ Towing Pkg |
| 2024 | Lexus | NX350 | Base | Sport Utility | 2.4L | L4 | — | w/ Towing Pkg |
| 2024 | Lexus | NX350h | Luxury | Sport Utility | 2.5L | L4 | — | w/ Towing Pkg |
| 2024 | Toyota | RAV4 Prime | — | — | 2.5L | L4 | PLUG-IN HYBRID EV-GAS (PHEV) | — |
| 2023 | Lexus | NX350 | Base | Sport Utility | 2.4L | L4 | — | — |
| 2023 | Lexus | NX350h | Premium | Sport Utility | 2.5L | L4 | — | w/ Towing Pkg |
| 2023 | Toyota | RAV4 Prime | XSE | Sport Utility | 2.5L | L4 | — | — |
| 2022 | Lexus | NX350 | Base | Sport Utility | 2.4L | L4 | — | — |
| 2022 | Lexus | NX350h | Luxury | Sport Utility | 2.5L | L4 | — | w/ Towing Pkg |
| 2022 | Toyota | RAV4 Prime | XSE | Sport Utility | 2.5L | L4 | — | — |
| 2021 | Toyota | RAV4 Prime | XSE | Sport Utility | 2.5L | L4 | — | — |
