Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

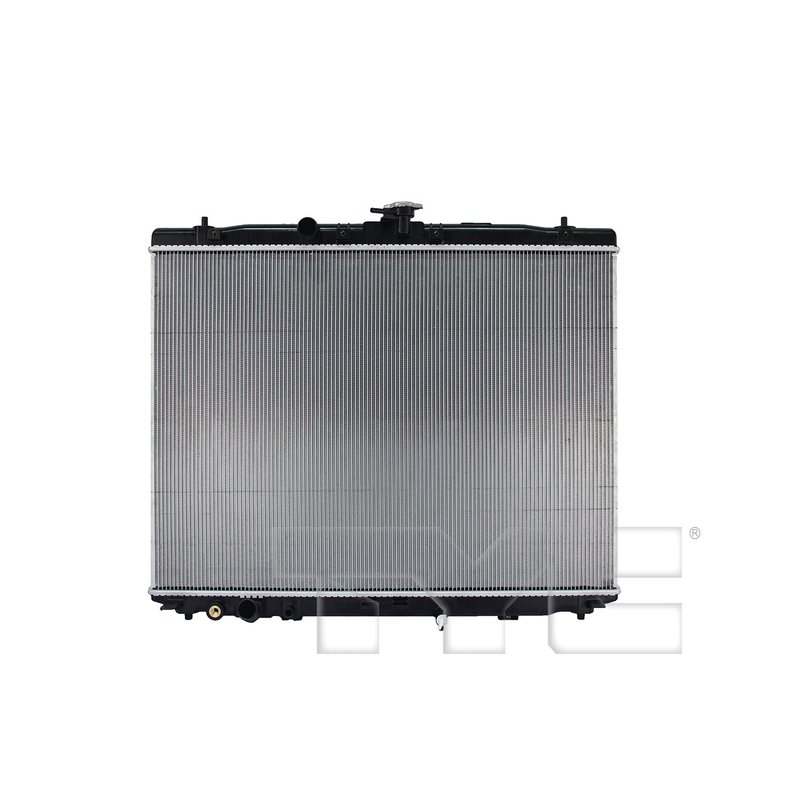

TYC 13919 Radiator
| Brand | TYC 13919 |
|---|---|
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Height (in) | 29.63 |
| Core Length (in) | 21.65 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 85 |
| Fin Height | 5 |
| Find Wave Pitch | 2.4 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter | 32 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diamter | 32 |
| Total Fin Row Count | 116 |
| Total Tube Count | 115 |
| Fits | Acura · 4 vehicles |
Aluminum core. Plastic tanks help balance strength with lighter weight.
Downflow design. Supports efficient coolant flow through a single-row radiator.
Hose clamp connections. Simplify hose attachment at both inlet and outlet ports.
Cross-references 19010-61A-A01 and AC3010159 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for Acura MDX Cooling Service
TYC 13919 is a direct-fit radiator for 2022-2025 Acura MDX applications. Built with an aluminum core and plastic tanks, it is configured as a downflow unit with hose clamp inlet and outlet connections for straightforward replacement in the cooling system.
Key Features
- Aluminum core with plastic tank construction
- Downflow flow configuration
- Core dimensions: 29.63 in. height, 21.65 in. length, 1.02 in. thickness
- Single-row design with 115 total tubes and 116 total fin rows
- Inlet and outlet connections use 32 mm hose clamp fittings
- Fin density: 85 fins every 4 in., with 5 mm fin height and 2.4 mm wave pitch
- Cross-reference part numbers include 19010-61A-A01 and AC3010159
Detailed Description
This TYC radiator, part number 13919, is engineered for the Acura MDX cooling system and matches the listed 2022-2025 fitment. The aluminum core supports efficient heat transfer, while the plastic tank design follows a common OE-style radiator layout for modern passenger vehicles. With a downflow configuration and 32 mm hose clamp inlet and outlet connections, this radiator is specified for direct replacement service on Acura MDX models in the confirmed year range. TYC 13919 is a practical choice when replacing a leaking, clogged, or damaged radiator on a 2022-2025 Acura MDX.
What It Helps Fix
- Coolant leaks from cracked tanks or damaged seams
- Restricted coolant flow from internal buildup or corrosion
- Overheating caused by reduced radiator efficiency
- Physical damage to the radiator core from road debris or impact
- Cooling performance loss in Acura MDX radiator replacement service
Installation Notes and Tips
Verify hose diameter, mounting points, and connection style before installation. Drain the cooling system fully, inspect hoses and clamps for wear, and flush the system if contamination is present. After installation, refill with the correct coolant specification and bleed air from the system according to Acura service procedures. This part cross-references Honda/Acura OE numbers 19010-61A-A01 and AC3010159 for the same application.
Quality Assurance
TYC manufactures replacement cooling components with OE-style fitment focus and application-specific dimensions. Part number 13919 is listed for confirmed Acura MDX fitment from 2022 through 2025.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2025 | Acura | MDX | SH-AWD | Sport Utility | 3.5L | V6 | — |
| 2024 | Acura | MDX | Advance | Sport Utility | 3.5L | V6 | — |
| 2023 | Acura | MDX | Advance | Sport Utility | 3.5L | V6 | — |
| 2022 | Acura | MDX | Base | Sport Utility | 3.5L | V6 | — |
| No rows match your filter. | |||||||
