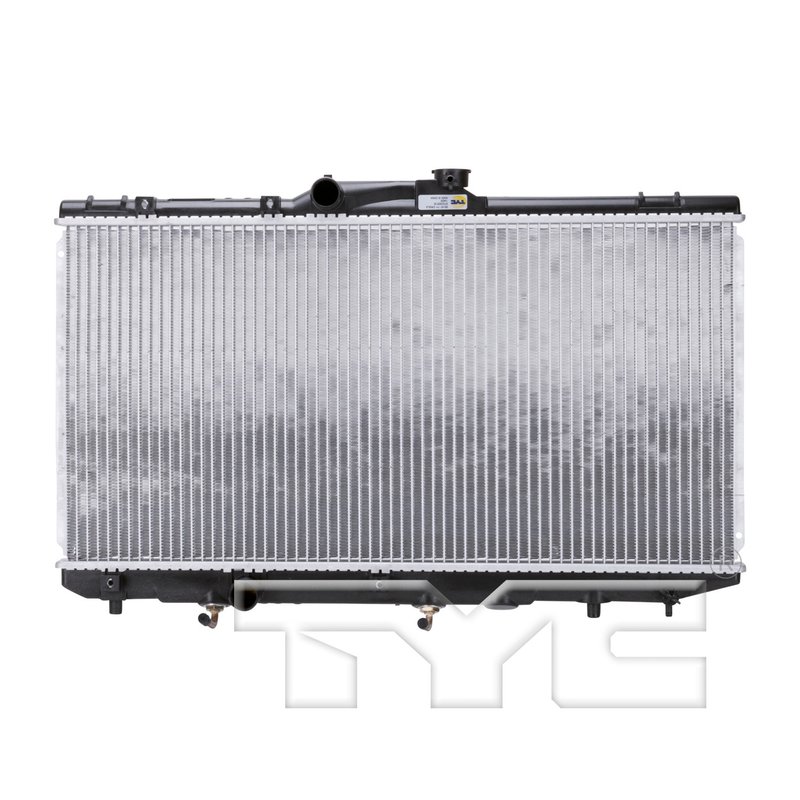

TYC 1409 Radiator
| Brand | TYC 1409 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.96x28.21 |
| Core Height (in) | 27.2 |
| Core Length (in) | 13.78 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.24 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.24 |
| Toc Distance (in) | 8.86 |
| Top Header | 1.96x28.21 |
| Total Fin Row Count | 63 |
| Total Tube Count | 62 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Geo and Toyota · 21 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Concentric oil cooler. Built with an integrated transmission oil cooler for added cooling support.
Hose clamp connections. Simplifies hose attachment for a straightforward replacement.
Cross-references ACDelco 20799, APDI 8011409 and CSF 2148 for the same application. See all 14.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Corolla and Prizm
The TYC Radiator 1409 is a direct-fit cooling replacement for select 1993-1997 Geo Prizm and Toyota Corolla applications. Built with an aluminum core and a downflow design, it also includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling needs.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections
- Core dimensions: 27.2 in height, 13.78 in length, 1.02 in thickness
- Fits select 1993-1997 Toyota Corolla and Geo Prizm applications
Product Details
TYC Radiator 1409 is engineered for vehicles that use a downflow cooling layout and a 1.24 in inlet and outlet diameter. The aluminum core supports heat dissipation, while the integrated concentric transmission oil cooler helps manage automatic transmission fluid temperature through the radiator assembly. This part cross-references Toyota 16400-16720 for the same application.
Compatible fitment includes Fits 1993-1997 Geo Prizm, N/A; Fits 1993-1997 Toyota Corolla, N/A; and Fits 1993-1997 Toyota Corolla, N/A with the noted w/o HARRISON Brand application detail. The TYC Radiator line is used for OE-style radiator replacement needs where the original cooling layout and transmission cooler configuration must be matched closely.
Common Issues This Radiator Can Address
- Leaking or cracked radiator tanks
- Restricted coolant flow from an aging radiator core
- Overheating caused by reduced heat exchange efficiency
- Transmission fluid temperature concerns in radiator-integrated cooler systems
- Corrosion or wear in the original cooling assembly
Installation Notes and Tips
Verify radiator dimensions, hose connection size, and transmission cooler routing before installation. Confirm that the vehicle uses the same downflow configuration and concentric oil cooler setup as the original unit. Inspect hoses, clamps, and coolant condition during replacement, and flush the cooling system if contamination is present.
Quality Assurance
TYC manufactures replacement cooling components for applications that require accurate fitment and OE-style configuration matching. Part number 1409 is built to align with the listed vehicle applications and cooling-system specifications.
