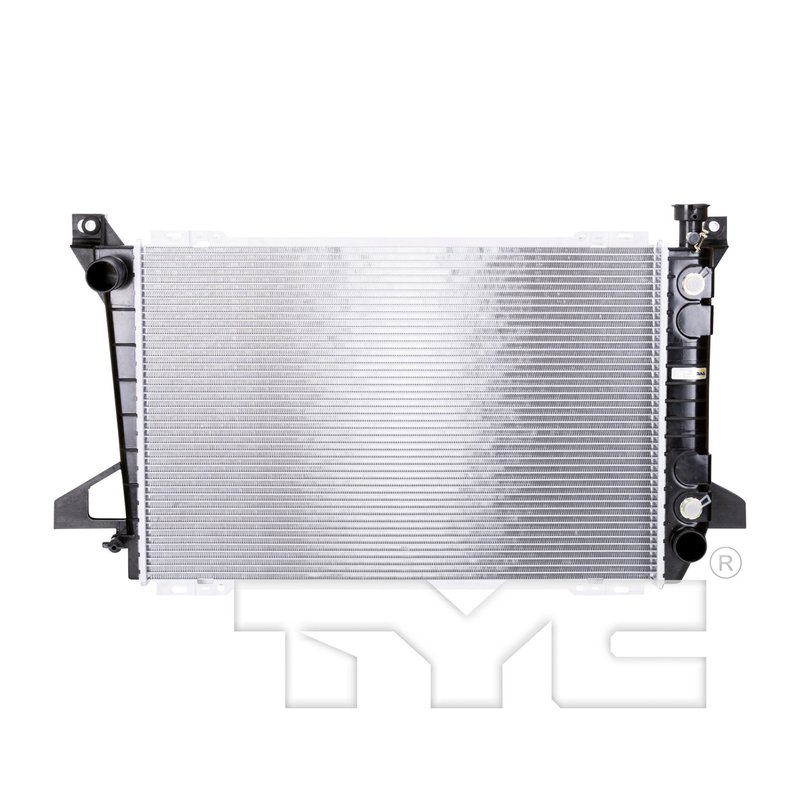

TYC 1452 Radiator - Primary

Overview of the TYC Radiator 1452 for Ford Vehicles

The TYC Radiator 1452 is engineered to provide reliable cooling performance for select Ford models, including Bronco, Bronco II, F-150, F-250, and F-350. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine operation under various driving conditions.

• Core material constructed from aluminum for effective heat dissipation
• Includes concentric transmission oil cooler for enhanced transmission cooling
• Crossflow design with 1.02-inch core thickness for optimized coolant flow
• Compatible with hose clamp inlet and outlet connections, each 1.77 inches in diameter
• Core dimensions: 18.03 inches height, 27.56 inches length, and 1.02 inches thickness
• Fin count of 68 every 4 inches and total fin row count of 46 for improved airflow
• Includes OC adapters (1/2"-2 unf), speed nut (m6 x p1.), and clip for secure installation

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering dependable cooling solutions tailored to specific vehicle applications. This line emphasizes quality core materials and integrated cooling features, such as the concentric transmission oil cooler found in part number 1452. The TYC Radiator series is designed to meet OEM specifications, ensuring compatibility and performance for Ford trucks and SUVs.

Technical Specifications and Features

This radiator features a single-row core with a crossflow configuration, allowing coolant to flow horizontally through 45 tubes measuring 26 by 2 mm. The fin wave height of 0.31 inches and fin wave pitch of 3 contribute to efficient heat exchange. Both the inlet and outlet connections use hose clamps with a diameter of 1.77 inches, facilitating straightforward installation. The bottom header measures 3.17 by 18.65 inches, while the top header is 2 by 18.65 inches, supporting structural integrity and coolant distribution.

Applications and Problem Solving

• Replaces worn or leaking radiators in Ford Bronco and Bronco II models
• Restores cooling efficiency in Ford F-150, F-250, and F-350 trucks
• Addresses overheating issues caused by damaged or clogged radiators
• Supports transmission cooling with integrated concentric oil cooler
• Prevents coolant leaks and maintains engine temperature stability

Installation Notes and Tips

Ensure compatibility with your specific Ford model before installation. The radiator uses hose clamp connections for both inlet and outlet, so verify hose sizes match the 1.77-inch diameter. Properly secure the included OC adapters, speed nut, and clip to maintain a stable fit. It is recommended to inspect and replace any worn hoses or clamps during installation to prevent future leaks.

Quality Assurance and Warranty

TYC Radiator 1452 is manufactured to meet industry standards for durability and performance. The aluminum core construction provides corrosion resistance and long service life. While specific warranty details are not provided, TYC products typically adhere to quality control processes to ensure reliable operation in Ford Bronco, Bronco II, F-150, F-250, and F-350 vehicles.
