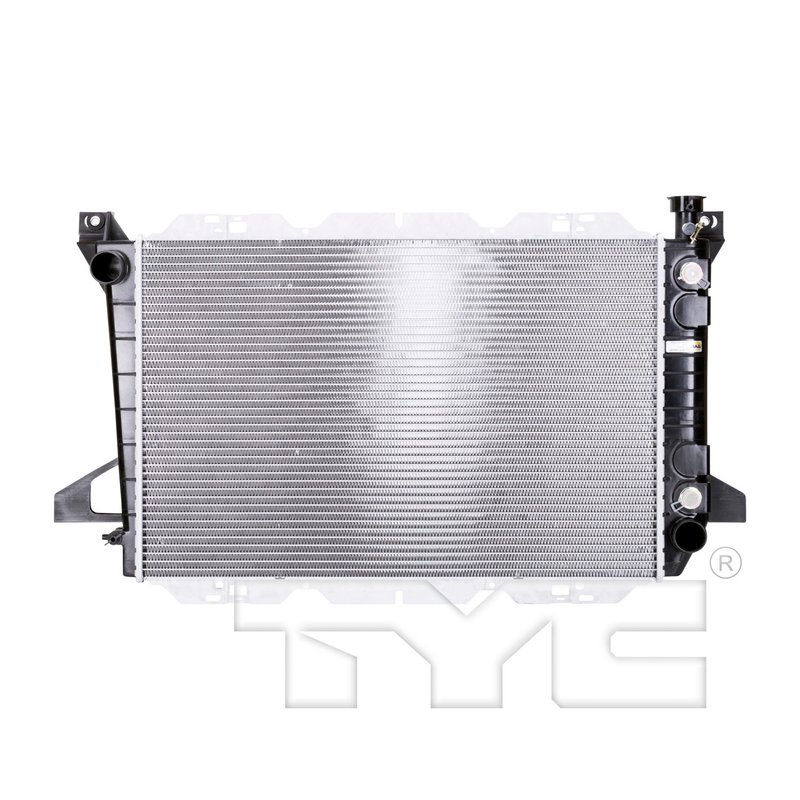

TYC 1454 Radiator
| Brand | TYC 1454 |
|---|---|
| Accessories Included | OC Adapters (1/2"-2 UNF) and Speed Nut (M6 x P1.) and Cilp for S.P. |
| Bottom Header | 3.17x18.65 |
| Core Height (in) | 18.11 |
| Core Length (in) | 27.56 |
| Core Material | Aluminum |
| Core Thickness (in) | 2.2 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 46 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 4.4 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.77 |
| No. Of Rows | 2 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.77 |
| Toc Distance (in) | 12.01 |
| Top Header | 3.17x18.65 |
| Total Fin Row Count | 42 |
| Total Tube Count | 41 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Ford · 62 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Concentric oil cooler. Built with an integrated transmission oil cooler for added cooling support.
Crossflow design. Engineered to move coolant across the core for effective heat exchange.
Cross-references APDI 8011454, DENSO 221-9357 and Ford F2TZ 8005 MA for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Ford Trucks
The TYC Radiator 1454 is a direct-fit cooling replacement for select Ford F-100, F-150, F-250, F-350, and Bronco applications. Built with an aluminum core and a crossflow design, it includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling.
TYC Radiator 1454 is engineered for Ford truck and Bronco fitments that require hose-clamp inlet and outlet connections, making it a practical choice for restoring cooling performance on classic Ford applications with A/C and Super Duty Cooling configurations.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow flow configuration
- Transmission oil cooler included with concentric oil cooler design
- No engine oil cooler included
- Hose clamp inlet and outlet connections
- Core dimensions: 27.56 in. length, 18.11 in. height, 2.2 in. thickness
- 2-row design with 41 total tubes and 42 total fin rows
Detailed Description
This TYC Radiator 1454 is built for Ford cooling system service where OE-style fitment and transmission fluid cooling are required. The aluminum core, 2-row construction, and crossflow layout support heat dissipation in demanding truck and Bronco use. It also includes the transmission oil cooler assembly, which is important for automatic-equipped vehicles that route fluid through the radiator for temperature control.
Compatible With 1980-1983 Ford F-100, Primary; 1980-1986 Ford F-150, Primary; 1980-1986 Ford F-250, Primary; 1980-1986 Ford F-350, Primary; 1987-1991 Ford Bronco, w/ A/C; 1987-1991 Ford F-150, Primary; 1987-1991 Ford F-250, Primary; 1987-1991 Ford F-350, Primary; 1992 Ford Bronco, w/ A/C; w/ Super Duty Cooling; 1992-1997 Ford F-150, w/ A/C; w/ Super Duty Cooling; 1992-1996 Ford F-250, w/ A/C; w/ Super Duty Cooling; 1992-1996 Ford F-350, w/ A/C; w/ Super Duty Cooling.
This part cross-references Ford F2TZ 8005 MA and Spectra Premium CU1454 for the same application.
Common Repair Uses
- Replacing a leaking or corroded radiator
- Restoring coolant flow in overheating Ford trucks
- Addressing transmission fluid temperature concerns in radiator-cooled systems
- Repairing cracked hose connections or damaged tanks
- Returning cooling performance on A/C-equipped Bronco and F-Series models
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet diameter, and transmission cooler connection style before installation. This radiator uses hose clamp inlet and outlet connections with 1.77 in. inlet and outlet diameters. Confirm vehicle configuration, including A/C and Super Duty Cooling requirements, against the listed fitment before ordering.
Quality Assurance
TYC Radiator 1454 is built as a replacement cooling component for the listed Ford applications and follows the specified fitment and construction details for direct vehicle matching.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1997 | Ford | F-150 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1996 | Ford | F-150 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1996 | Ford | F-250 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1996 | Ford | F-350 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1995 | Ford | F-150 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1995 | Ford | F-250 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1995 | Ford | F-350 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1994 | Ford | F-150 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1994 | Ford | F-250 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1994 | Ford | F-350 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1993 | Ford | F-150 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1993 | Ford | F-250 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1993 | Ford | F-350 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1992 | Ford | Bronco | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1992 | Ford | F-150 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1992 | Ford | F-250 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1992 | Ford | F-350 | — | — | — | 4.9L | L6 | N/A | w/ A/C; w/ Super Duty Cooling; TYC Radiator |
| 1991 | Ford | Bronco | — | — | — | 4.9L | L6 | N/A | w/ A/C; TYC Radiator |
| 1991 | Ford | F-150 | Custom | Standard Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1991 | Ford | F-250 | XL | Extended Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1991 | Ford | F-350 | Custom | Standard Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1990 | Ford | Bronco | — | — | — | 4.9L | L6 | N/A | w/ A/C; TYC Radiator |
| 1990 | Ford | F-150 | Custom | Standard Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1990 | Ford | F-250 | Custom | Extended Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1990 | Ford | F-350 | XLT Lariat | Standard Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1989 | Ford | Bronco | — | — | — | 4.9L | L6 | N/A | w/ A/C; TYC Radiator |
| 1989 | Ford | F-150 | Custom | Extended Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1989 | Ford | F-250 | XL | Standard Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1989 | Ford | F-350 | XL | Extended Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1988 | Ford | Bronco | — | — | — | 4.9L | L6 | N/A | w/ A/C; TYC Radiator |
| 1988 | Ford | F-150 | XL | Standard Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1988 | Ford | F-250 | XLT Lariat | Extended Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1988 | Ford | F-350 | XLT Lariat | Crew Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1987 | Ford | Bronco | — | — | — | 4.9L | L6 | N/A | w/ A/C; TYC Radiator |
| 1987 | Ford | F-150 | Custom | Extended Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1987 | Ford | F-250 | XL | Standard Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1987 | Ford | F-350 | Custom | Crew Cab Pickup | Automatic | 4.9L | L6 | Primary | w/ A/C; TYC Radiator |
| 1986 | Ford | F-150 | XL | Extended Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1986 | Ford | F-250 | Base | Standard Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1986 | Ford | F-350 | XLT Lariat | Crew Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1985 | Ford | F-150 | Base | Extended Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1985 | Ford | F-250 | XLT Lariat | Standard Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1985 | Ford | F-350 | XL | Crew Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1984 | Ford | F-150 | XL | Standard Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1984 | Ford | F-250 | XL | Extended Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1984 | Ford | F-350 | Base | Crew Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1983 | Ford | F-100 | XLS | Standard Cab Pickup | — | 3.8L | V6 | Primary | TYC Radiator |
| 1983 | Ford | F-150 | XLS | Standard Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1983 | Ford | F-250 | XLS | Extended Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1983 | Ford | F-350 | XLT | Crew Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1982 | Ford | F-100 | XL | Standard Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1982 | Ford | F-150 | XL | Extended Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1982 | Ford | F-250 | Custom | Extended Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1982 | Ford | F-350 | XLS | Standard Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1981 | Ford | F-100 | Ranger Lariat | Standard Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1981 | Ford | F-150 | Custom | Extended Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1981 | Ford | F-250 | Ranger | Cab & Chassis | — | 4.9L | L6 | Primary | TYC Radiator |
| 1981 | Ford | F-350 | Ranger | Cab & Chassis | — | 4.9L | L6 | Primary | TYC Radiator |
| 1980 | Ford | F-100 | Ranger Lariat | Standard Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1980 | Ford | F-150 | Custom | Extended Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
| 1980 | Ford | F-250 | Ranger XLT | Cab & Chassis | — | 4.9L | L6 | Primary | TYC Radiator |
| 1980 | Ford | F-350 | Ranger Lariat | Standard Cab Pickup | — | 4.9L | L6 | Primary | TYC Radiator |
