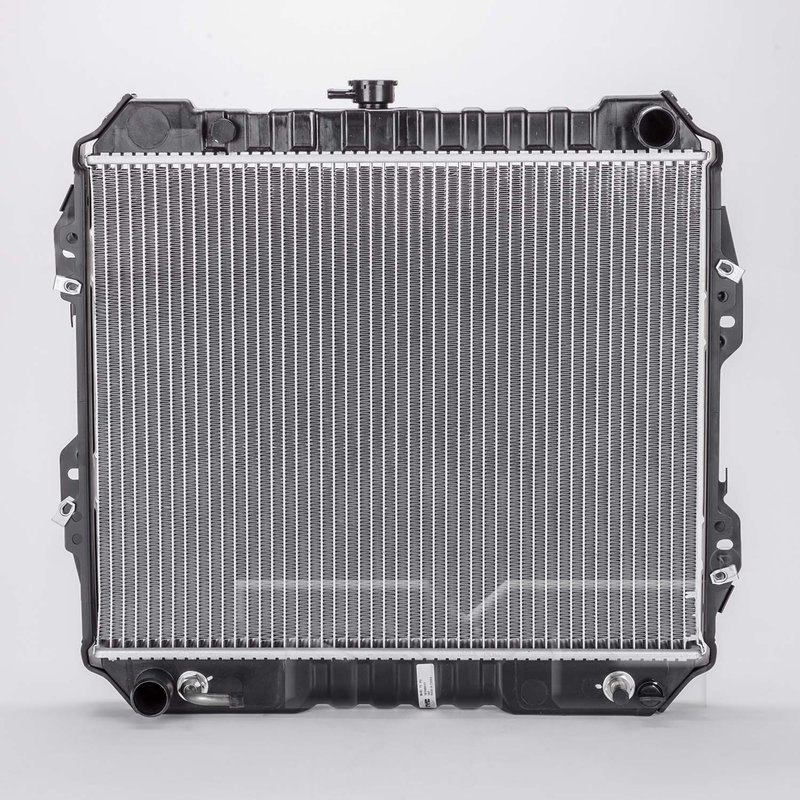

TYC 147 Radiator
OE Quality 60-Day Returns
TYC
 TYC Radiator

TYC 147 Radiator

Brand TYC 147
Bottom Header 2.72x20.98
Core Height (in) 20.71
Core Length (in) 16.73
Core Material Aluminum
Core Thickness (in) 1.89
Engine Oil Cooler Included No
Fin Count (every 4") 60
Fin Wave Height (in) 0.35
Find Wave Pitch 3.4
Flow Configuration Downflow
Inlet Connection Type Hose Clamp
Inlet Diameter (in) 1.36
No. Of Rows 1
Outlet Connection Type Hose Clamp
Outlet Diameter (in) 1.36
Toc Distance (in) 14.76
Toc Inlet Diameter (in) 0.39
Toc Inlet Type Tube fitting
Toc Outlet Diameter (in) 0.39
Toc Outlet Type Tube fitting
Top Header 2.72x20.98
Total Fin Row Count 48
Total Tube Count 47
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Type Concentric Oil Cooler
Tube Count (every 4") 10
Tube Width X Height 22x2
Product line TYC Radiator
Fits Toyota · 10 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Transmission oil cooler included. Adds integrated fluid cooling in one radiator assembly.

Hose clamp connections. Simplifies hose attachment for a straightforward install.

Cross-references APDI 8010147, Partslink TO3010252 and Spectra Premium CU147 for the same application. See all 4.

$171.53Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $171.53
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

TYC Radiator for Toyota 4Runner

Replace a worn cooling system component with this TYC Radiator, part number 147, built for 1985-1989 Toyota 4Runner applications. It features an aluminum core and includes a concentric transmission oil cooler for automatic-transmission cooling support.

Key Features

  • TYC Radiator, part number 147
  • Fits 1985-1989 Toyota 4Runner, N/A
  • Aluminum core construction
  • Downflow flow configuration
  • Transmission oil cooler included with concentric oil cooler design
  • Hose clamp inlet and outlet connections
  • Single-row core design
  • OE cross-reference: Toyota 16400-35380

Product Details

This TYC Radiator is built around a 20.71-inch core height, 16.73-inch core length, and 1.89-inch core thickness, with a 22 x 2 tube width and height profile. The radiator uses a downflow layout, 1.36-inch inlet and outlet diameters, and aluminum core material for efficient heat transfer. The integrated transmission oil cooler uses tube fitting connections with 0.39-inch inlet and outlet diameters, making this unit a direct cooling-system service part for Toyota 4Runner models from 1985 through 1989. This part number 147 also cross-references APDI 8010147 and Spectra Premium CU147 for the same application.

Common Repair Uses

  • Replacing a leaking or corroded radiator
  • Restoring coolant flow after internal blockage
  • Addressing transmission fluid temperature control concerns
  • Repairing cracked hose necks or damaged tank connections
  • Correcting overheating caused by reduced radiator efficiency

Installation Notes

Verify hose clamp connection sizes, cooler line routing, and core dimensions before installation. Flush the cooling system and inspect hoses, clamps, and transmission cooler lines for wear before transferring the new radiator into service. Confirm fitment against the vehicle’s cooling-system layout for 1985-1989 Toyota 4Runner models.

Quality Assurance

TYC Radiator components are built to match the listed application details and interchange references for Toyota 4Runner cooling-system service. Confirm part number 147 against the vehicle identification and existing radiator configuration before installation.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody TypeTransmissionLitersCylindersPositionNotes
1989Toyota4RunnerSR5Sport UtilityAutomatic2.4LL4N/ATYC Radiator
1989Toyota4RunnerDLXSport UtilityAutomatic2.4LL4N/ATYC Radiator
1988Toyota4RunnerDLXSport UtilityAutomatic2.4LL4N/ATYC Radiator
1988Toyota4RunnerSR5Sport UtilityAutomatic2.4LL4N/ATYC Radiator
1987Toyota4RunnerDLXSport UtilityAutomatic2.4LL4N/ATYC Radiator
1987Toyota4RunnerSR5Sport UtilityAutomatic2.4LL4N/ATYC Radiator
1986Toyota4RunnerDLXSport UtilityAutomatic2.4LL4N/ATYC Radiator
1986Toyota4RunnerSR5Sport UtilityAutomatic2.4LL4N/ATYC Radiator
1985Toyota4RunnerSR5Sport UtilityAutomatic2.4LL4N/ATYC Radiator
1985Toyota4RunnerDLXSport UtilityAutomatic2.4LL4N/ATYC Radiator
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8010147Partslink — TO3010252Spectra Premium — CU147Toyota — 16400-35380
