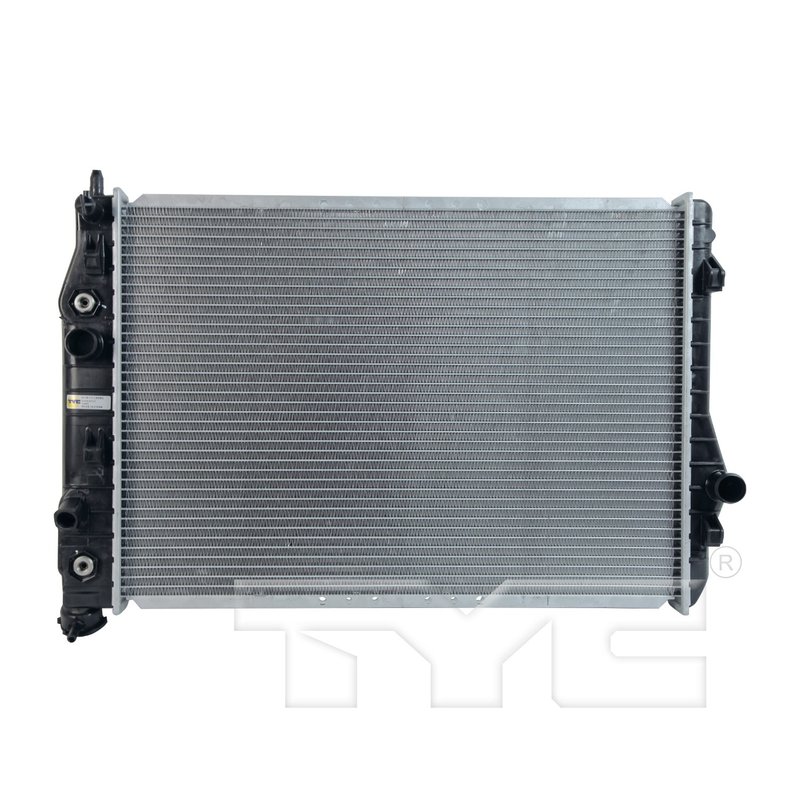

TYC 1485 Radiator

Overview of TYC Radiator 1485 for Chevrolet Camaro and Pontiac Firebird

The TYC Radiator part number 1485 is engineered to provide reliable cooling performance for Chevrolet Camaro and Pontiac Firebird models. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine temperature management under various driving conditions.

• Core Material: Aluminum for effective heat dissipation
• Includes Plate Type Transmission Oil Cooler
• Core Dimensions: 17.24 inches height, 24.8 inches length, 1.02 inches thickness
• Crossflow flow configuration for optimized coolant circulation
• Inlet and outlet hose clamp connections with 1.30-inch diameter
• 56 fins per 4 inches with 0.35-inch fin wave height for enhanced airflow
• Compatible with Chevrolet Camaro and Pontiac Firebird vehicles

Detailed Features and Specifications

The TYC Radiator 1485 features a single-row aluminum core measuring 17.24 inches in height and 24.8 inches in length, with a thickness of 1.02 inches. The crossflow design improves coolant flow efficiency, while the 56 fins per 4 inches and 0.35-inch fin wave height contribute to effective heat exchange. This radiator includes a plate-type transmission oil cooler, which helps maintain optimal transmission fluid temperature, enhancing transmission longevity. Both inlet and outlet connections use hose clamps with a 1.30-inch diameter, ensuring secure and leak-free hose attachment. The top and bottom headers measure 2.43 by 18.73 inches, supporting structural integrity and coolant distribution.

TYC Radiator Product Line Information

The TYC Radiator product line focuses on delivering reliable cooling solutions with quality materials and precise fitment. Radiators in this line are designed to meet or exceed OEM specifications, providing a balance of durability and performance. The inclusion of transmission oil coolers in select models, such as part number 1485, addresses the needs of vehicles requiring integrated cooling components for both engine and transmission systems.

Applications and Problem Solving

• Replaces worn or leaking radiators in Chevrolet Camaro and Pontiac Firebird
• Addresses overheating issues caused by inefficient heat dissipation
• Improves transmission fluid cooling with integrated plate oil cooler
• Resolves coolant leaks from damaged or corroded radiator cores
• Supports engine performance by maintaining optimal operating temperatures

Installation Notes and Tips

Ensure the radiator hoses are compatible with 1.30-inch diameter hose clamp connections. Verify the crossflow orientation matches the vehicle’s cooling system layout. Properly secure the radiator to the mounting points using the existing hardware. Check for any coolant or transmission fluid leaks after installation and perform a pressure test if necessary. Follow vehicle-specific service manual instructions for coolant replacement and bleeding procedures.

Quality Assurance and Warranty

TYC Radiator part number 1485 is manufactured with high-quality aluminum core material and tested to meet industry standards for durability and performance. The radiator includes an integrated plate-type transmission oil cooler to support transmission system reliability. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
