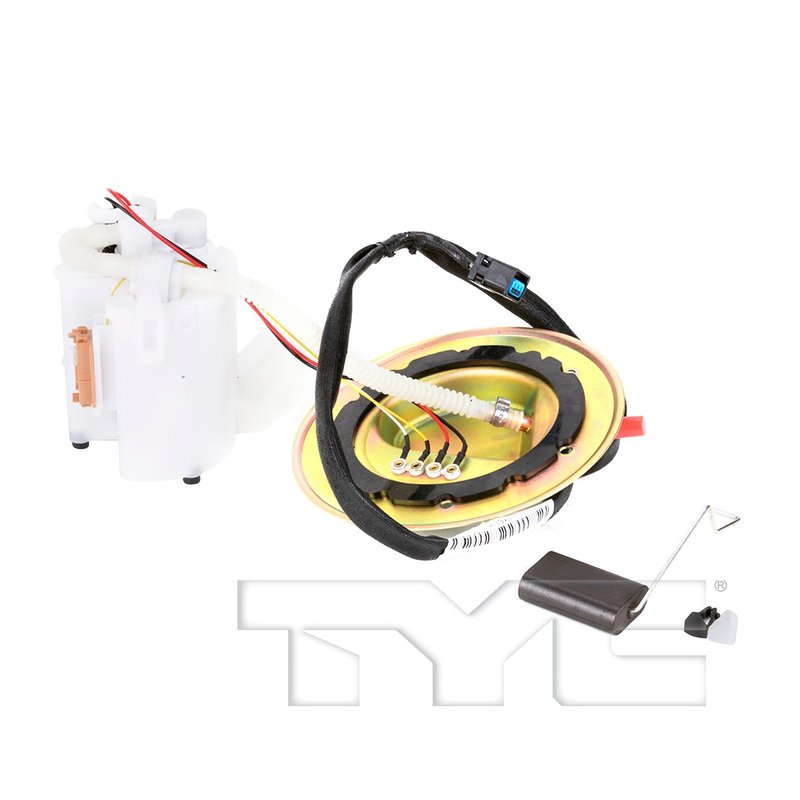

TYC 150034-A Fuel Pump Module Assembly

Overview of the TYC CRQ Premium Fuel Pump Module

The TYC CRQ Premium Fuel Pump Module 150034-A is designed specifically for Ford Mustang models, providing reliable fuel delivery and accurate fuel level sensing. This fuel pump module assembly includes essential components to ensure optimal performance and compatibility with your vehicle.

• Includes strainer for fuel filtration
• Maximum air pressure range between 80-116 psi
• Comes with necessary accessories for installation
• Main connector features 7 pins for secure electrical connection
• Fuel level sensor resistance range from 15 to 160 ohms
• Quick connect fuel tube connection type for ease of installation
• Fuel flow rate between 41.2 and 54.7 gallons per hour

Detailed Product Description

The TYC CRQ Premium Fuel Pump Module 150034-A is engineered to meet the fuel delivery demands of Ford Mustang vehicles. This assembly includes a built-in strainer to help prevent contaminants from entering the fuel system, enhancing the longevity of the pump and engine components. The module supports a maximum air pressure range of 80 to 116 psi, ensuring consistent fuel flow under various operating conditions. Equipped with a 7-pin main connector, it guarantees a secure and reliable electrical connection for the fuel pump and fuel level sensor.

The fuel level sensor resistance range of 15 to 160 ohms allows for accurate fuel level readings, which is critical for the vehicle’s fuel gauge functionality. The quick connect fuel tube connection type simplifies installation and maintenance, reducing labor time. With a fuel flow capacity between 41.2 and 54.7 gallons per hour, this module supports efficient fuel delivery to maintain engine performance.

About the TYC CRQ Premium Fuel Pump Module Line

The TYC CRQ Premium Fuel Pump Module line focuses on providing high-quality fuel pump assemblies that combine durability and precise fitment. This product line is designed to meet or exceed OEM specifications, offering components that include necessary accessories and features such as strainers and quick connect fittings. The 150034-A part number is part of this line, ensuring compatibility and reliable operation for Ford Mustang fuel systems.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Mustang vehicles
• Resolves inaccurate fuel gauge readings due to faulty fuel level sensors
• Addresses fuel delivery interruptions caused by clogged strainers or worn pump modules
• Improves engine performance by maintaining consistent fuel pressure and flow
• Facilitates repair of electrical connection issues with the 7-pin connector design

Installation Notes and Tips

• Ensure vehicle is depressurized before removing the old fuel pump module
• Verify the 7-pin connector aligns properly to avoid electrical faults
• Use the included accessories and quick connect fittings for secure installation
• Inspect the fuel strainer for debris during installation and replace if necessary
• Test fuel level sensor resistance to confirm proper operation after installation

Quality Assurance and Warranty

The TYC CRQ Premium Fuel Pump Module 150034-A is manufactured to meet strict quality standards for fit, form, and function. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. It is recommended to consult the product documentation or supplier for exact warranty terms.
