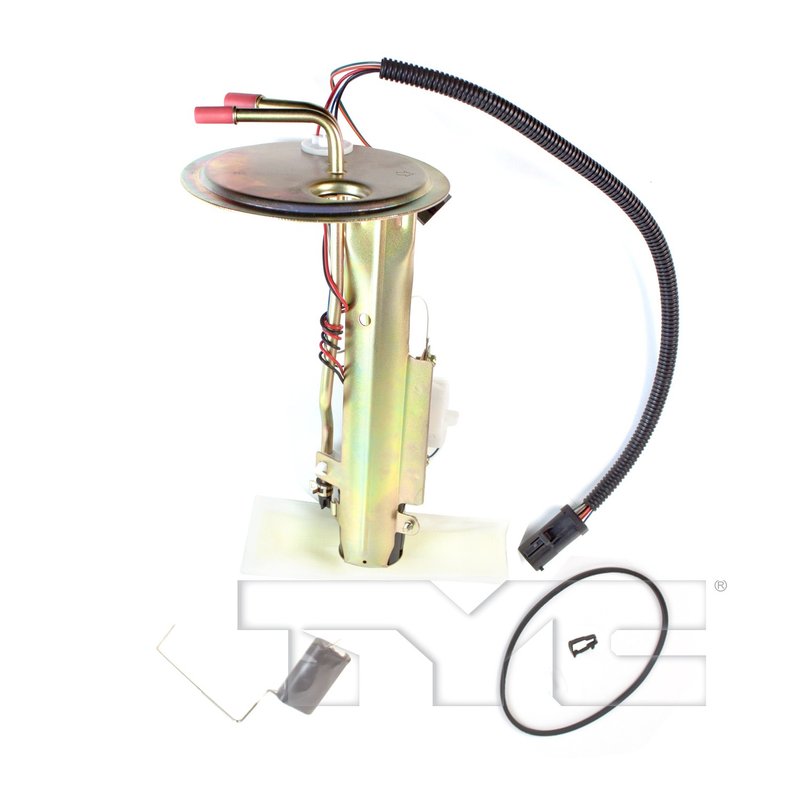

TYC 150224-A Fuel Pump Module Assembly

Overview of the TYC CRQ Premium Fuel Pump Module

The TYC CRQ Premium Fuel Pump Module 150224-A is designed specifically for Ford Expedition models, providing reliable fuel delivery and accurate fuel level readings. This fuel pump module assembly includes essential components to ensure optimal performance and compatibility with your vehicle.

• Includes strainer for fuel filtration
• Maximum air pressure range between 80-109 psi
• Comes with necessary accessories for installation
• Main connector features 7 pins for secure electrical connection
• Fuel level sensor resistance range from 15 to 160 ohms
• Quick connect fuel tube connection type for ease of installation
• Fuel flow rate between 34.3 and 44.9 gallons per hour

Detailed Product Description

The TYC CRQ Premium Fuel Pump Module 150224-A is engineered to meet the specific requirements of Ford Expedition vehicles. This assembly includes a built-in strainer to help prevent contaminants from entering the fuel system, enhancing the longevity of the pump and engine components. The module supports a maximum air pressure range of 80 to 109 psi, ensuring consistent fuel delivery under various operating conditions. Equipped with a 7-pin main connector, it guarantees a secure and reliable electrical connection. The fuel level sensor within the module operates within a resistance range of 15 to 160 ohms, providing accurate fuel level readings to the vehicle’s dashboard. Additionally, the quick connect fuel tube connection type simplifies installation and maintenance. With a fuel flow rate between 34.3 and 44.9 gallons per hour, this module supports efficient fuel delivery for optimal engine performance.

About the TYC CRQ Premium Fuel Pump Module Line

The TYC CRQ Premium Fuel Pump Module line focuses on delivering high-quality fuel pump assemblies that combine durability and precise fitment. Designed for specific vehicle applications like the Ford Expedition, this product line includes modules with integrated strainers, fuel level sensors, and quick connect fittings to streamline installation and ensure reliable operation. The 150224-A part number is part of this line, reflecting TYC’s commitment to providing components that meet OEM specifications.

Common Applications and Issues Addressed

• Replacement for faulty or failing fuel pump modules in Ford Expedition
• Resolves inconsistent fuel level readings on the dashboard
• Addresses fuel delivery problems causing engine hesitation or stalling
• Prevents fuel contamination with included strainer
• Improves fuel system reliability and performance

Installation Notes and Tips

• Ensure compatibility with Ford Expedition model year before installation
• Handle the quick connect fuel tube carefully to avoid damage
• Verify the 7-pin connector aligns properly with vehicle wiring harness
• Replace the fuel pump module in a well-ventilated area to avoid fuel vapor exposure
• Follow vehicle manufacturer’s service manual for proper removal and installation procedures

Quality Assurance and Warranty

The TYC CRQ Premium Fuel Pump Module 150224-A is manufactured to meet strict quality standards, ensuring reliable performance and durability. This fuel pump module assembly includes all necessary accessories and is tested for fitment and function. Warranty information is provided by TYC and may vary; please refer to the manufacturer’s documentation for specific warranty details.
