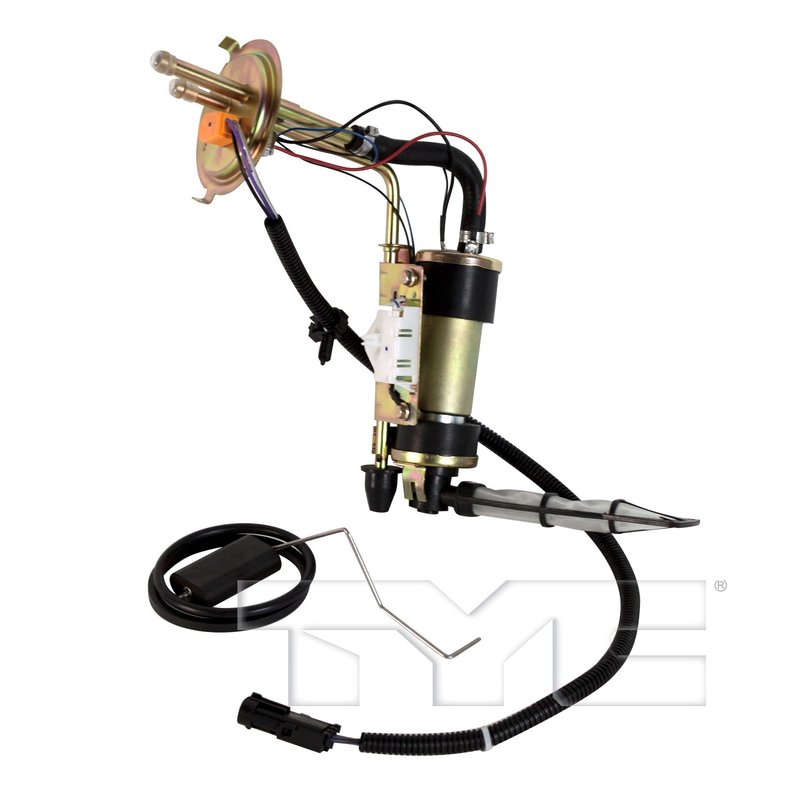

TYC 150296-A Fuel Pump Module Assembly

Overview of TYC CRQ Premium Fuel Pump Module for Jeep Vehicles

The TYC CRQ Premium Fuel Pump Module Assembly (Part Number 150296-A) is designed specifically for Jeep Cherokee, Comanche, and Wagoneer models. This fuel pump module ensures reliable fuel delivery and accurate fuel level readings, supporting optimal engine performance.

• Includes integrated strainer for fuel filtration
• Maximum air pressure range between 101.5 and 123 psi
• Comes with necessary accessories for installation
• Main connector features 3-pin configuration
• Fuel level sensor resistance range from 105 to 5 ohms
• Fuel tube connection uses hose clamp type
• Fuel flow rate between 39.6 and 47.6 gallons per hour

Detailed Features and Specifications

The TYC CRQ Premium Fuel Pump Module is engineered to meet the specific fuel delivery requirements of Jeep Cherokee, Comanche, and Wagoneer vehicles. The included strainer helps prevent contaminants from entering the fuel system, protecting the engine and fuel injectors. With a maximum air pressure rating of 101.5 to 123 psi, this module maintains consistent fuel pressure under various operating conditions. The 3-pin main connector ensures secure electrical connections, while the fuel level sensor resistance range of 105 to 5 ohms provides accurate fuel gauge readings. The hose clamp type fuel tube connection simplifies installation and ensures a tight seal. Fuel flow capacity ranges from 39.6 to 47.6 gallons per hour, supporting efficient fuel delivery for these Jeep models.

About the TYC CRQ Premium Fuel Pump Module Line

The TYC CRQ Premium Fuel Pump Module line focuses on delivering reliable and precise fuel system components tailored for specific vehicle applications. This product line emphasizes compatibility and quality, providing assemblies that include essential accessories and components such as strainers and connectors. The 150296-A part number is part of this line, offering a comprehensive solution for fuel delivery and sensor accuracy in Jeep Cherokee, Comanche, and Wagoneer models.

Common Applications and Problem Resolution

• Restores proper fuel delivery in Jeep Cherokee, Comanche, and Wagoneer
• Resolves fuel gauge inaccuracies due to faulty fuel level sensors
• Eliminates fuel pressure fluctuations affecting engine performance
• Prevents fuel contamination with integrated strainer
• Replaces worn or damaged fuel pump modules to maintain drivability

Installation Notes and Tips

When installing the TYC CRQ Premium Fuel Pump Module Assembly 150296-A, ensure the vehicle is safely supported and the fuel system is depressurized. Verify the 3-pin connector aligns correctly with the vehicle harness. Use the included accessories and hose clamp connection to secure fuel lines properly, preventing leaks. It is recommended to inspect the fuel tank and clean any debris before installation to maximize module longevity.

Quality Assurance and Warranty

TYC manufactures the CRQ Premium Fuel Pump Module to meet or exceed OEM standards for fit, form, and function. The assembly includes a strainer and accessories to ensure a complete replacement solution. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
