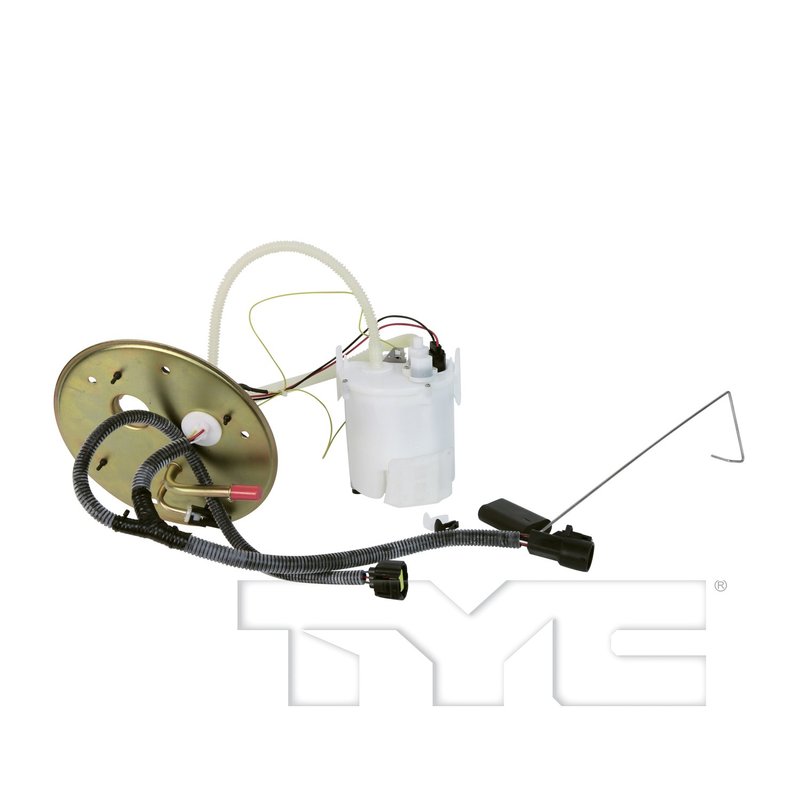

TYC 150323-A Fuel Pump Module Assembly - Rear

Overview of the TYC CRQ Premium Fuel Pump Module

The TYC CRQ Premium Fuel Pump Module Assembly (Part Number 150323-A) is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. This fuel pump module ensures reliable fuel delivery and accurate fuel level readings for heavy-duty trucks.

• Includes integrated fuel strainer for contaminant filtration
• Maximum air pressure range between 72.5 and 130.5 psi
• Equipped with a 7-pin main connector for secure electrical connections
• Fuel level sensor resistance range from 15 to 160 ohms
• Quick connect fuel tube connection for efficient installation
• Fuel flow rate between 56.9 and 61.5 gallons per hour
• Compatible with Ford F-250 Super Duty and F-350 Super Duty

TYC CRQ Premium Fuel Pump Module Product Line Details

The TYC CRQ Premium Fuel Pump Module line focuses on delivering precise fuel delivery components that meet OEM specifications. This product line emphasizes durability and accurate fuel level sensing, making it suitable for demanding applications such as the Ford Super Duty series. The 150323-A module integrates essential features like a built-in strainer and quick connect fittings to streamline maintenance and ensure consistent performance.

Technical Description and Features

This fuel pump module assembly is engineered to maintain optimal fuel pressure within the specified range of 72.5 to 130.5 psi, supporting efficient engine operation. The included fuel strainer helps prevent debris from entering the fuel system, protecting the engine and fuel injectors. The 7-pin connector ensures reliable electrical communication with the vehicle’s fuel system, while the fuel level sensor operates within a resistance range of 15 to 160 ohms, providing accurate fuel gauge readings. The quick connect fuel tube connection simplifies installation and replacement procedures. With a fuel flow capacity between 56.9 and 61.5 gallons per hour, this module supports the fuel demands of heavy-duty Ford trucks.

Applications and Problem Resolution

• Restores proper fuel delivery in Ford F-250 Super Duty and F-350 Super Duty trucks
• Resolves fuel gauge inaccuracies caused by faulty fuel level sensors
• Prevents engine performance issues related to clogged or damaged fuel strainers
• Addresses fuel pressure inconsistencies affecting engine power and efficiency
• Facilitates replacement of worn or failing fuel pump modules in heavy-duty applications

Installation Notes and Tips

• Ensure vehicle compatibility with Ford F-250 Super Duty and F-350 Super Duty models before installation
• Disconnect the battery and relieve fuel system pressure prior to removal
• Handle the fuel strainer carefully to avoid damage during installation
• Verify the 7-pin connector is securely attached to prevent electrical faults
• Use the quick connect fuel tube fittings to simplify connection and reduce installation time

Quality Assurance and Warranty

The TYC CRQ Premium Fuel Pump Module Assembly (150323-A) is manufactured to meet or exceed OEM standards for fit, form, and function. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. For exact warranty terms, consult the product documentation or manufacturer.
