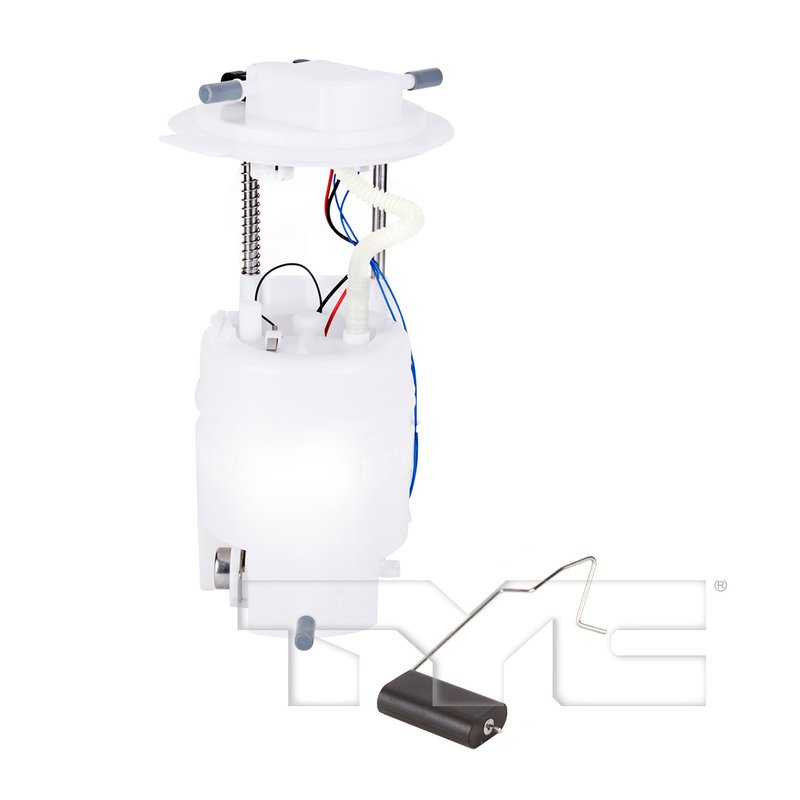

TYC 150342-A Fuel Pump Module Assembly

TYC CRQ Fuel Pump Module for Santa Fe

The TYC CRQ Premium Fuel Pump Module Assembly is built for fuel delivery service on the 2007-2009 Hyundai Santa Fe. This fuel pump module includes a strainer and uses a quick-connect fuel tube connection for straightforward integration with the vehicle’s fuel system.

Part number 150342-A is part of the TYC CRQ Premium Fuel Pump Module line, a product line focused on fuel system replacement components for direct-fit service applications. For Hyundai Santa Fe fuel pump module replacement, this assembly provides the key electrical and fuel connection details needed for a proper match.

Key Features

• Fuel pump module assembly for 2007-2009 Hyundai Santa Fe
• TYC CRQ Premium Fuel Pump Module line
• Includes strainer
• Quick-connect fuel tube connection type
• 5-pin main connector
• Fuel level sensor resistance range: 84-4
• Maximum air pressure range: 52-58
• Fuel flow rating: 55-64 GPH

Detailed Description

TYC 150342-A is a fuel pump module assembly for the Hyundai Santa Fe, covering 2007, 2008, and 2009 model years. It is specified with a 5-pin main connector, quick-connect fuel tube connection, and an included strainer to support fuel delivery service and tank-side replacement work. The fuel level sensor resistance range of 84-4 and the stated pressure and flow specifications help identify the correct module for the application.

This part cross-references Hyundai 311100W000 for the same application. It also cross-references Delphi FG1272 for the same application.

What This Part Helps Address

• Hard starting caused by weak fuel delivery
• Engine stalling related to inconsistent pump output
• Fuel gauge readings affected by a worn level sensor circuit
• Loss of fuel pressure under load
• Noise or contamination issues tied to a failing in-tank module

Installation Notes and Tips

Confirm connector pin count, fuel tube connection style, and sensor resistance range before installation. Verify the tank module matches the 2007-2009 Hyundai Santa Fe fuel system layout and inspect the tank, lines, and electrical connector condition during replacement. Clean the tank area and check the strainer seating before final assembly.

Quality Assurance

TYC CRQ fuel system components are built for direct replacement service, with application-specific fitment details listed for the 2007-2009 Hyundai Santa Fe. Verify part number 150342-A against the vehicle’s original module specifications before installation.
