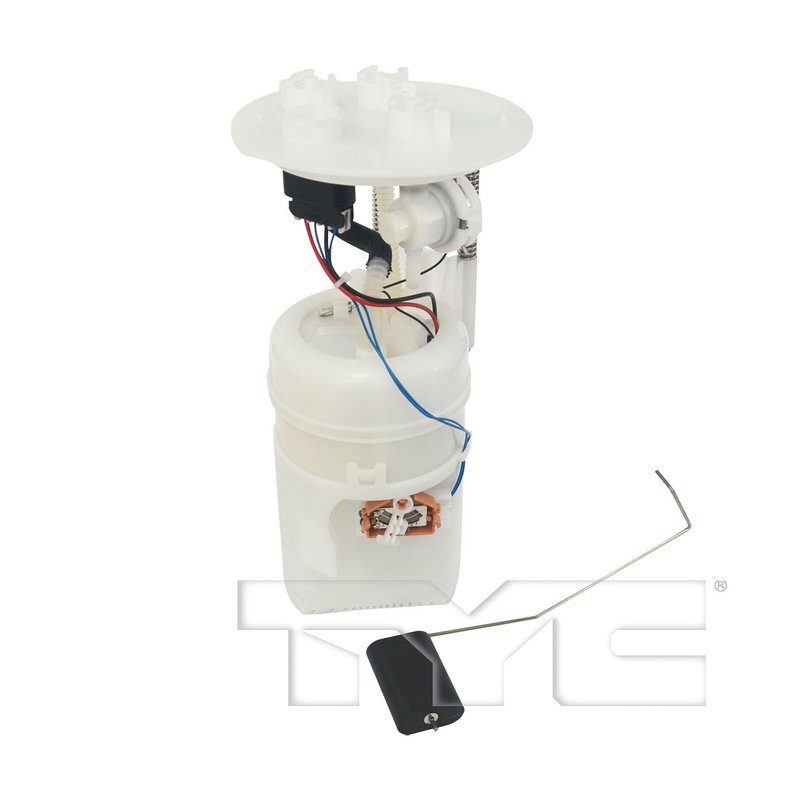

TYC 150352-A Fuel Pump Module Assembly

TYC CRQ Premium Fuel Pump Module for Toyota Tundra and Sequoia

The TYC CRQ Premium Fuel Pump Module Assembly is built for direct replacement in select Toyota fuel systems that require stable fuel delivery and accurate level sensing. This application covers Toyota Tundra and Toyota Sequoia models with the specified engine and tank configurations, including 2012-2019 Toyota Tundra and 2012-2018 Toyota Sequoia coverage shown below.

Key Features

• TYC CRQ Premium Fuel Pump Module Assembly for fuel system service
• Includes strainer for in-tank fuel pickup support
• Quick-connect fuel tube connection for OE-style serviceability
• 4-pin main connector for the listed Toyota applications
• Fuel level sensor resistance range: 514-115
• Fuel delivery flow range: 52.8-60.75 GPH
• Maximum air pressure range: 98.6-142.1
• Direct replacement part number: 150352-A

Product Details

TYC CRQ Premium Fuel Pump Module 150352-A is engineered for Toyota fuel delivery systems that need consistent pressure, proper tank pickup, and reliable sender feedback. This module is listed for 2015-2019 Toyota Tundra with a 26-gallon tank and 3URFBE engine, 2012-2014 Toyota Tundra with 3URFBE, 2012-2014 Toyota Sequoia with 3URFBE, 2015 Toyota Sequoia with flex fuel, and 2016-2018 Toyota Sequoia with 3URFBE. The TYC CRQ Premium Fuel Pump Module line focuses on replacement fuel system components that match the vehicle’s original connection style and electrical interface.

This part cross-references Airtex E9199M and Carter P77054M for the same application.

Common Issues This Part Can Address

• Hard starting caused by weak fuel delivery
• Engine hesitation from inconsistent fuel pressure
• Fuel gauge readings that no longer track tank level correctly
• Loss of fuel pickup performance from a worn in-tank module
• Fuel system service needs on Toyota Tundra and Toyota Sequoia models

Installation Notes

Verify the vehicle’s engine code, tank size, connector style, and fuel tube connection before installation. This module uses a quick-connect fuel tube connection and a 4-pin main connector, so the existing harness and line routing must match the listed application. Confirm the fuel level sensor resistance range and tank configuration against the original unit before replacing the assembly.

Quality Assurance

TYC CRQ Premium Fuel Pump Module 150352-A is built as a replacement fuel pump module assembly for the listed Toyota applications, with OE-style fitment details and application-specific electrical and fuel connection requirements.
