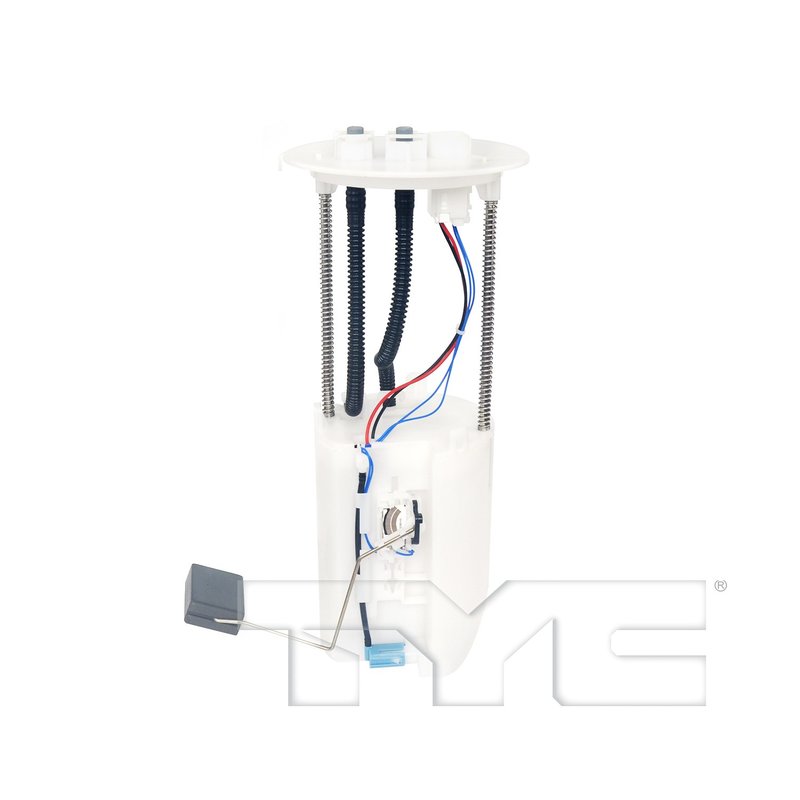

TYC 150398-A Fuel Pump Module Assembly

TYC Fuel Pump Module for Toyota and Lexus

The TYC CRQ Premium Fuel Pump Module, part number 150398-A, is a fuel pump module assembly built for direct-fit service on select Toyota and Lexus applications. It supports consistent fuel delivery and fuel level sensing for 2010-2024 Toyota 4Runner and 2010-2023 Lexus GX460 models.

Key Features

• TYC CRQ Premium Fuel Pump Module line for OE-style fuel system service
• Fuel pump module assembly for air and fuel delivery applications
• 5-pin main connector for vehicle-specific electrical connection
• Fuel level sensor resistance range: 15 - 410 ohms
• Fuel tube connection uses a buckle type connection
• Fuel flow rating: 44.7 GPH
• Maximum air pressure: 530 kPa
• No fuel tank gasket included
• Strainer and accessories not listed as included

Detailed Description

TYC CRQ Premium Fuel Pump Module 150398-A is engineered for Toyota 4Runner and Lexus GX460 fuel system service where a complete module assembly is needed. The CRQ Premium Fuel Pump Module line focuses on fitment-specific replacement parts that match the electrical and fuel connection requirements of the application, including a 5-pin main connector and buckle type fuel tube connection. With a 15 - 410 ohm fuel level sensor range and 44.7 GPH flow rating, this module supports fuel delivery and tank level reporting in the specified vehicles. This part cross-references Airtex E9068M for the same application.

Compatible With 2010-2024 Toyota 4Runner and 2010-2023 Lexus GX460, this fuel pump module assembly is a direct replacement option for service work involving fuel delivery, sender signal issues, or module wear. Part number 150398-A is also referenced by Toyota 77020-35151 and Lexus 77020-35151.

Common Uses

• Restoring fuel delivery when the original pump module is no longer maintaining pressure
• Addressing inaccurate fuel gauge readings caused by sender wear
• Replacing a noisy, weak, or intermittent fuel pump module
• Servicing a leaking or connection-worn fuel module assembly
• Repairing drivability issues tied to inconsistent fuel supply

Installation Notes

Verify connector pin count, fuel tube connection style, and tank application before installation. The fuel tank gasket is not included, so reuse or replace the gasket as required by the vehicle service procedure. Confirm the module matches the vehicle’s fuel level sensor range and OE-style connection layout before final assembly. Fits 2010-2024 Toyota 4Runner, N/A. Fits 2010-2023 Lexus GX460, N/A.

Quality Assurance

TYC’s CRQ Premium Fuel Pump Module line is built for application-specific replacement service with attention to connector, sensor, and fuel connection details needed for Toyota and Lexus fuel system repairs.
