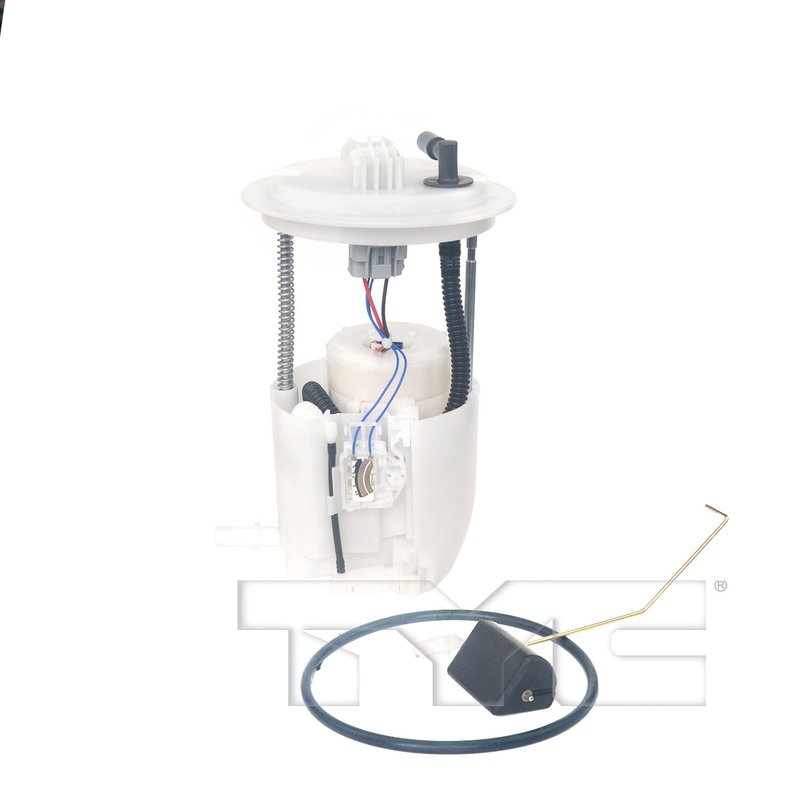

TYC 150401-A Fuel Pump Module Assembly

TYC Fuel Pump Module for Dodge Journey

The TYC CRQ Premium Fuel Pump Module Assembly is built for 2009-2019 Dodge Journey applications and supports consistent fuel delivery with OE-style fitment details. Part number 150401-A is a direct-reference fuel pump module for drivers replacing a worn or failing in-tank assembly on the Dodge Journey.

Key Features

• TYC CRQ Premium Fuel Pump Module for fuel system service
• Fits 2009-2019 Dodge Journey, N/A
• Fuel tube connection uses a quick connector for straightforward line attachment
• Includes an O-ring and fuel tank gasket
• 4-pin main connector
• Fuel level sensor resistance range: 50-1000 ohms
• Rated flow: 44.7 GPH
• Maximum air pressure: 400 kPa

Detailed Description

TYC CRQ Premium Fuel Pump Module 150401-A is engineered for the Dodge Journey fuel system and is listed for 2009-2019 model years. This fuel pump module assembly includes an O-ring and fuel tank gasket, along with a quick connector fuel tube connection and a 4-pin main connector for the vehicle’s electrical interface. The module’s fuel level sensor resistance range of 50-1000 ohms and 44.7 GPH flow rating support accurate fuel delivery and tank level reporting in the specified application.

The TYC CRQ Premium Fuel Pump Module line focuses on replacement fuel system components that match the vehicle’s connection style and operating requirements. For shoppers searching for a 2009-2019 Dodge Journey fuel pump module assembly, TYC 150401-A provides a direct-reference option for fuel delivery service. This part cross-references Airtex E7255M and Dodge 68038901AC for the same application.

Common Replacement Reasons

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent pump output
• Fuel gauge readings that no longer track tank level correctly
• Fuel pressure loss in the in-tank module
• Fuel system service on a high-mileage Dodge Journey

Installation Notes and Tips

Verify connector style, fuel tube connection type, and tank opening details before installation. Confirm the 4-pin main connector and quick connector layout match the original module on the vehicle. Replace the tank gasket and O-ring during service, and inspect the fuel tank sealing surfaces for debris or damage before reassembly.

Quality Assurance

TYC CRQ Premium fuel pump modules are built as replacement fuel system components for specified vehicle applications. Part number 150401-A is listed for 2009-2019 Dodge Journey fitment and follows the application details provided for this vehicle platform.
