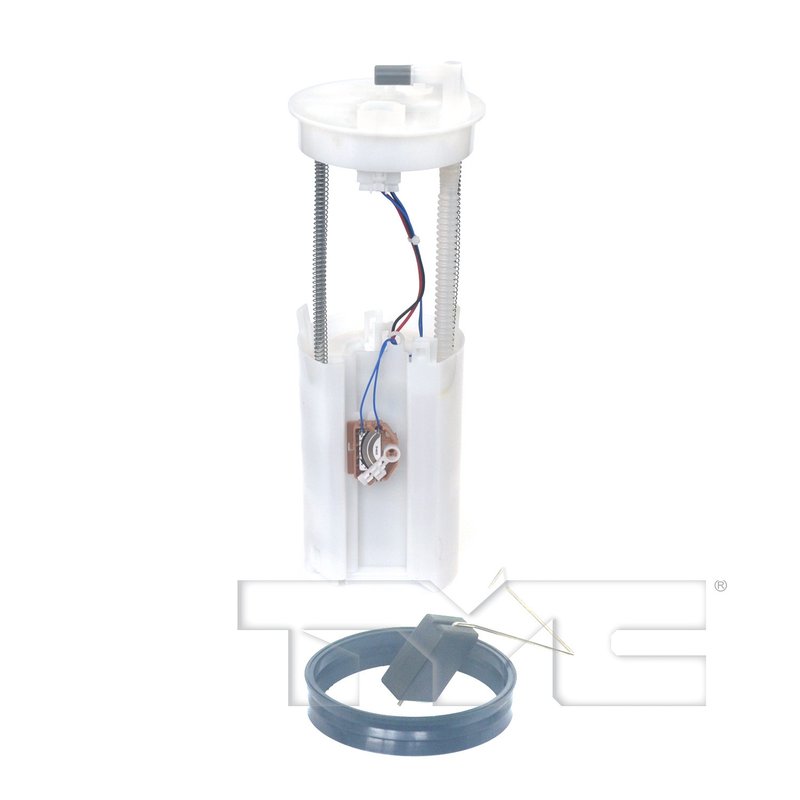

TYC 150407-A Fuel Pump Module Assembly

TYC Fuel Pump Module for Honda Ridgeline

The TYC CRQ Premium Fuel Pump Module Assembly is built for 2006-2014 Honda Ridgeline applications and supports consistent fuel delivery for daily driving and load demands. Part number 150407-A is a direct-fit fuel pump module solution for Ridgeline owners replacing a worn or failing in-tank unit.

Key Features

• TYC CRQ Premium Fuel Pump Module for Honda Ridgeline fuel system service
• Fuel tube connection uses a quick connector for straightforward line attachment
• Includes an O-ring and fuel tank gasket
• Main connector uses 5 pins
• Fuel level sensor resistance range: 20 to 785 ohms
• Maximum air pressure rating: 400 kPa
• Flow rating: 34.2 GPH
• Cross-references Airtex E8717M for the same application
• Cross-references Honda 17045-SJC-A01 for the same application

Detailed Description

TYC 150407-A is a fuel pump module assembly for the Honda Ridgeline, covering model years 2006 through 2014. The TYC CRQ Premium Fuel Pump Module line focuses on replacement fuel delivery components that match the vehicle’s electrical and fuel system requirements, including a 5-pin main connector, quick-connect fuel tube interface, and a fuel level sensor range of 20 to 785 ohms. This Honda Ridgeline fuel pump module also includes an O-ring and fuel tank gasket for service work at the tank opening.

For buyers searching for a 2006-2014 Honda Ridgeline fuel pump module assembly, part number 150407-A provides a direct replacement option for restoring fuel pressure and fuel level signal performance. It is also a practical match when replacing an OE-style module referenced by Honda 17045-SJC-A01 or Airtex E8717M.

Common Reasons for Replacement

• Hard starting or extended cranking from weak fuel delivery
• Fuel pressure loss that affects drivability
• Inaccurate fuel gauge readings from a worn level sensor
• Intermittent pump operation caused by internal wear
• Fuel system service after tank removal or module failure

Installation Notes and Tips

Verify connector pin count, fuel tube connection type, and tank opening seal requirements before installation. Confirm the Honda Ridgeline application by year and compare the original module connector and fuel level sensor specifications to part number 150407-A. Clean the tank sealing surface before installing the included fuel tank gasket and O-ring, and inspect the electrical connector for corrosion or heat damage during replacement.

Quality Assurance

TYC manufactures replacement fuel system components for OE-style service applications, and the CRQ Premium Fuel Pump Module line is built to meet the electrical and fuel delivery requirements of the listed Honda Ridgeline fitment.
