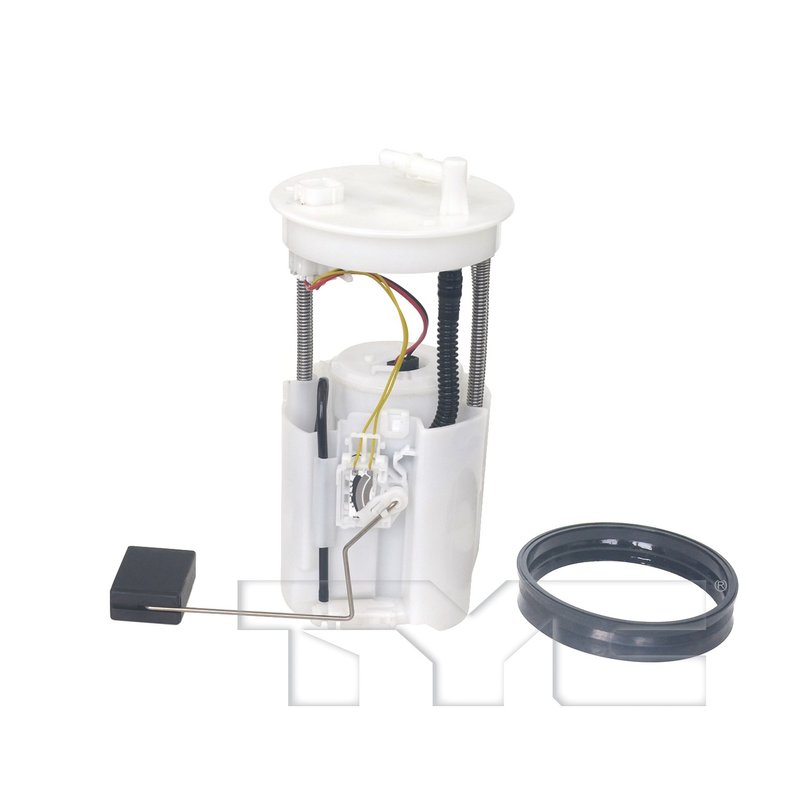

TYC 150413-A Fuel Pump Module Assembly

TYC CRQ Fuel Pump Module for Acura and Honda

The TYC CRQ Premium Fuel Pump Module Assembly is built for direct replacement in select Acura and Honda applications. It combines the fuel pump module, fuel level sensor interface, and tank sealing components needed for a clean service replacement on vehicles such as the Acura TSX and Honda Accord.

Key Features

• TYC CRQ Premium Fuel Pump Module Assembly
• Includes seal ring and fuel tank gasket
• 4-pin main connector
• Quick connector fuel tube connection
• Fuel level sensor resistance range: 20 - 780 ohms
• Fuel flow rating: 31.5 GPH
• Maximum air pressure: 331 kPa
• Cross-references Acura 17045-TA0-A00 and Honda 17045-TA0-A00

Product Details

TYC CRQ Premium Fuel Pump Module 150413-A is a fuel pump module assembly for air and fuel delivery service on select 2008-2014 Acura TSX, 2008-2012 Honda Accord, and 2012 Honda Crosstour applications. The module uses a quick connector fuel line interface, a 4-pin main connector, and a fuel level sensor resistance range of 20 - 780 ohms to match the vehicle’s electrical and fuel system requirements. The included seal ring and fuel tank gasket support a proper tank seal during replacement. This part also cross-references Airtex E8922M for the same application.

Common Replacement Reasons

• Hard starting caused by weak fuel delivery
• Fuel gauge readings that are inaccurate or inconsistent
• Fuel pressure loss from a worn pump module
• Fuel odor or seepage at the tank seal area
• Intermittent drivability issues tied to fuel supply

Installation Notes

Verify connector style, fuel tube connection type, and tank opening before installation. Confirm the vehicle’s emission configuration on 2008-2012 Honda Accord applications, since fitment includes both California Emissions equipped and w/o California Emission listings. Replace the tank seal components during service and check for proper electrical connection after installation. Fits 2009-2014 Acura TSX, N/A; Fits 2008-2012 Honda Accord, N/A; Fits 2012 Honda Crosstour, N/A; Fits 2008-2009 Honda Accord, N/A.

Quality Assurance

TYC CRQ Premium Fuel Pump Module 150413-A is engineered as a direct-fit replacement for the listed Acura and Honda applications, with OE-style connector and fuel system specifications matched to the vehicle platform.
