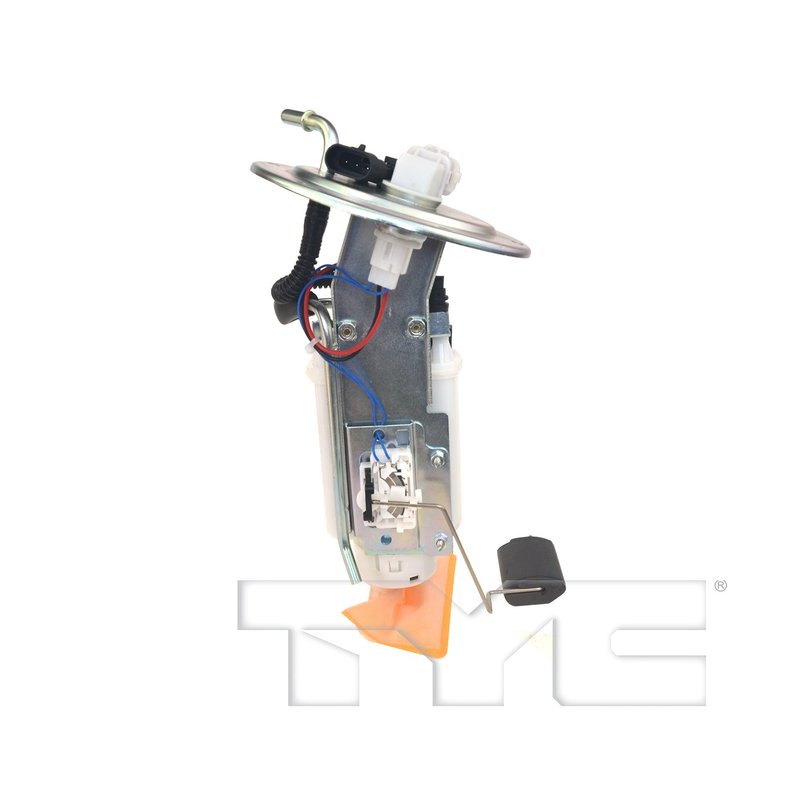

TYC 150422-A Fuel Pump Module Assembly
| Brand | TYC 150422-A |
|---|---|
| Strainer Included | Yes |
| Accessories Included | Seal ring |
| Connector Pins Qty On Main Connector | 5 pins |
| Fuel Level Sensor Resitance Range | 8 - 200 ohms |
| Fuel Tank Gasket Included | Yes |
| Fuel Tube Connection Type | Quick connector |
| Gph (gallons Per Hour Flow) | 31.5 gph |
| Maximum Air Pressure | 331 kpa |
| Product line | TYC CRQ Premium Fuel Pump Module |
| Fits | Hyundai · 6 vehicles |
Premium fuel line. TYC CRQ module for fuel delivery service and tank-side replacement.
Complete sealing components. Includes a strainer, seal ring, and fuel tank gasket for service work.
Connector-ready design. Uses a 5-pin main connector and quick fuel tube connection.
Cross-references Airtex E9031M and Hyundai 31110-0A000--DS for the same application. See all 2.
Fuel Pump Module Overview
The TYC CRQ Premium Fuel Pump Module Assembly, part number 150422-A, is a fuel delivery replacement for select Hyundai applications. It combines key service components in one assembly and is built around a quick-connector fuel tube connection, a 5-pin main connector, and an integrated fuel level sensor range of 8 to 200 ohms.
Key Features
- TYC CRQ Premium Fuel Pump Module line for fuel system service
- Includes a strainer, seal ring, and fuel tank gasket
- Quick connector fuel tube connection for streamlined installation
- 5-pin main connector for electrical interface compatibility
- 31.5 GPH flow rating and 331 kPa maximum air pressure
Detailed Description
This fuel pump module assembly is engineered for direct fuel system replacement in 2009-2010 Hyundai Sonata applications. The part number 150422-A is listed with a fuel level sensor resistance range of 8 to 200 ohms, which supports accurate fuel level signal operation within the vehicle’s fuel system. The TYC CRQ Premium Fuel Pump Module, part number 150422-A, is a practical service part for restoring fuel delivery and tank-side electrical and sealing interfaces on compatible Hyundai Sonata models.
What It Is Used For
- Restoring fuel delivery when the original module no longer maintains pressure
- Addressing fuel gauge signal issues related to the level sensor circuit
- Replacing worn tank sealing components at the fuel module opening
- Servicing a restricted or failing in-tank fuel pump module assembly
Installation Notes and Tips
Fits 2009-2010 Hyundai Sonata, N/A. Confirm connector style, fuel tube connection type, and sensor resistance range before installation. Verify tank sealing surfaces are clean and inspect the fuel tank gasket and seal ring during service. This part cross-references Airtex E9031M and Hyundai 31110-0A000--DS for the same application.
Quality Assurance
TYC CRQ Premium fuel system components are positioned as premium replacement parts within the brand’s fuel delivery line, with application-specific engineering for service fitment.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Hyundai | Sonata | GLS | Sedan | 2.4L | L4 | TYC CRQ Premium Fuel Pump Module |
| 2010 | Hyundai | Sonata | Limited | Sedan | 2.4L | L4 | TYC CRQ Premium Fuel Pump Module |
| 2010 | Hyundai | Sonata | SE | Sedan | 2.4L | L4 | TYC CRQ Premium Fuel Pump Module |
| 2009 | Hyundai | Sonata | GLS | Sedan | 2.4L | L4 | TYC CRQ Premium Fuel Pump Module |
| 2009 | Hyundai | Sonata | SE | Sedan | 2.4L | L4 | TYC CRQ Premium Fuel Pump Module |
| 2009 | Hyundai | Sonata | Limited | Sedan | 2.4L | L4 | TYC CRQ Premium Fuel Pump Module |
