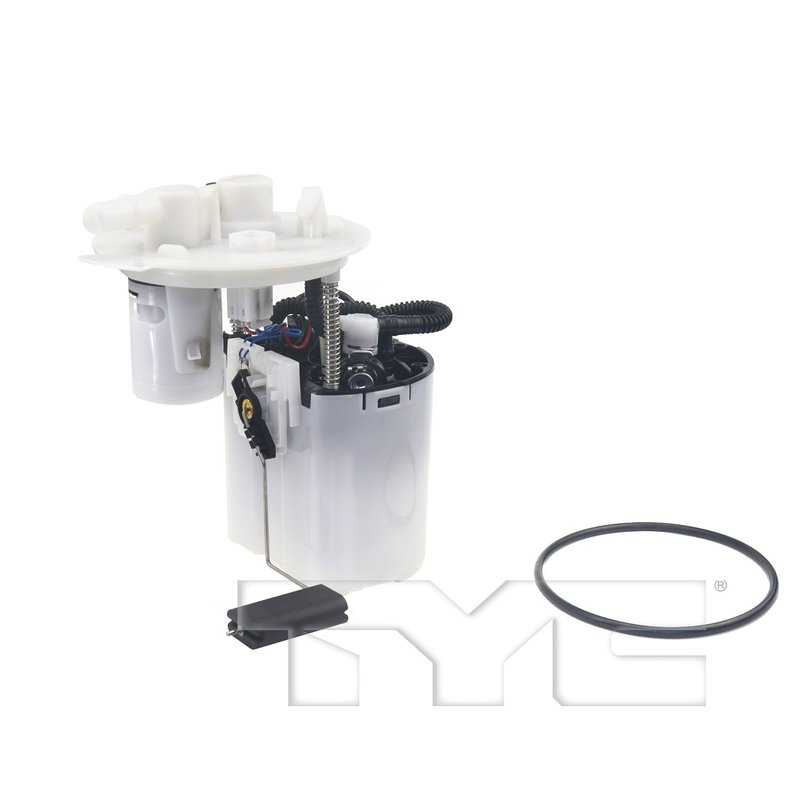

TYC 150424-A Fuel Pump Module Assembly

Overview of the TYC CRQ Premium Fuel Pump Module

The TYC CRQ Premium Fuel Pump Module 150424-A is designed specifically for Hyundai Elantra models, providing reliable fuel delivery and accurate fuel level sensing. This fuel pump module assembly integrates essential components to maintain optimal engine performance and fuel efficiency.

• Includes fuel tank gasket and O-ring for secure installation
• Equipped with a 4-pin main connector for reliable electrical connection
• Fuel level sensor resistance range from 8 to 200 ohms for precise fuel measurement
• Quick connector type fuel tube connection for easy setup
• Delivers a flow rate of 28.9 gallons per hour (gph)
• Maximum air pressure rating of 366 kPa

Detailed Features and Specifications

The TYC CRQ Premium Fuel Pump Module 150424-A is engineered to meet the specific fuel delivery requirements of Hyundai Elantra vehicles. It includes a fuel tank gasket and an O-ring to ensure a tight seal and prevent leaks during installation. The module features a 4-pin connector that supports stable electrical connections, essential for consistent pump operation. The fuel level sensor integrated within the module operates within a resistance range of 8 to 200 ohms, allowing accurate fuel level readings on the vehicle’s dashboard.

The fuel tube connection uses a quick connector design, simplifying the installation process and reducing the risk of fuel leaks. With a fuel flow rate of 28.9 gallons per hour, this module supports efficient fuel delivery to the engine. Additionally, the module is rated for a maximum air pressure of 366 kPa, ensuring durability under typical operating conditions.

About the TYC CRQ Premium Fuel Pump Module Line

The TYC CRQ Premium Fuel Pump Module line focuses on providing high-quality fuel pump assemblies that combine durability and precise fuel management. This product line is designed to meet or exceed OEM specifications, offering components like integrated fuel level sensors and secure sealing accessories. The 150424-A part number is part of this line, tailored for Hyundai Elantra models to maintain proper fuel system function and vehicle reliability.

Common Applications and Problem Resolution

• Replacement for failing or noisy fuel pump modules in Hyundai Elantra vehicles
• Fixes inaccurate fuel gauge readings caused by faulty fuel level sensors
• Resolves fuel delivery issues leading to engine hesitation or stalling
• Addresses fuel leaks due to worn or missing gaskets and seals
• Improves overall fuel system reliability and performance

Installation Notes and Tips

When installing the TYC CRQ Premium Fuel Pump Module 150424-A, ensure the fuel tank is properly drained and depressurized before removal. Use the included fuel tank gasket and O-ring to create a secure seal and prevent leaks. Verify the 4-pin connector is fully seated to maintain electrical continuity. The quick connector fuel tube should snap firmly into place without forcing. Follow vehicle-specific service manual instructions for safe and correct installation.

Quality Assurance and Warranty

TYC manufactures the CRQ Premium Fuel Pump Module line to meet stringent quality standards, ensuring compatibility and durability for Hyundai Elantra vehicles. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Consult the product packaging or TYC documentation for exact warranty terms.
