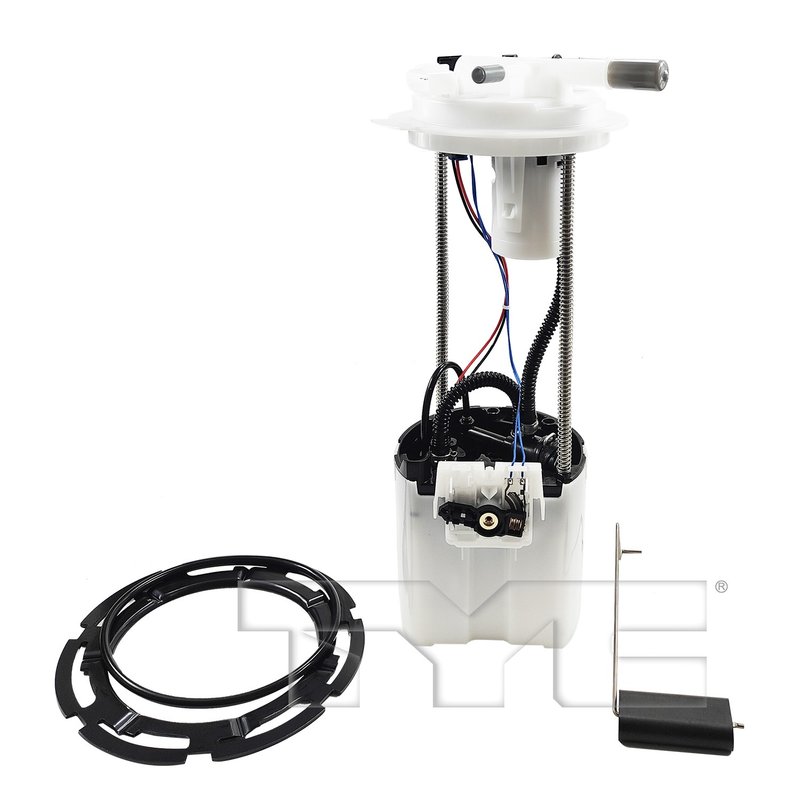

TYC 150426-A Fuel Pump Module Assembly
OE Quality 60-Day Returns
TYC

TYC 150426-A Fuel Pump Module Assembly

Brand TYC 150426-A
Strainer Included No
Accessories Included Fixed ring, o ring
Connector Pins Qty On Main Connector 4 pins
Fuel Level Sensor Resitance Range 40 - 250 ohms
Fuel Tank Gasket Included Yes
Fuel Tube Connection Type Buckle type connection
Gph (gallons Per Hour Flow) ? 180 l/h
Maximum Air Pressure 0.448±0.014 mpa
Fits Chevrolet and GMC · 40 vehicles

Fuel pump module assembly. Complete fuel delivery unit for straightforward replacement.

Buckle-type connection. Secure fuel tube attachment for a reliable fit.

Gasket included. Comes with a fuel tank gasket and installation accessories.

Cross-references 19420767 for the same application. See all 1.

$166.04Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $166.04
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Fuel Pump Module Assembly for GM Vans

TYC 150426-A is a fuel pump module assembly for select Chevrolet Express and GMC Savana vans with hinged side doors. It is built around the listed fuel delivery and sender specifications to support consistent fuel supply and accurate tank level reporting.

Key Features

  • Fuel pump module assembly for 2010-2014 Chevrolet Express 1500, Express 2500, and Express 3500 with hinged side doors
  • Also fits 2010-2014 GMC Savana 1500, Savana 2500, and Savana 3500 with hinged side doors
  • 180 L/h fuel flow rating
  • Fuel level sensor resistance range: 40-250 ohms
  • 4-pin main connector
  • Fuel tube connection uses a buckle-type connection
  • Fuel tank gasket included
  • Accessories included: fixed ring and O-ring
  • Strainer not included

Detailed Description

TYC 150426-A is a direct-fit fuel pump module assembly for GM full-size vans that use hinged side doors. It is specified for 2010-2014 Chevrolet Express 1500, Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 1500, GMC Savana 2500, and GMC Savana 3500 applications. The module includes a fuel tank gasket, fixed ring, and O-ring, and uses a 4-pin main connector with a buckle-type fuel tube connection. The sender is listed with a 40-250 ohm resistance range, and the pump flow is rated at 180 L/h. Part number 150426-A is also cross-referenced to 19420767 for the same application.

What This Part Helps Address

  • Hard starting caused by weak or inconsistent fuel delivery
  • Fuel starvation under load from a failing in-tank pump
  • Incorrect fuel gauge readings from a worn level sensor
  • Fuel leaks at the tank seal or module connection points
  • Driveability issues related to unstable fuel pressure

Installation Notes and Tips

Confirm the vehicle has hinged side doors and verify connector, fuel tube, and sender specifications before installation. Replace the tank seal components supplied with the module and inspect the tank opening, wiring, and fuel lines for wear or contamination. Because the strainer is not included, verify whether the existing strainer is serviceable or requires separate replacement. For fitment searches, this part is listed for 2010-2014 Chevrolet Express 1500, 2500, and 3500, as well as 2010-2014 GMC Savana 1500, 2500, and 3500.

Quality Assurance

TYC manufactures replacement automotive components to meet application-specific fitment and functional requirements. Part number 150426-A is built to match the listed GM van applications and sender specifications for reliable service in the fuel system.

Related reading

This part fits 40 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody TypeLitersCylindersFuel TypeNotes
2014ChevroletExpress 1500BaseStandard Cargo Van5.3LV8—w/ Hinged Side Doors
2014ChevroletExpress 2500LSStandard Passenger Van6.0LV8FLEXw/ Hinged Side Doors
2014ChevroletExpress 3500BaseExtended Cargo Van6.0LV8FLEXw/ Hinged Side Doors
2014ChevroletExpress 4500BaseCutaway6.0LV8FLEXw/ Hinged Side Doors
2014GMCSavana 1500BaseStandard Cargo Van4.3LV6GASw/ Hinged Side Doors
2014GMCSavana 2500LSStandard Passenger Van4.8LV8FLEXw/ Hinged Side Doors
2014GMCSavana 3500LTExtended Passenger Van6.0LV8FLEXw/ Hinged Side Doors
2014GMCSavana 4500BaseCutaway6.0LV8FLEXw/ Hinged Side Doors
2013ChevroletExpress 1500LSStandard Passenger Van5.3LV8—w/ Hinged Side Doors
2013ChevroletExpress 2500LTStandard Passenger Van6.0LV8FLEXw/ Hinged Side Doors
2013ChevroletExpress 3500LTStandard Passenger Van6.0LV8FLEXw/ Hinged Side Doors
2013ChevroletExpress 4500BaseCutaway6.0LV8FLEXw/ Hinged Side Doors
2013GMCSavana 1500LSStandard Passenger Van5.3LV8FLEXw/ Hinged Side Doors
2013GMCSavana 2500LSStandard Passenger Van6.0LV8FLEXw/ Hinged Side Doors
2013GMCSavana 3500BaseCutaway Van4.8LV8FLEXw/ Hinged Side Doors
2013GMCSavana 4500BaseCutaway6.0LV8FLEXw/ Hinged Side Doors
2012ChevroletExpress 1500LSStandard Passenger Van5.3LV8—w/ Hinged Side Doors
2012ChevroletExpress 2500BaseStandard Cargo Van4.8LV8FLEXw/ Hinged Side Doors
2012ChevroletExpress 3500LSStandard Passenger Van6.0LV8FLEXw/ Hinged Side Doors
2012ChevroletExpress 4500BaseCutaway6.0LV8FLEXw/ Hinged Side Doors
2012GMCSavana 1500BaseStandard Cargo Van5.3LV8FLEXw/ Hinged Side Doors
2012GMCSavana 2500LSStandard Passenger Van4.8LV8FLEXw/ Hinged Side Doors
2012GMCSavana 3500LSStandard Passenger Van4.8LV8FLEXw/ Hinged Side Doors
2012GMCSavana 4500BaseCutaway6.0LV8FLEXw/ Hinged Side Doors
2011ChevroletExpress 1500LTStandard Passenger Van5.3LV8—w/ Hinged Side Doors
2011ChevroletExpress 2500LTStandard Passenger Van4.8LV8FLEXw/ Hinged Side Doors
2011ChevroletExpress 3500LTStandard Passenger Van6.0LV8FLEXw/ Hinged Side Doors
2011ChevroletExpress 4500BaseCutaway6.0LV8FLEXw/ Hinged Side Doors
2011GMCSavana 1500BaseStandard Cargo Van5.3LV8FLEXw/ Hinged Side Doors
2011GMCSavana 2500BaseStandard Cargo Van4.8LV8FLEXw/ Hinged Side Doors
2011GMCSavana 3500BaseExtended Cargo Van4.8LV8FLEXw/ Hinged Side Doors
2011GMCSavana 4500BaseCutaway6.0LV8FLEXw/ Hinged Side Doors
2010ChevroletExpress 1500LTStandard Passenger Van5.3LV8—w/ Hinged Side Doors
2010ChevroletExpress 2500BaseExtended Cargo Van6.0LV8FLEXw/ Hinged Side Doors
2010ChevroletExpress 3500LTStandard Passenger Van6.0LV8FLEXw/ Hinged Side Doors
2010ChevroletExpress 4500BaseCutaway6.0LV8FLEXw/ Hinged Side Doors
2010GMCSavana 1500BaseStandard Cargo Van5.3LV8FLEXw/ Hinged Side Doors
2010GMCSavana 2500BaseExtended Cargo Van6.0LV8FLEXw/ Hinged Side Doors
2010GMCSavana 3500LSStandard Passenger Van6.0LV8FLEXw/ Hinged Side Doors
2010GMCSavana 4500BaseCutaway6.0LV8FLEXw/ Hinged Side Doors
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
19420767
