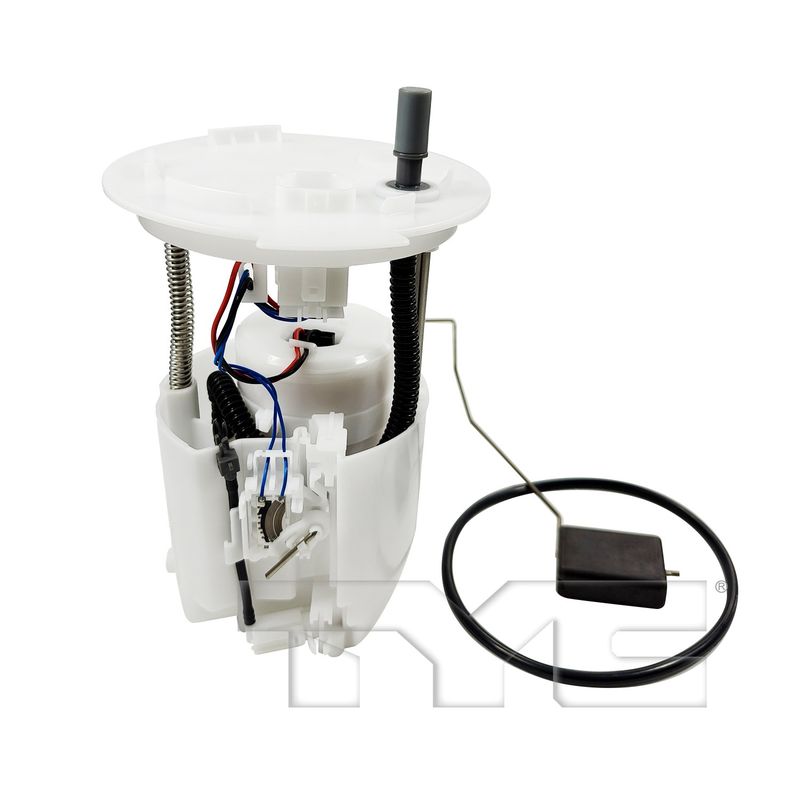

TYC 150435-A Fuel Pump Module Assembly
| Brand | TYC 150435-A |
|---|---|
| Strainer Included | Yes |
| Accessories Included | Yes |
| Connector Pins Qty On Main Connector | 4 pins |
| Fuel Level Sensor Resitance Range | 10-178ohms |
| Fuel Tank Gasket Included | Yes |
| Fuel Tube Connection Type | Buckle type connection |
| Gph (gallons Per Hour Flow) | ?45gph |
| Fits | Ford · 8 vehicles |
Direct-fit replacement. Built for straightforward fuel system service on compatible applications.
Complete module service. Includes the strainer, tank gasket, and listed accessories.
Fuel level sensor range. Uses a 10-178 ohm resistance range for level signal matching.
Cross-references DG9Z 9H307 AC and DG9Z 9H307 Z for the same application. See all 2.
Fuel Pump Module Assembly for Ford Fusion
This TYC fuel pump module assembly is built for direct replacement service on compatible Ford Fusion applications. It combines the pump module, strainer, fuel level sensor range, and tank sealing components needed for a complete in-tank fuel delivery repair.
Key Features
- Fuel pump module assembly for fuel delivery system service
- Includes strainer, fuel tank gasket, and listed accessories
- 4-pin main connector for electrical connection
- Fuel level sensor resistance range: 10-178 ohms
- Buckle-type fuel tube connection for secure attachment
- Rated flow output: 45 GPH
Detailed Description
TYC part number 150435-A is a fuel pump module assembly for 2013-2020 Ford Fusion applications. It is designed around the fuel tank module layout and includes the components commonly replaced during in-tank fuel system service. The 4-pin connector, buckle-type fuel tube connection, and 10-178 ohm fuel level sensor range support proper electrical and fuel system integration. Part number 150435-A also cross-references Monroe Shocks & Struts (e.g., DG9Z 9H307 AC, DG9Z 9H307 Z) for the same application.
Common Issues It May Address
- Hard starting caused by weak fuel delivery
- Engine stalling from inconsistent pump output
- Fuel gauge readings that do not match tank level
- Fuel pressure loss from a worn module assembly
- Fuel system service needs tied to a leaking tank seal or strainer wear
Installation Notes and Tips
Verify connector pin count, fuel tube connection style, and fuel level sensor range before installation. Confirm the application against the vehicle’s fuel system configuration for 2013-2020 Ford Fusion models. Replace the tank gasket during service to maintain a proper seal. Use the part number 150435-A to confirm the correct module before installation.
Quality Assurance
TYC is known for replacement components built to meet OE-style service requirements. Part number 150435-A is engineered for direct-fit fuel system replacement on compatible Ford Fusion vehicles.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|---|
| 2020 | Ford | Fusion | SE | Sedan | — | 2.5L | L4 | — |
| 2019 | Ford | Fusion | SEL | Sedan | — | 2.5L | L4 | — |
| 2018 | Ford | Fusion | SE | Sedan | — | 2.5L | L4 | — |
| 2017 | Ford | Fusion | SE | Sedan | — | 2.5L | L4 | — |
| 2016 | Ford | Fusion | S | Sedan | FWD | 2.5L | L4 | — |
| 2015 | Ford | Fusion | SE | Sedan | FWD | 2.5L | L4 | — |
| 2014 | Ford | Fusion | SE | Sedan | FWD | 2.5L | L4 | — |
| 2013 | Ford | Fusion | S | Sedan | FWD | 2.5L | L4 | — |
