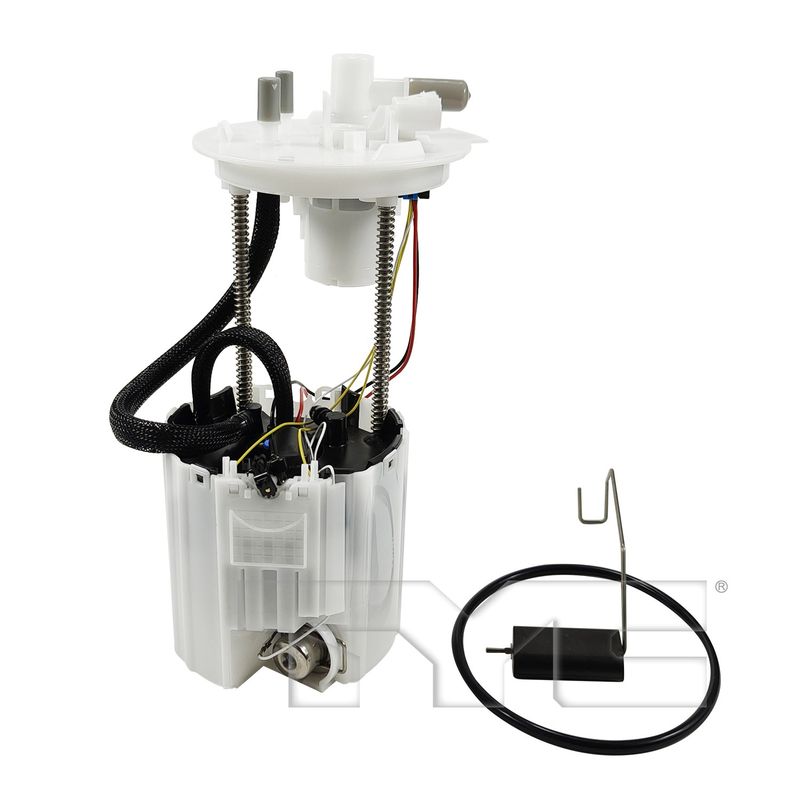

TYC 150442-A Fuel Pump Module Assembly
| Brand | TYC 150442-A |
|---|---|
| Strainer Included | Yes |
| Accessories Included | No |
| Connector Pins Qty On Main Connector | 4 pins |
| Fuel Level Sensor Resitance Range | 38-250ohms |
| Fuel Tank Gasket Included | Yes |
| Fuel Tube Connection Type | Quick connect |
| Gph (gallons Per Hour Flow) | ?50gph |
| Fits | Buick, Cadillac, and Chevrolet · 10 vehicles |
Direct replacement. Fuel pump module assembly for fitment-specific fuel system service.
Complete sealing components. Includes a fuel strainer and tank gasket for module installation.
Connector-specific design. Uses a 4-pin main connector with quick-connect fuel tube attachment.
Cross-references 13578363 and 13578371 for the same application. See all 2.
Fuel Pump Module Assembly Overview
This TYC fuel pump module assembly is built for direct replacement service on select Buick, Cadillac, and Chevrolet applications. It combines the pump module, fuel level sensor interface, and tank sealing components needed for a clean fuel system repair.
Part number 150442-A is a fitment-specific replacement for vehicles that use a 4-pin main connector and quick-connect fuel tube connection. It is listed for Buick LaCrosse, Buick Regal, Cadillac XTS, and Chevrolet Malibu applications.
Key Features
- Fuel pump module assembly for in-tank fuel delivery service
- Includes a fuel strainer for inlet filtration
- Fuel tank gasket included for sealing at installation
- 4-pin main connector configuration
- Quick-connect fuel tube connection type
- Fuel level sensor resistance range: 38-250 ohms
- Approximate flow rating: 50 GPH
Detailed Description
TYC 150442-A is a replacement fuel pump module assembly for select Buick LaCrosse, Buick Regal, Cadillac XTS, and Chevrolet Malibu models. It is specified with a 4-pin main connector, quick-connect fuel line attachment, and a fuel level sensor resistance range of 38-250 ohms, making it a fitment-focused option for restoring fuel delivery and tank level reporting in the original system layout. The included strainer and tank gasket support a complete service at the module interface.
This part cross-references GM numbers 13578363 and 13578371 for the same application.
What It Is Used For
- Restoring fuel delivery when the original module no longer maintains pressure
- Addressing inaccurate fuel level readings from a worn sensor circuit
- Replacing a leaking or deteriorated tank seal at the module opening
- Correcting fuel starvation caused by a restricted or damaged inlet strainer
- Replacing a failed module on select Buick, Cadillac, and Chevrolet vehicles
Installation Notes and Tips
Verify connector pin count, fuel tube connection style, and fuel level sensor resistance before installation. Confirm tank compatibility and match the application to the listed fitment for Buick LaCrosse, Buick Regal, Cadillac XTS, or Chevrolet Malibu. Clean the tank sealing surface before installing the new gasket and inspect the fuel system for contamination that could affect the new module.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Buick | LaCrosse | Premium | Sedan | 3.6L | V6 | — |
| 2015 | Buick | LaCrosse | Premium | Sedan | 3.6L | V6 | — |
| 2014 | Buick | LaCrosse | Leather | Sedan | 3.6L | V6 | — |
| 2013 | Buick | LaCrosse | CXS | Sedan | 3.6L | V6 | — |
| 2013 | Buick | Regal | GS | Sedan | 2.0L | L4 | — |
| 2013 | Cadillac | XTS | Luxury | Sedan | 3.6L | V6 | — |
| 2013 | Chevrolet | Malibu | LTZ | Sedan | 2.0L | L4 | — |
| 2012 | Buick | LaCrosse | Leather | Sedan | 3.6L | V6 | — |
| 2012 | Buick | Regal | Premium | Sedan | 2.4L | L4 | — |
| 2011 | Buick | Regal | CXL | Sedan | 2.0L | L4 | — |
