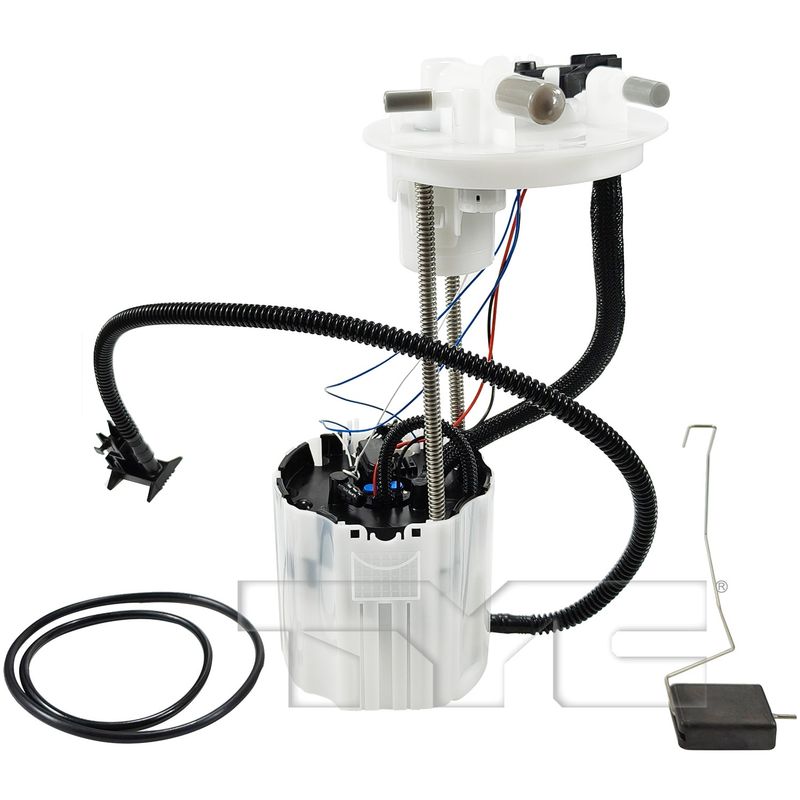

TYC 150444-A Fuel Pump Module Assembly

Fuel Pump Module Assembly Overview

This TYC fuel pump module assembly is built for direct replacement service on select Chevrolet and GMC applications. It combines the pump module, fuel level sensor interface, and tank sealing components needed for a complete in-tank fuel delivery repair.

Key Features

• Includes a fuel strainer for cleaner fuel delivery.
• Fuel tank gasket included for proper sealing at installation.
• Quick-connect fuel tube connection for straightforward line attachment.
• 4-pin main connector supports the vehicle electrical interface.
• Fuel level sensor resistance range: 40-250 ohms.
• Rated flow output: approximately 32 GPH.

Detailed Description

Compatible with 2010-2017 Chevrolet Equinox and 2010-2017 GMC Terrain, this fuel pump module assembly is a fitment-based replacement for vehicles using the specified in-tank configuration. The TYC 150444-A is designed to restore fuel delivery performance and fuel level signal operation when the original module is worn, contaminated, or no longer maintaining proper output. The quick-connect fuel tube connection and 4-pin main connector support a clean replacement process, while the included strainer and tank gasket address key sealing and filtration points. Part number 150444-A is also cross-referenced to 13506688 for the same application.

Common Repair Uses

• Hard starting caused by weak or inconsistent fuel delivery.
• Fuel starvation from a failing in-tank pump module.
• Incorrect or erratic fuel gauge readings from sensor wear.
• Fuel odor or seepage related to a compromised tank seal.
• Restricted flow from a contaminated or deteriorated strainer.

Installation Notes and Tips

Verify connector style, fuel tube connection type, and tank sealing requirements before installation. Confirm fitment against the vehicle application and compare the original module configuration to the replacement unit. Use the listed fitment for 2010-2017 Chevrolet Equinox and 2010-2017 GMC Terrain, and match the electrical and fuel line interfaces during service.

Quality Assurance

TYC manufactures replacement components for automotive fuel system service with application-specific fitment and OE-style connection details. Part number 150444-A is built for the listed Chevrolet Equinox and GMC Terrain applications.
