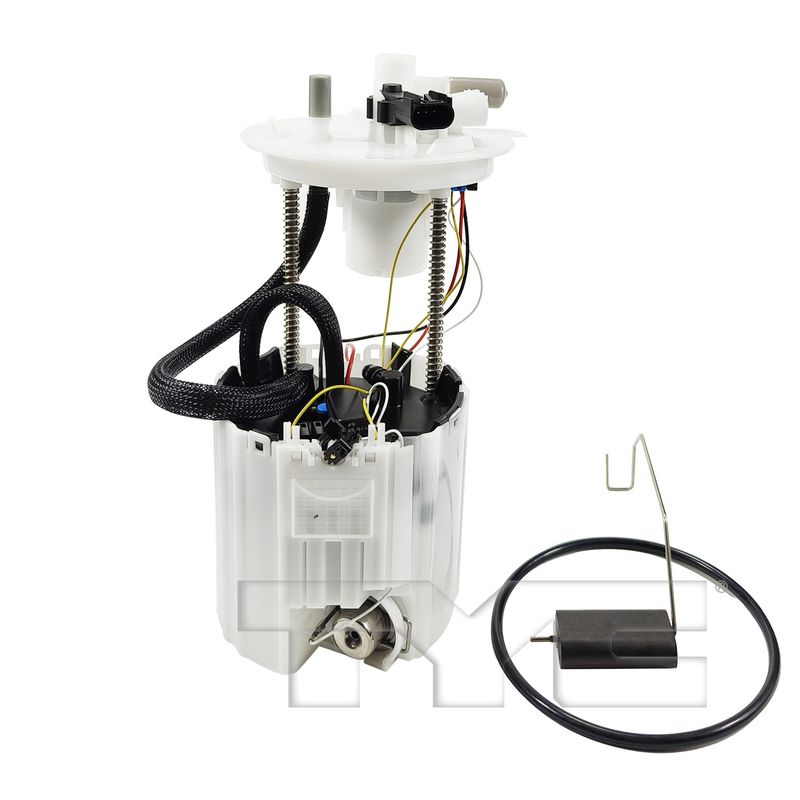

TYC 150446-A Fuel Pump Module Assembly

Fuel Pump Module Assembly Overview

This TYC fuel pump module assembly is built for direct replacement service in select Buick and Chevrolet applications. It combines the pump module, fuel level sensor interface, and tank sealing components needed for a proper fuel system repair.

Part number 150446-A is listed for Buick Cascada, Buick Verano, and Chevrolet Cruze applications, including Cruze Limited coverage with the noted RPO-NL6 exclusion. If you are replacing a worn fuel pump module assembly on a Chevrolet Cruze or Buick Verano, this unit provides the key connections and sealing features required for the job.

Key Features

• Fuel pump module assembly for fuel delivery system repair
• Strainer included for inlet-side filtration
• Fuel tank gasket included for sealing at the tank opening
• Quick-connect fuel tube connection for straightforward line attachment
• 4-pin main connector for electrical interface
• Fuel level sensor resistance range: 40-250 ohms
• Rated flow: approximately 42.3 GPH

Detailed Description

TYC 150446-A is a fuel pump module assembly engineered for select compact and midsize GM vehicles. The module includes a strainer, accessories, and a fuel tank gasket, helping restore fuel delivery and tank sealing in one service part. The quick-connect fuel tube connection and 4-pin main connector support a clean replacement process when servicing the fuel system.

Fitment includes 2011-2016 Chevrolet Cruze applications with a specific note for 2011, 2013, and 2016 Cruze coverage excluding RPO-NL6, plus 2014-2015 Cruze, 2013-2017 Buick Verano, and 2016-2019 Buick Cascada. Part number 150446-A also cross-references GM numbers 13510661 and 13510671 for the same application.

What It Helps Fix

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent pump output
• Fuel gauge errors related to the module’s level sensor circuit
• Fuel odor or seepage at the tank opening when the seal is worn
• Poor drivability from restricted fuel flow

Installation Notes and Quality

Verify the vehicle’s fitment details and the RPO-NL6 note before installation. Confirm connector style, fuel tube connection type, and tank sealing surfaces match the original configuration. Part number 150446-A is intended for direct replacement service in the listed Buick and Chevrolet applications.

TYC supplies replacement fuel system components for service applications that require correct electrical connection, fuel line attachment, and tank sealing. This part cross-references GM 13510661 and 13510671 for the same application.
