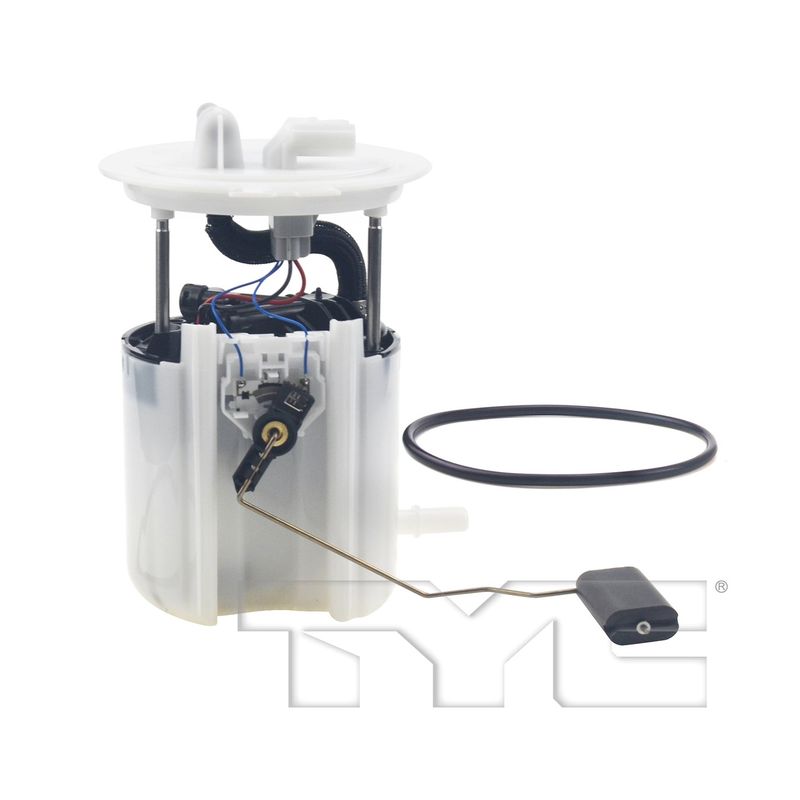

TYC 150450-A Fuel Pump Module Assembly

Fuel Pump Module Assembly Overview

TYC fuel pump module assembly 150450-A is a direct-fit replacement for select Dodge and Jeep applications. It is built for vehicles that need stable fuel delivery, accurate level sensing, and a secure tank connection.

Compatible With 2016-2026 Dodge Durango, 2017-2021 Jeep Grand Cherokee, and 2022 Jeep Grand Cherokee WK. Part number 150450-A is also cross-referenced to Mopar 68535771AB for the same application.

Key Features

• Fuel pump module assembly for integrated fuel delivery and level sensing.
• Fuel tank gasket included for a cleaner tank-side seal.
• Buckle-type fuel tube connection for secure line attachment.
• 4-pin main connector for the specified electrical interface.
• Fuel level sensor resistance range: 990-50.
• TYC 150450-A supports applications requiring 160 ±20 GPH flow and 0.414 ±0.014 maximum air pressure.

Detailed Description

This TYC fuel pump module assembly 150450-A is engineered for select Dodge Durango and Jeep Grand Cherokee applications where the fuel pump, sender, and tank sealing components are serviced as a unit. The module includes a fuel tank gasket and uses a buckle-type fuel tube connection, helping maintain a secure connection at the tank interface. With a 4-pin main connector and a specified fuel level sensor resistance range, it is built to match the electrical and sensing requirements of the listed vehicles. The 150450-A part number should be verified against the original unit before installation.

Common Issues This Part May Address

• Hard starting caused by weak or inconsistent fuel delivery.
• Fuel gauge readings that do not match the tank level.
• Fuel pressure loss related to a worn module assembly.
• Fuel odor or seepage at the tank connection area.
• Electrical connection problems at the pump module interface.

Installation Notes and Tips

Confirm fitment by year, model, and connector configuration before replacing the module. Inspect the tank opening, electrical connector, and fuel line connection points for wear or damage during service. Replace the tank gasket during installation to help maintain a proper seal. Follow the vehicle service procedure for fuel system depressurization and module removal.

Quality Assurance

TYC supplies replacement components for fuel system service with application-specific fitment and defined electrical and flow specifications. Part number 150450-A is listed for direct replacement use in the vehicles shown above.
