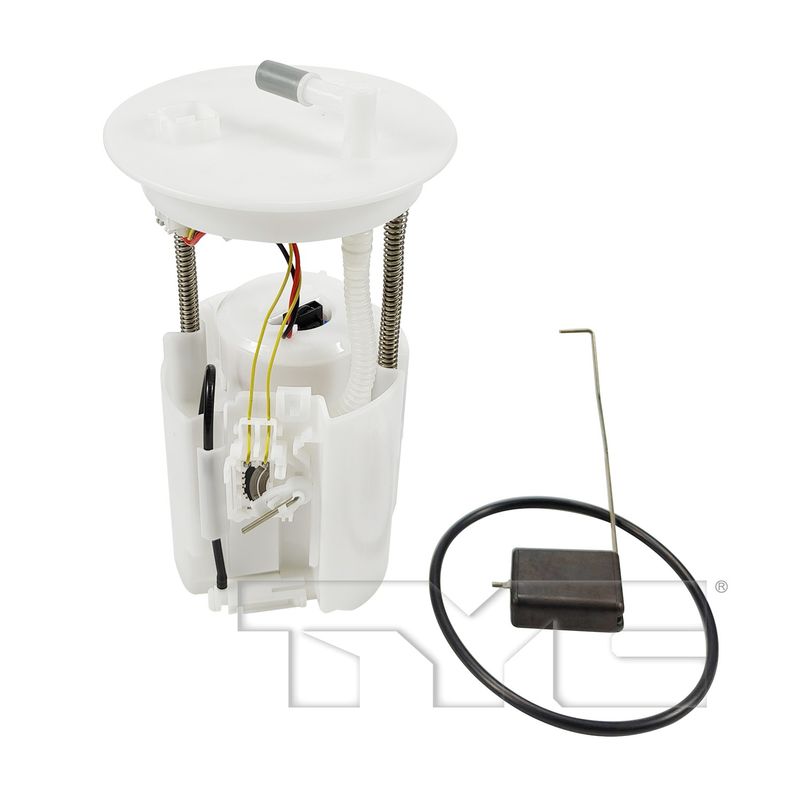

TYC 150457-A Fuel Pump Module Assembly
| Brand | TYC 150457-A |
|---|---|
| Strainer Included | No |
| Accessories Included | Yes |
| Connector Pins Qty On Main Connector | 4 |
| Fuel Level Sensor Resitance Range | 780-20 |
| Fuel Tank Gasket Included | Yes |
| Fuel Tube Connection Type | Buckle type connection |
| Gph (gallons Per Hour Flow) | 120±20 |
| Maximum Air Pressure | 0.414±0.014 |
| Fits | Honda · 5 vehicles |
Direct replacement. Built for service on select fuel system applications with fitment-specific connections.
Fuel system details. Includes a 4-pin connector, buckle-type fuel tube connection, and tank gasket.
Measured performance. Specified at 120±20 GPH with a fuel level sensor resistance range of 780-20.
Cross-references Carter P76835M, Carter P76836M and Delphi FG1544 for the same application. See all 9.
Fuel Pump Module Assembly Overview
This TYC fuel pump module assembly, part number 150457-A, is built for direct replacement service on select Honda Accord applications. It is specified for California Emissions vehicles and uses a buckle-type fuel tube connection with a 4-pin main connector.
Compatible with 2013-2017 Honda Accord, this fuel pump module assembly supports consistent fuel delivery and fuel level signal transfer. The included tank gasket and accessories help streamline replacement work on the fuel system.
Key Features
- Fuel pump module assembly for fuel delivery system service
- Buckle-type fuel tube connection for secure attachment
- 4-pin main connector for electrical interface
- Fuel tank gasket included for sealing at installation
- Fuel level sensor resistance range: 780-20
- Rated flow: 120±20 GPH
- Maximum air pressure: 0.414±0.014
Detailed Description
TYC part number 150457-A is a fuel pump module assembly for 2013-2017 Honda Accord models with California Emissions. It is intended for fuel system replacement where stable fuel delivery and accurate fuel level reporting are required. The module uses a buckle-type fuel tube connection and a 4-pin main connector, and it includes a tank gasket plus accessories to support the service process.
For buyers searching for a Honda Accord fuel pump module assembly, 150457-A provides the core components needed for a fuel tank service on the specified application. This part number 150457-A also cross-references Carter P76835M and Delphi FG1544 for the same application.
What It Is Used For
- Replacing a worn or failing fuel pump module
- Restoring fuel delivery after pressure or flow loss
- Correcting inaccurate fuel level readings
- Addressing fuel system issues tied to connector or tube connection wear
- Servicing a leaking tank seal at the module interface
Installation Notes and Tips
Verify California Emissions fitment before ordering. Confirm the 4-pin connector, buckle-type fuel tube connection, and tank opening configuration match the original unit. Clean the tank sealing surface before installation and inspect the electrical connector and fuel line routing during replacement.
Quality Assurance
TYC manufactures replacement fuel system components for service applications that require fitment-specific replacement parts and consistent electrical and fuel delivery specifications.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|---|
| 2017 | Honda | Accord | EX | Coupe | — | 2.4L | L4 | California Emissions |
| 2016 | Honda | Accord | Sport | Sedan | Automatic CVT | 2.4L | L4 | California Emissions |
| 2015 | Honda | Accord | EX-L | Sedan | Automatic CVT | 2.4L | L4 | California Emissions |
| 2014 | Honda | Accord | LX | Sedan | Automatic | 2.4L | L4 | California Emissions |
| 2013 | Honda | Accord | EX-L | Sedan | Automatic | 2.4L | L4 | California Emissions |
