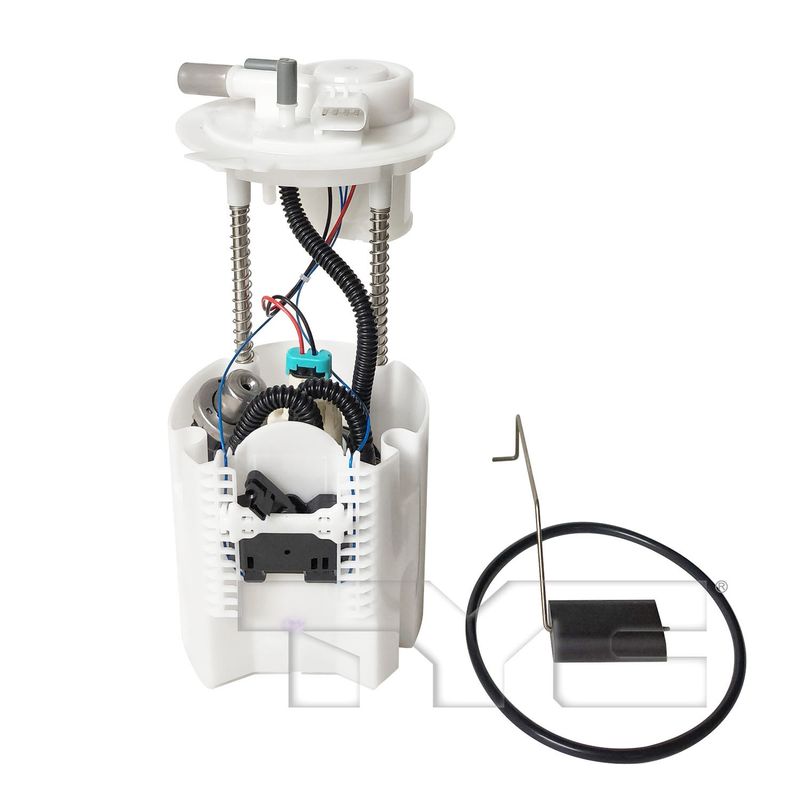

TYC 150460-A Fuel Pump Module Assembly

Fuel pump module overview

TYC fuel pump module assembly 150460-A is built for direct replacement applications that require a complete in-tank fuel delivery module. It combines the pump, level-sensing components, and connection points needed for a clean service replacement on select Chrysler and Dodge vehicles.

Compatible With 2015-2017 Chrysler 200 and 2013-2016 Dodge Dart. This part number, 150460-A, is a fitment-specific option for vehicles that use the matching module configuration.

Key features

• Fuel pump module assembly for in-tank fuel delivery service
• Fuel tank gasket included for sealing at installation
• Buckle-type fuel tube connection for secure line attachment
• 4-pin main connector for the specified electrical interface
• Fuel level sensor resistance range: 990-50
• Accessories included for the module assembly

Detailed description

TYC 150460-A is a fuel pump module assembly intended for vehicles that use an integrated pump and sender unit. The module is specified with a 205-250 GPH flow range and a maximum air pressure rating of 0.345-0.483, giving technicians the core service details needed to match the replacement to the original fuel system layout. The included tank gasket supports a proper seal at the tank opening, while the buckle-type fuel tube connection and 4-pin connector help maintain the original connection style. For Chrysler 200 and Dodge Dart applications, 150460-A provides a direct-fit service path when the original module has failed or the fuel delivery system needs replacement.

This part cross-references Chrysler (e.g., 68166589AD) for the same application.

What it is used for

• Restoring fuel delivery when the original pump no longer maintains pressure
• Replacing a worn fuel level sender that causes inaccurate gauge readings
• Addressing hard-start or no-start conditions tied to fuel supply loss
• Correcting fuel system issues caused by a leaking tank seal at the module
• Replacing a damaged module connector or fuel tube connection interface

Installation notes and quality assurance

Verify connector pin count, fuel tube connection style, and fuel level sensor resistance before installation. Confirm the vehicle’s original module configuration matches the listed fitment for Chrysler 200 and Dodge Dart applications. Clean the tank sealing surface before installing the included gasket to help ensure a proper seal.

TYC manufactures replacement components for service applications that require OE-style fit and function. Part number 150460-A should be matched to the vehicle’s original fuel system specifications before installation.
