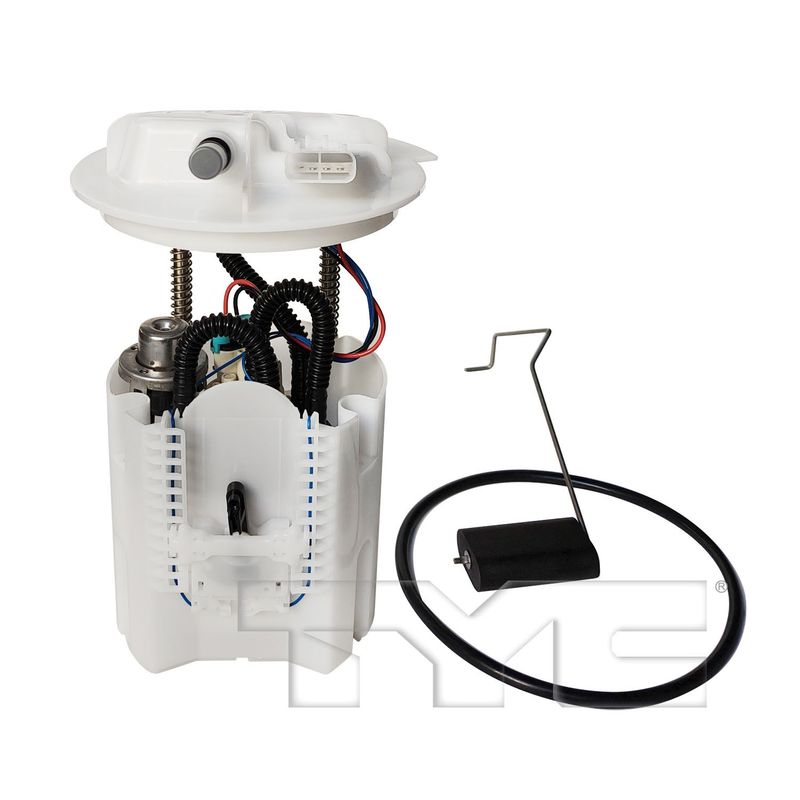

TYC 150474-A Fuel Pump Module Assembly
| Brand | TYC 150474-A |
|---|---|
| Strainer Included | No |
| Accessories Included | Yes |
| Connector Pins Qty On Main Connector | 4 |
| Fuel Level Sensor Resitance Range | 990-50 |
| Fuel Tank Gasket Included | Yes |
| Fuel Tube Connection Type | Buckle type connection |
| Gph (gallons Per Hour Flow) | ?120 |
| Fits | Chrysler and Dodge · 16 vehicles |
Direct replacement. Fuel pump module assembly with application-specific electrical and fuel line connections.
Sealing included. Fuel tank gasket is included for a cleaner installation at the tank opening.
TYC engineering. Built with a 4-pin main connector and buckle-type fuel tube connection.
Cross-references Carter P76743M, Delphi FG0890 and Mopar 68060507AB for the same application. See all 5.
Fuel Pump Module Assembly Overview
This TYC fuel pump module assembly is built for direct replacement service on select Chrysler and Dodge minivans. It matches the application with a fuel level sensor range, tank gasket, and fuel tube buckle connection details that support a proper repair.
Key Features
- Fuel pump module assembly for fuel delivery system service
- Fuel tank gasket included for sealing at installation
- Buckle-type fuel tube connection for secure line attachment
- 4-pin main connector for electrical interface
- Fuel level sensor resistance range: 990-50
- Accessories included for application-specific service needs
Fitment Details
- Fits 2011-2020 Dodge Grand Caravan, N/A
- Fits 2011-2016 Chrysler Town & Country, N/A
What This Part Helps Resolve
- Hard starting caused by weak fuel delivery
- Engine stalling from inconsistent pump output
- Incorrect fuel gauge readings from a worn sender circuit
- Fuel system leaks at the tank seal area
- Fuel line connection issues at the module outlet
Installation Notes and Tips
Confirm connector pin count, fuel tube connection style, and fuel level sensor range before installation. Verify tank condition and clean the sealing surface before fitting the included gasket. This part cross-references Carter (e.g., P76743M) and Delphi (e.g., FG0890) for the same application.
Quality Assurance
TYC supplies replacement fuel system components for service applications that require fitment-specific electrical and connection details. Part number 150474-A identifies this module assembly for ordering and verification.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Dodge | Grand Caravan | Crew | Mini Passenger Van | 3.6L | V6 | — |
| 2019 | Dodge | Grand Caravan | GT | Mini Passenger Van | 3.6L | V6 | — |
| 2018 | Dodge | Grand Caravan | SXT | Mini Passenger Van | 3.6L | V6 | — |
| 2017 | Dodge | Grand Caravan | Crew Plus | Mini Passenger Van | 3.6L | V6 | — |
| 2016 | Chrysler | Town & Country | Limited | Mini Passenger Van | 3.6L | V6 | — |
| 2016 | Dodge | Grand Caravan | American Value Package | Mini Passenger Van | 3.6L | V6 | — |
| 2015 | Chrysler | Town & Country | Touring Piel | Mini Passenger Van | 3.6L | V6 | — |
| 2015 | Dodge | Grand Caravan | SE Plus | Mini Passenger Van | 3.6L | V6 | — |
| 2014 | Chrysler | Town & Country | S | Mini Passenger Van | 3.6L | V6 | — |
| 2014 | Dodge | Grand Caravan | SE Canada Value Package | Mini Passenger Van | 3.6L | V6 | — |
| 2013 | Chrysler | Town & Country | Limited | Mini Passenger Van | 3.6L | V6 | — |
| 2013 | Dodge | Grand Caravan | Canada Value Package | Mini Passenger Van | 3.6L | V6 | — |
| 2012 | Chrysler | Town & Country | Touring | Mini Passenger Van | 3.6L | V6 | — |
| 2012 | Dodge | Grand Caravan | Crew | Mini Passenger Van | 3.6L | V6 | — |
| 2011 | Chrysler | Town & Country | Touring | Mini Passenger Van | 3.6L | V6 | — |
| 2011 | Dodge | Grand Caravan | C/V | Mini Cargo Van | 3.6L | V6 | — |
