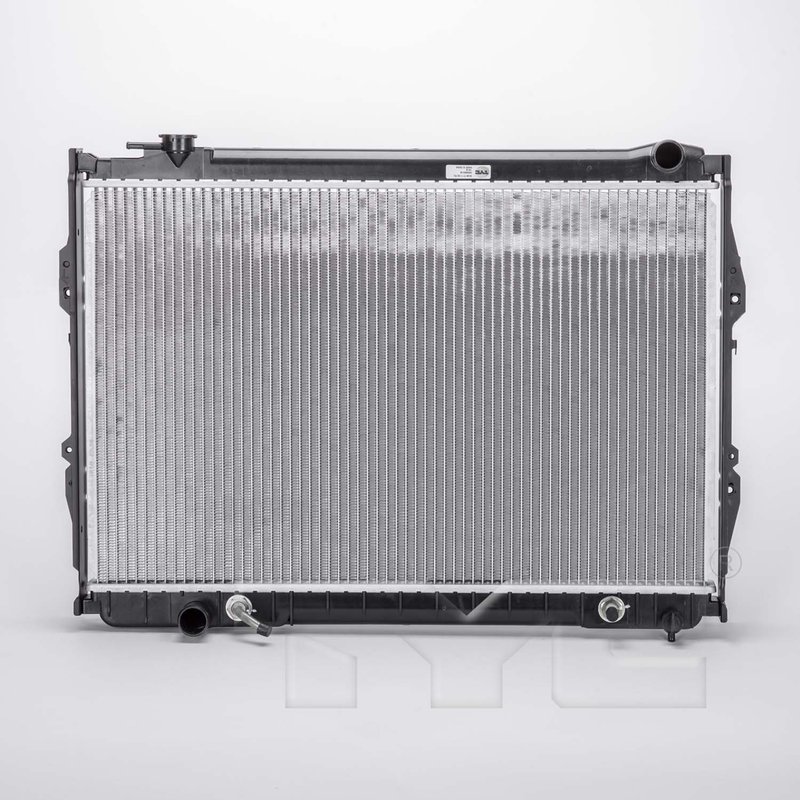

TYC 1512 Radiator - Primary
| Brand | TYC 1512 |
|---|---|
| Position | Primary |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.13x28.31 |
| Core Height (in) | 27.2 |
| Core Length (in) | 17.72 |
| Core Thickness (in) | 1.26 |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.38 |
| Remarks | Also fit 2133 |
| Toc Distance (in) | 16.73 |
| Top Header | 2.13x28.31 |
| Total Fin Row Count | 63 |
| Total Tube Count | 62 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 32x2 |
| Product line | TYC Radiator |
| Fits | Toyota · 14 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Concentric oil cooler. Includes a transmission oil cooler integrated into the radiator.
Downflow design. Engineered for straightforward coolant flow through the core.
Cross-references APDI 8011512, CSF 2193 and DENSO 221-4102 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Toyota T100
The TYC Radiator 1512 is a direct-fit cooling replacement for select Toyota T100 applications. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling through the radiator.
Compatible with 1993-1998 Toyota T100 applications, this TYC Radiator 1512 is built around the listed OE-style dimensions and hose-clamp inlet and outlet connections for a straightforward replacement. It also cross-references Toyota 16410-0W051 for the same application.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections
- Single-row core layout with OE-style dimensions
- Remarks note: also fits 2133
Detailed Description
TYC Radiator 1512 is engineered for Toyota T100 cooling-system service where a radiator with integrated transmission oil cooling is required. The core measures 27.2 inches high, 17.72 inches long, and 1.26 inches thick, with a 1.38-inch inlet and outlet diameter. The aluminum core, 62 total tubes, and downflow flow configuration support heat rejection in normal driving and towing conditions. This part is listed for 1993-1994 Toyota T100, Primary, and 1995-1998 Toyota T100, N/A.
For shoppers searching for a Toyota T100 radiator replacement, TYC 1512 provides a fitment-specific option for the 1993-1998 Toyota T100 platform. The part number 1512 is also referenced by several interchange numbers, including Spectra Premium CU1512.
What It Helps Address
- Overheating caused by a worn or leaking radiator
- Transmission fluid temperature control through the integrated cooler
- Coolant loss from cracked tanks or aged core components
- Poor heat dissipation from a restricted or damaged radiator core
- Cooling-system service on a Toyota T100 with OE-style connections
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet size, and transmission cooler routing before installation. Confirm the vehicle is a 1993-1998 Toyota T100 and match the listed position and notes, especially for 1993-1994 Primary and 1995-1998 N/A applications. Inspect hoses, clamps, and coolant condition during replacement, and flush the cooling system if contamination is present.
Quality Assurance
TYC Radiator 1512 is built to match the listed application details for the Toyota T100 platform and is identified with OE cross-reference information for parts matching. Use the fitment data and dimensional specifications to confirm application before installation.
| Year | Make | Model | Submodel | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 1998 | Toyota | T100 | — | — | RWD | — | 2.7L | L4 | N/A | Remarks: Also Fit 2133; TYC Radiator |
| 1998 | Toyota | T100 | — | — | RWD | — | 3.4L | V6 | N/A | Remarks: Also Fit 2133; TYC Radiator |
| 1998 | Toyota | T100 | — | — | 4WD | — | 3.4L | V6 | N/A | Remarks: Also Fit 2133; TYC Radiator |
| 1997 | Toyota | T100 | — | — | RWD | — | 3.4L | V6 | N/A | Remarks: Also Fit 2133; TYC Radiator |
| 1997 | Toyota | T100 | — | — | 4WD | — | 3.4L | V6 | N/A | Remarks: Also Fit 2133; TYC Radiator |
| 1997 | Toyota | T100 | — | — | RWD | — | 2.7L | L4 | N/A | Remarks: Also Fit 2133; TYC Radiator |
| 1996 | Toyota | T100 | — | — | RWD | — | 2.7L | L4 | N/A | Remarks: Also Fit 2133; TYC Radiator |
| 1996 | Toyota | T100 | — | — | 4WD | — | 3.4L | V6 | N/A | Remarks: Also Fit 2133; TYC Radiator |
| 1996 | Toyota | T100 | — | — | RWD | — | 3.4L | V6 | N/A | Remarks: Also Fit 2133; TYC Radiator |
| 1995 | Toyota | T100 | — | — | 4WD | — | 3.4L | V6 | N/A | Remarks: Also Fit 2133; TYC Radiator |
| 1995 | Toyota | T100 | — | — | RWD | — | 2.7L | L4 | N/A | Remarks: Also Fit 2133; TYC Radiator |
| 1995 | Toyota | T100 | — | — | RWD | — | 3.4L | V6 | N/A | Remarks: Also Fit 2133; TYC Radiator |
| 1994 | Toyota | T100 | SR5 | Standard Cab Pickup | RWD | Automatic | 3.0L | V6 | Primary | TYC Radiator |
| 1993 | Toyota | T100 | Base | Standard Cab Pickup | RWD | Automatic | 3.0L | V6 | Primary | TYC Radiator |
