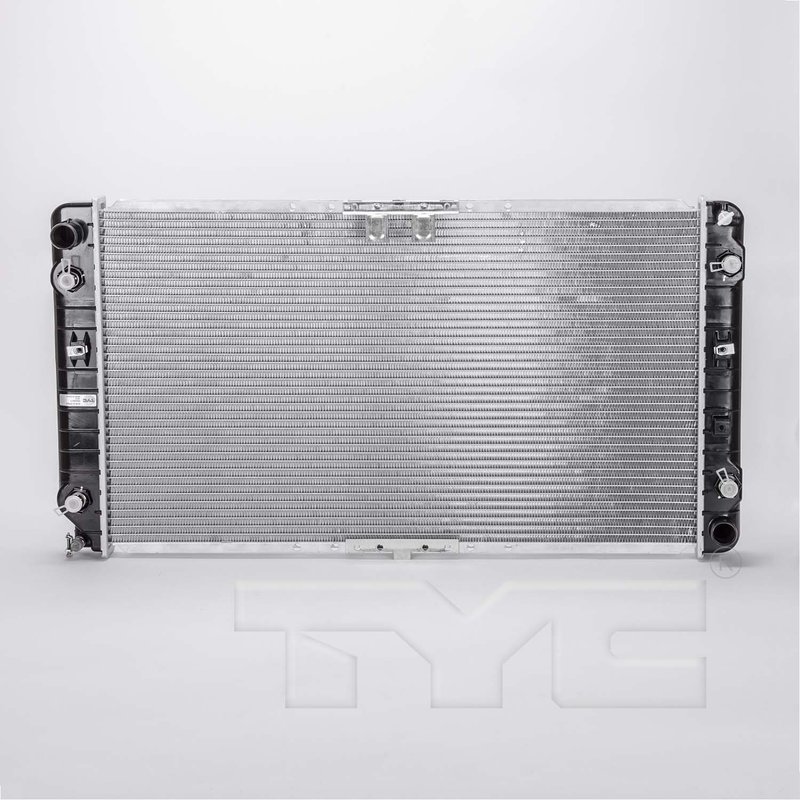

TYC 1517 Radiator

Overview of TYC Radiator 1517 for Buick, Cadillac, Chevrolet

The TYC Radiator part number 1517 is engineered to provide reliable cooling performance for select Buick, Cadillac, and Chevrolet models. Designed with durable aluminum core material, this radiator supports efficient heat dissipation and includes integrated oil coolers for both engine and transmission systems.

• Core material constructed from aluminum for enhanced heat transfer
• Includes transmission oil cooler with plate oil cooler design
• Engine oil cooler included featuring concentric oil cooler type
• Crossflow flow configuration for optimized coolant circulation
• Core dimensions: 17.24 inches height, 30.51 inches length, 1.26 inches thickness
• Inlet and outlet connections use hose clamp type with 1.30 inch diameter
• Compatible with Buick Caprice, Cadillac Fleetwood, Chevrolet Impala, and Roadmaster

Detailed Features and Specifications

The TYC Radiator 1517 is part of the TYC Radiator product line, known for its focus on quality cooling components tailored to specific vehicle applications. This radiator features a robust aluminum core that measures 17.24 inches in height, 30.51 inches in length, and 1.26 inches in thickness, providing a solid balance between cooling capacity and durability. The crossflow design enhances coolant flow efficiency, reducing engine operating temperatures.

Integrated within the radiator are both engine and transmission oil coolers. The transmission oil cooler uses a plate oil cooler type, while the engine oil cooler is a concentric oil cooler, both designed to maintain optimal oil temperatures and improve overall vehicle performance. The inlet and outlet connections are hose clamp types with a 1.30 inch diameter, ensuring secure and leak-free installation.

Compatible Vehicles and Applications

This radiator is specifically compatible with the following vehicles:

• Buick Caprice
• Cadillac Fleetwood
• Chevrolet Impala
• Chevrolet Roadmaster

It is designed to replace original equipment radiators in these models, supporting proper engine cooling and oil temperature regulation.

Common Issues Addressed by TYC Radiator 1517

• Overheating due to inefficient radiator core or clogged passages
• Transmission fluid overheating affecting transmission performance
• Engine oil temperature regulation problems leading to premature wear
• Leaks or damage in original radiator causing coolant loss
• Reduced cooling efficiency from worn or corroded radiator components

Installation Notes and Tips

When installing the TYC Radiator 1517, ensure all hose clamps are securely tightened to prevent leaks. Verify compatibility with your vehicle’s make and model before installation. Properly flush the cooling system to remove debris and contaminants for optimal performance. Check transmission and engine oil cooler connections for correct adapter fittings and secure attachment.

Quality Assurance and Warranty

TYC Radiator products undergo rigorous quality control to meet industry standards for durability and performance. The aluminum core construction and integrated oil coolers are designed for long service life. Please refer to TYC’s official warranty policy for specific coverage details related to part number 1517.
