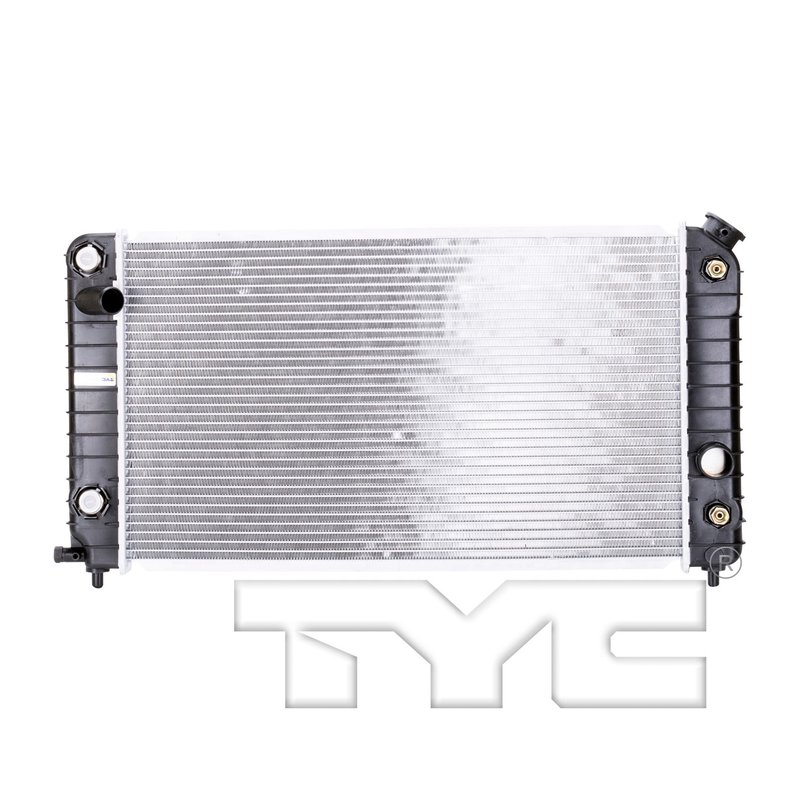

TYC 1533 Radiator
| Brand | TYC 1533 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | Yes |
| Bottom Header | 2.42x16.59 |
| Core Height (in) | 15.08 |
| Core Length (in) | 26.26 |
| Core Thickness (in) | 1.26 |
| Eoc Distance (in) | 11.50 |
| Fin Count (every 4") | 56 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.6 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.30 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.54 |
| Toc Distance (in) | 11.50 |
| Toc Inlet Diameter (in) | 5/8-18unf |
| Toc Inlet Type | Adapter |
| Toc Outlet Diameter (in) | 5/8-18unf |
| Toc Outlet Type | Adapter |
| Top Header | 2.42x16.59 |
| Total Fin Row Count | 35 |
| Total Tube Count | 34 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 32x2 |
| Product line | TYC Radiator |
| Fits | Chevrolet and GMC · 12 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports steady coolant flow through a single-row radiator.
Integrated coolers. Includes plate-style engine and transmission oil coolers.
Cross-references APDI 8011533, General Motors 52462548 and Partslink GM3010228 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for GM Truck Cooling Systems
TYC Radiator 1533 is a direct-fit aluminum radiator built for select GM compact truck and SUV applications. It includes engine oil cooler and transmission oil cooler provisions, making it a practical replacement for vehicles that rely on integrated cooling circuits.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow design with 1-row core layout
- Engine oil cooler included with plate-style cooler design
- Transmission oil cooler included with plate-style cooler design
- Hose clamp inlet and outlet connections
- Core dimensions: 26.26 in. length, 15.08 in. height, 1.26 in. thickness
- Inlet diameter: 1.30 in.; outlet diameter: 1.54 in.
- TYC Radiator 1533 cross-references Spectra Premium CU1533 and APDI 8011533 for the same application
Detailed Description
TYC Radiator 1533 is engineered for cooling-system replacement on 1994-1995 Chevrolet S10, 1995 Chevrolet Blazer, 1995 GMC Jimmy, and 1994-1995 GMC Sonoma applications. The aluminum core, crossflow layout, and integrated plate-style engine and transmission oil coolers support thermal management in vehicles that route fluid cooling through the radiator assembly. The TYC Radiator line focuses on OE-style replacement fitment and construction details that match the original cooling package requirements for these GM platforms.
Use TYC Radiator 1533 when replacing a worn or leaking radiator on a 1995 Chevrolet Blazer or 1994-1995 Chevrolet S10, and on 1995 GMC Jimmy or 1994-1995 GMC Sonoma models equipped with the matching cooler connections and hose clamp inlet/outlet setup. The part number 1533 is also referenced by GM 52462548 and Partslink GM3010228.
What It Helps Address
- Coolant leaks from a damaged or corroded radiator core
- Overheating caused by restricted coolant flow
- Transmission temperature concerns tied to radiator-integrated cooling
- Engine oil cooling issues on applications using radiator-mounted oil coolers
- Fitment problems when replacing an OE-style GM radiator assembly
Installation Notes
Verify core dimensions, inlet and outlet diameters, and cooler connection types before installation. Confirm that the vehicle uses hose clamp radiator connections and adapter-style 5/8-18UNF cooler ports. Flush the cooling system, inspect hoses and clamps, and check for proper sealing at all cooler and hose interfaces during installation.
Quality Assurance
TYC Radiator 1533 is built as a replacement radiator for the listed Chevrolet and GMC applications, with aluminum construction and integrated cooling features that align with the original equipment layout.
Compatible Vehicles
- Fits 1995 Chevrolet Blazer, N/A
- Fits 1994-1995 Chevrolet S10, N/A
- Fits 1995 GMC Jimmy, N/A
- Fits 1994-1995 GMC Sonoma, N/A
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1995 | Chevrolet | Blazer | Manual | 4.3L | V6 | N/A | TYC Radiator |
| 1995 | Chevrolet | Blazer | Automatic | 4.3L | V6 | N/A | TYC Radiator |
| 1995 | Chevrolet | S10 | Manual | 4.3L | V6 | N/A | TYC Radiator |
| 1995 | Chevrolet | S10 | Automatic | 4.3L | V6 | N/A | TYC Radiator |
| 1995 | GMC | Jimmy | Automatic | 4.3L | V6 | N/A | TYC Radiator |
| 1995 | GMC | Jimmy | Manual | 4.3L | V6 | N/A | TYC Radiator |
| 1995 | GMC | Sonoma | Manual | 4.3L | V6 | N/A | TYC Radiator |
| 1995 | GMC | Sonoma | Automatic | 4.3L | V6 | N/A | TYC Radiator |
| 1994 | Chevrolet | S10 | Manual | 4.3L | V6 | N/A | TYC Radiator |
| 1994 | Chevrolet | S10 | Automatic | 4.3L | V6 | N/A | TYC Radiator |
| 1994 | GMC | Sonoma | Automatic | 4.3L | V6 | N/A | TYC Radiator |
| 1994 | GMC | Sonoma | Manual | 4.3L | V6 | N/A | TYC Radiator |
