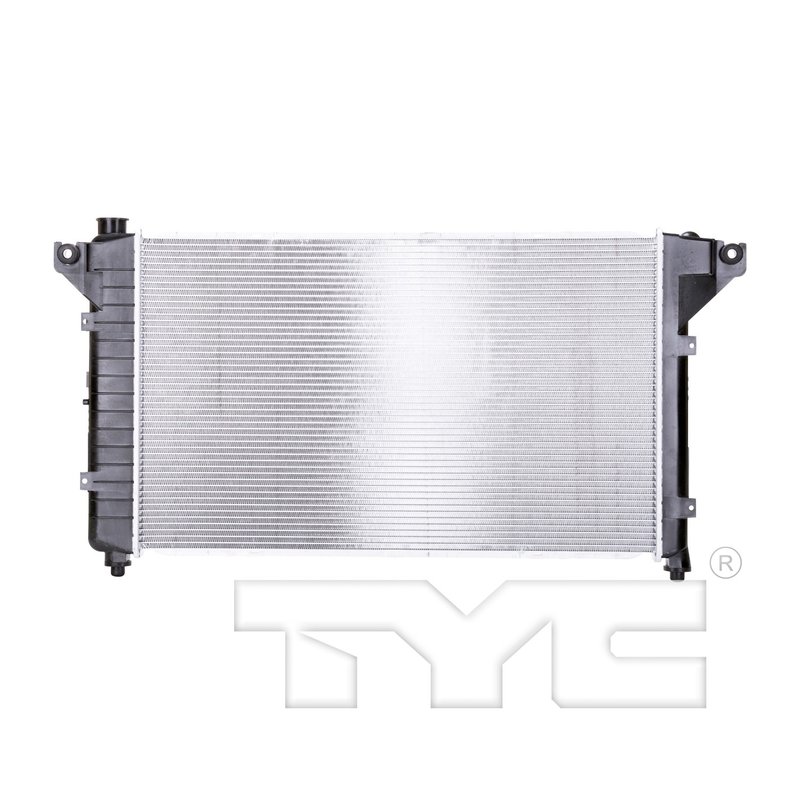

TYC 1552 Radiator
OE Quality 60-Day Returns
TYC
 TYC Radiator

TYC 1552 Radiator

Brand TYC 1552
Core Material Aluminum
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Type Concentric oil cooler
Engine Oil Cooler Included No
Bottom Header 2.5x20.31
Core Height (in) 19.21
Core Length (in) 31.61
Core Thickness (in) 1.26
Fin Count (every 4") 64
Fin Wave Height (in) 0.31
Find Wave Pitch 3.2
Flow Configuration Crossflow
Inlet Connection Type Hose clamp
Inlet Diameter (in) 1.50
No. Of Rows 1
Outlet Connection Type Hose clamp
Outlet Diameter (in) 1.73
Toc Distance (in) 14.37
Top Header 2.5x20.31
Total Fin Row Count 49
Total Tube Count 48
Tube Count (every 4") 10
Tube Width X Height 32x2
Product line TYC Radiator
Fits Dodge · 75 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Crossflow design. Supports even coolant flow through the radiator core.

Transmission oil cooler included. Adds integrated cooling for the transmission fluid.

Cross-references APDI 8011552, CSF 2511 and DENSO 221-7005 for the same application. See all 10.

$214.88Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $214.88
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

TYC Radiator 1552 for Dodge Ram Cooling Service

The TYC Radiator 1552 is a direct-fit radiator for select 1994-1997 Dodge Ram 1500, Ram 2500, and Ram 3500 applications. Built with an aluminum core and a crossflow design, it includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling through the radiator.

Key Features

  • Aluminum core construction for efficient heat transfer
  • Crossflow radiator layout
  • Transmission oil cooler included
  • Concentric oil cooler design
  • Hose clamp inlet and outlet connections
  • 1.50 in. inlet diameter and 1.73 in. outlet diameter
  • Fits 1994-1997 Dodge Ram 1500, Ram 2500, and Ram 3500 applications
  • TYC Radiator 1552 for OE-style cooling system replacement

Product Details

TYC Radiator 1552 is built around a 19.21 in. core height, 31.61 in. core length, and 1.26 in. core thickness, with a single-row aluminum core and 48 tubes. The radiator uses a crossflow flow configuration and a concentric transmission oil cooler to support automatic transmission fluid cooling through the radiator assembly. This part cross-references Spectra Premium CU1552 and DENSO 221-7005 for the same application.

For Dodge Ram 1500, Ram 2500, and Ram 3500 trucks from 1994-1997, this radiator provides the core dimensions and connection style needed for a direct replacement in the cooling system. The TYC Radiator 1552 is a practical choice when replacing a leaking, clogged, or damaged radiator on these Ram truck platforms.

What This Radiator Helps Address

  • Coolant leaks from a cracked or corroded radiator core
  • Overheating caused by restricted coolant flow
  • Transmission fluid temperature issues related to a failing radiator cooler
  • Damaged inlet or outlet necks on the original radiator
  • Cooling system service on high-mileage Dodge Ram trucks

Installation Notes and Tips

Verify radiator dimensions, inlet and outlet sizes, and transmission cooler routing before installation. Confirm that the vehicle uses the radiator-mounted transmission oil cooler configuration and compare the existing hose clamp connections to the replacement part. Inspect hoses, clamps, and coolant condition during radiator replacement, and flush the cooling system if contamination is present.

Quality Assurance

TYC manufactures replacement cooling components for vehicle-specific applications, and this radiator is built to match the listed fitment and cooling-system configuration for the 1994-1997 Dodge Ram 1500, Ram 2500, and Ram 3500.

Related reading

This part fits 75 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody TypeTransmissionLitersCylindersFuel TypePositionNotes
1997DodgeRam 1500LTStandard Cab PickupAutomatic5.2LV8—N/ATYC Radiator
1997DodgeRam 1500STStandard Cab PickupAutomatic5.2LV8—N/ATYC Radiator
1997DodgeRam 1500WSStandard Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1997DodgeRam 1500SportStandard Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1997DodgeRam 1500STStandard Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1997DodgeRam 1500LaramieExtended Cab PickupAutomatic5.2LV8—N/ATYC Radiator
1997DodgeRam 1500LaramieExtended Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1997DodgeRam 1500STExtended Cab PickupAutomatic5.2LV8—N/ATYC Radiator
1997DodgeRam 1500STExtended Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1997DodgeRam 1500SportExtended Cab PickupAutomatic5.2LV8—N/ATYC Radiator
1997DodgeRam 1500STStandard Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1997DodgeRam 1500SportStandard Cab PickupAutomatic5.2LV8—N/ATYC Radiator
1997DodgeRam 1500STExtended Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1997DodgeRam 1500LTStandard Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1997DodgeRam 1500SS/T 5.9LStandard Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1997DodgeRam 1500SportStandard Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1997DodgeRam 1500LTStandard Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1997DodgeRam 1500LaramieStandard Cab PickupAutomatic5.2LV8—N/ATYC Radiator
1997DodgeRam 1500SportExtended Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1997DodgeRam 1500LaramieExtended Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1997DodgeRam 1500LaramieStandard Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1997DodgeRam 1500LaramieStandard Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1997DodgeRam 1500SportExtended Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1997DodgeRam 2500—Standard Cab PickupAutomatic5.2LV8GASN/ATYC Radiator
1997DodgeRam 2500—Extended Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1997DodgeRam 2500—Standard Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1997DodgeRam 2500—Cab & ChassisAutomatic5.9LV8GASN/ATYC Radiator
1997DodgeRam 3500—Extended Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1997DodgeRam 3500—Cab & ChassisAutomatic5.9LV8GASN/ATYC Radiator
1997DodgeRam 3500—Standard Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1996DodgeRam 1500BaseExtended Cab PickupAutomatic5.2LV8—N/ATYC Radiator
1996DodgeRam 1500BaseExtended Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1996DodgeRam 1500BaseStandard Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1996DodgeRam 1500BaseStandard Cab PickupAutomatic5.2LV8—N/ATYC Radiator
1996DodgeRam 1500BaseStandard Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1996DodgeRam 1500BaseExtended Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1996DodgeRam 2500—Standard Cab PickupAutomatic5.2LV8CNGN/ATYC Radiator
1996DodgeRam 2500—Standard Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1996DodgeRam 2500—Cab & ChassisAutomatic5.2LV8GASN/ATYC Radiator
1996DodgeRam 2500—Extended Cab PickupAutomatic5.2LV8GASN/ATYC Radiator
1996DodgeRam 2500—Extended Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1996DodgeRam 2500—Extended Cab PickupAutomatic5.2LV8CNGN/ATYC Radiator
1996DodgeRam 2500—Cab & ChassisAutomatic5.2LV8CNGN/ATYC Radiator
1996DodgeRam 2500—Cab & ChassisAutomatic5.9LV8GASN/ATYC Radiator
1996DodgeRam 2500—Standard Cab PickupAutomatic5.2LV8GASN/ATYC Radiator
1996DodgeRam 3500—Standard Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1996DodgeRam 3500—Extended Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1996DodgeRam 3500—Cab & ChassisAutomatic5.9LV8GASN/ATYC Radiator
1995DodgeRam 1500BaseExtended Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1995DodgeRam 1500BaseStandard Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1995DodgeRam 1500BaseStandard Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1995DodgeRam 1500BaseStandard Cab PickupAutomatic5.2LV8—N/ATYC Radiator
1995DodgeRam 1500BaseExtended Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1995DodgeRam 1500BaseExtended Cab PickupAutomatic5.2LV8—N/ATYC Radiator
1995DodgeRam 2500—Standard Cab PickupAutomatic5.2LV8GASN/ATYC Radiator
1995DodgeRam 2500—Extended Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1995DodgeRam 2500—Extended Cab PickupAutomatic5.2LV8CNGN/ATYC Radiator
1995DodgeRam 2500—Extended Cab PickupAutomatic5.2LV8GASN/ATYC Radiator
1995DodgeRam 2500—Cab & ChassisAutomatic5.2LV8CNGN/ATYC Radiator
1995DodgeRam 2500—Cab & ChassisAutomatic5.2LV8GASN/ATYC Radiator
1995DodgeRam 2500—Cab & ChassisAutomatic5.9LV8GASN/ATYC Radiator
1995DodgeRam 2500—Standard Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1995DodgeRam 2500—Standard Cab PickupAutomatic5.2LV8CNGN/ATYC Radiator
1995DodgeRam 3500—Standard Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1995DodgeRam 3500—Cab & ChassisAutomatic5.9LV8GASN/ATYC Radiator
1995DodgeRam 3500—Extended Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1994DodgeRam 1500BaseStandard Cab PickupAutomatic3.9LV6—N/ATYC Radiator
1994DodgeRam 1500BaseStandard Cab PickupAutomatic5.9LV8—N/ATYC Radiator
1994DodgeRam 1500BaseStandard Cab PickupAutomatic5.2LV8—N/ATYC Radiator
1994DodgeRam 2500—Cab & ChassisAutomatic5.2LV8GASN/ATYC Radiator
1994DodgeRam 2500—Standard Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
1994DodgeRam 2500—Cab & ChassisAutomatic5.9LV8GASN/ATYC Radiator
1994DodgeRam 2500—Standard Cab PickupAutomatic5.2LV8GASN/ATYC Radiator
1994DodgeRam 3500—Cab & ChassisAutomatic5.9LV8GASN/ATYC Radiator
1994DodgeRam 3500—Standard Cab PickupAutomatic5.9LV8GASN/ATYC Radiator
Directly replaces or cross-references 10 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8011552CSF — 2511DENSO — 221-7005Dodge — 52028057AEPartslink — CH3010150Silla Cooling — 1552Spectra Premium — CU1552TYC — DG37024AVista Pro — 431335Visteon — 9122
