Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

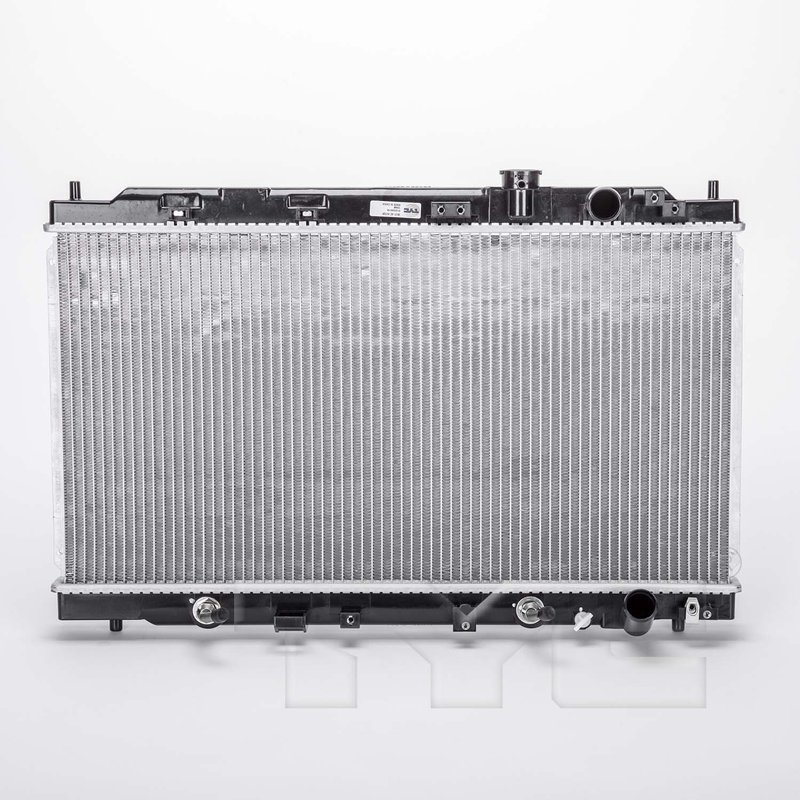

TYC 1568 Radiator
| Brand | TYC 1568 |
|---|---|
| Bottom Header | 2.09x27.23 |
| Core Height (in) | 26.3 |
| Core Length (in) | 13.78 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.63 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 68 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.26 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.26 |
| Remarks | TOYO/DENSO TYPE |
| Toc Distance (in) | 12.80 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.71x27.23 |
| Total Fin Row Count | 67 |
| Total Tube Count | 66 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Acura · 15 vehicles |
Aluminum core. Helps shed heat efficiently with a lightweight, corrosion-resistant design.
Concentric oil cooler. Includes a transmission oil cooler integrated into the radiator assembly.
Hose clamp connections. Uses common inlet and outlet fittings for straightforward installation.
Cross-references Acura 19010-P73-A03, APDI 8011568 and CSF 2089 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC 1568 Radiator for Acura Integra
The TYC Radiator 1568 is a direct-fit cooling system replacement for select Acura Integra applications. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling needs.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections
- TOYO/DENSO type replacement design
- Fits Acura Integra applications from 1994-2001
Product Details
This TYC Radiator 1568 is engineered around OE-style dimensions and connection points for Acura Integra fitment. Core measurements include a 26.3-inch height, 13.78-inch length, and 0.63-inch thickness, with a single-row aluminum core and hose clamp inlet and outlet diameters of 1.26 inches. The integrated transmission oil cooler uses tube fitting connections and is sized for the listed application. This part cross-references DENSO 221-3211 and Spectra Premium CU1741 for the same application.
Compatible With 1998-2001 Acura Integra and 1994-1997 Acura Integra, this radiator is a practical replacement for vehicles needing restored coolant flow and transmission fluid cooling. The TYC 1568 is also referenced under Acura 19010-P73-A03 and TYC HD37001A interchange numbers.
Common Issues This Radiator Can Address
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted heat dissipation
- Transmission temperature concerns when the cooler circuit is compromised
- Cracked tanks or weakened core seams
- Poor cooling performance from an aging OE-style radiator
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet sizes, and transmission cooler line connections before installation. Confirm the vehicle uses the listed TOYO/DENSO type configuration and that hose clamp and tube fitting connections match the original setup. Flush the cooling system, inspect hoses and clamps, and refill with the correct coolant mixture after installation.
Quality Assurance
TYC manufactures replacement cooling components with OE-style fitment and application-specific construction. This radiator is built to match the listed Acura Integra applications and cooling system requirements.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2001 | Acura | Integra | LS | Sedan | Automatic | 1.8L | L4 | N/A | Toyo Brand; TYC Radiator |
| 2000 | Acura | Integra | LS | Hatchback | Automatic | 1.8L | L4 | N/A | Toyo Brand; TYC Radiator |
| 1999 | Acura | Integra | LS | Hatchback | Automatic | 1.8L | L4 | N/A | Toyo Brand; TYC Radiator |
| 1998 | Acura | Integra | LS | Sedan | Automatic | 1.8L | L4 | N/A | Toyo Brand; TYC Radiator |
| 1997 | Acura | Integra | GS | — | — | — | — | N/A | ND Brand; Remarks: TOYO/DENSO TYPE; TYC Radiator |
| 1997 | Acura | Integra | LS | — | — | — | — | N/A | ND Brand; Remarks: TOYO/DENSO TYPE; TYC Radiator |
| 1997 | Acura | Integra | RS | — | — | — | — | N/A | ND Brand; Remarks: TOYO/DENSO TYPE; TYC Radiator |
| 1996 | Acura | Integra | RS | — | — | — | — | N/A | ND Brand; Remarks: TOYO/DENSO TYPE; TYC Radiator |
| 1996 | Acura | Integra | LS | — | — | — | — | N/A | ND Brand; Remarks: TOYO/DENSO TYPE; TYC Radiator |
| 1996 | Acura | Integra | Special Edition | — | — | — | — | N/A | ND Brand; Remarks: TOYO/DENSO TYPE; TYC Radiator |
| 1995 | Acura | Integra | LS | — | — | — | — | N/A | ND Brand; Remarks: TOYO/DENSO TYPE; TYC Radiator |
| 1995 | Acura | Integra | RS | — | — | — | — | N/A | ND Brand; Remarks: TOYO/DENSO TYPE; TYC Radiator |
| 1995 | Acura | Integra | Special Edition | — | — | — | — | N/A | ND Brand; Remarks: TOYO/DENSO TYPE; TYC Radiator |
| 1994 | Acura | Integra | RS | — | — | — | — | N/A | ND Brand; Remarks: TOYO/DENSO TYPE; TYC Radiator |
| 1994 | Acura | Integra | LS | — | — | — | — | N/A | ND Brand; Remarks: TOYO/DENSO TYPE; TYC Radiator |
