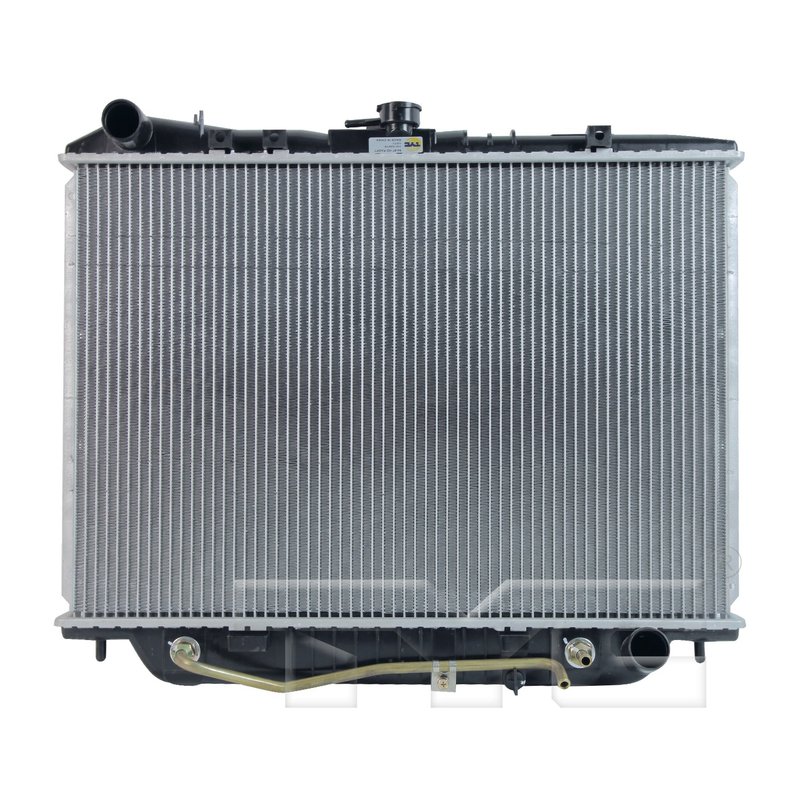

TYC 1571 Radiator
| Brand | TYC 1571 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.11x25.22 |
| Core Height (in) | 23.94 |
| Core Length (in) | 16.73 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.50 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.50 |
| Toc Distance (in) | 14.37 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.11x25.22 |
| Total Fin Row Count | 61 |
| Total Tube Count | 60 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Honda and Isuzu · 12 vehicles |
Aluminum core. Lightweight construction helps shed heat efficiently.
Concentric oil cooler. Built with an integrated transmission oil cooler.
Hose clamp connections. Simplifies hose attachment for a secure fit.
Cross-references APDI 8011571, Honda 8524759590 and Honda 8524759600 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Honda Passport and Isuzu Rodeo
TYC Radiator part number 1571 is a direct-fit cooling system replacement built with an aluminum core and a downflow design. It includes a concentric transmission oil cooler and is engineered for vehicles that need dependable engine cooling and automatic transmission fluid heat management.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow flow configuration
- Transmission oil cooler included with concentric oil cooler design
- Hose clamp inlet and outlet connections
- 1.50 in. inlet and outlet diameters
- Single-row core design with 60 total tubes
- Core dimensions: 23.94 in. height, 16.73 in. length, 1.02 in. thickness
Product Details
This TYC Radiator 1571 is built for select Honda Passport and Isuzu Rodeo applications, along with Isuzu VehiCROSS coverage. The radiator uses an aluminum core with a downflow layout to support coolant circulation through the engine cooling system, while the integrated concentric transmission oil cooler adds fluid temperature control for automatic transmission setups. For shoppers searching for a radiator for 1994-1997 Honda Passport, a radiator for 1993-1997 Isuzu Rodeo, or a radiator for 1999-2001 Isuzu VehiCROSS, this part number 1571 matches those vehicle-specific applications.
This part cross-references Spectra Premium CU1571 for the same application.
What This Radiator Helps Address
- Overheating caused by a worn or restricted radiator core
- Transmission fluid temperature buildup in vehicles with an integrated cooler
- Coolant flow issues related to damaged tubes or headers
- Leaks at aging hose-clamp inlet or outlet connections
- Reduced cooling performance from corrosion or internal blockage
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet diameter, and transmission cooler line connection style before installation. Confirm hose clamp fitment and inspect upper and lower hoses, clamps, and coolant condition during replacement. Flush the cooling system if contamination or debris is present, and refill with the correct coolant mixture after installation. This radiator is listed for 1994-1997 Honda Passport, 1993-1997 Isuzu Rodeo, and 1999-2001 Isuzu VehiCROSS applications.
Quality Assurance
TYC manufactures replacement cooling components with application-specific fitment and OE-style construction details. Part number 1571 is built to match the listed vehicle applications and cooling system requirements.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Isuzu | VehiCROSS | 3.5L | V6 | N/A | TYC Radiator |
| 2000 | Isuzu | VehiCROSS | 3.5L | V6 | N/A | TYC Radiator |
| 1999 | Isuzu | VehiCROSS | 3.5L | V6 | N/A | TYC Radiator |
| 1997 | Honda | Passport | 3.2L | V6 | N/A | TYC Radiator |
| 1997 | Isuzu | Rodeo | 3.2L | V6 | N/A | TYC Radiator |
| 1996 | Honda | Passport | 3.2L | V6 | N/A | TYC Radiator |
| 1996 | Isuzu | Rodeo | 3.2L | V6 | N/A | TYC Radiator |
| 1995 | Honda | Passport | 3.2L | V6 | N/A | TYC Radiator |
| 1995 | Isuzu | Rodeo | 3.2L | V6 | N/A | TYC Radiator |
| 1994 | Honda | Passport | 3.2L | V6 | N/A | TYC Radiator |
| 1994 | Isuzu | Rodeo | 3.2L | V6 | N/A | TYC Radiator |
| 1993 | Isuzu | Rodeo | 3.2L | V6 | N/A | TYC Radiator |
