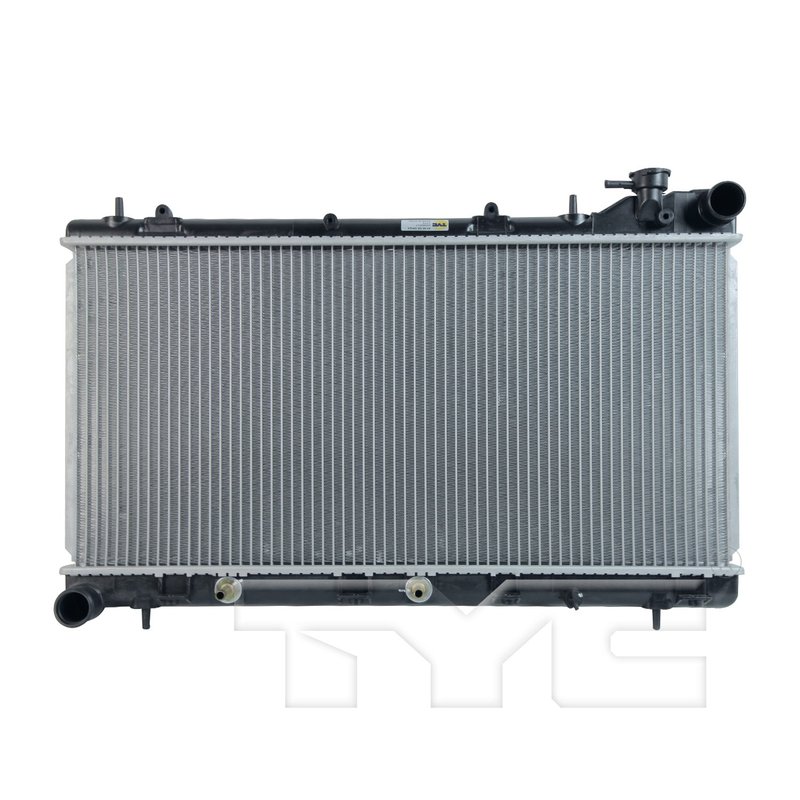

TYC 1574 Radiator
OE Quality 60-Day Returns
TYC
TYC Radiator

TYC 1574 Radiator

Brand TYC 1574
Bottom Header 1.96x28.21
Core Height (in) 27.2
Core Length (in) 13.39
Core Material Aluminum
Core Thickness (in) 0.63
Engine Oil Cooler Included No
Fin Count (every 4") 64
Fin Wave Height (in) 0.35
Find Wave Pitch 3.2
Flow Configuration Downflow
Inlet Connection Type Hose Clamp
Inlet Diameter (in) 1.54
No. Of Rows 1
Outlet Connection Type Hose Clamp
Outlet Diameter (in) 1.54
Toc Distance (in) 7.87
Top Header 1.96x28.21
Total Fin Row Count 63
Total Tube Count 62
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Type Concentric Oil Cooler
Tube Count (every 4") 10
Tube Width X Height 16x2
Product line TYC Radiator
Fits Subaru · 18 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Transmission oil cooler included. Built with a concentric oil cooler for added cooling support.

Hose clamp connections. Simple inlet and outlet attachment for straightforward installation.

Cross-references APDI 8011574, CSF 2143 and CSF 2500 for the same application. See all 12.

$122.79Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $122.79
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

TYC 1574 Radiator for Subaru Impreza

The TYC Radiator 1574 is a direct-fit cooling replacement for 1993-1998 Subaru Impreza applications. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling needs.

Key Features

  • Aluminum core construction for efficient heat transfer
  • Downflow flow configuration
  • Transmission oil cooler included with concentric oil cooler type
  • Hose clamp inlet and outlet connections
  • 1.54 in. inlet and outlet diameters
  • Single-row core design
  • Fits 1993-1998 Subaru Impreza, N/A

Product Details

This TYC Radiator 1574 is engineered for Subaru Impreza cooling system service across the 1993-1998 model years. Core dimensions measure 27.2 in. high, 13.39 in. long, and 0.63 in. thick, with a 62-tube layout and 63 total fin rows. The radiator uses hose clamp-style inlet and outlet connections and includes a concentric transmission oil cooler, making it a practical replacement for vehicles that route transmission fluid through the radiator assembly. This part cross-references Spectra Premium CU1574 and DENSO 221-4600 for the same application.

Common Uses

  • Replacing a leaking or corroded Subaru Impreza radiator
  • Restoring coolant circulation after overheating
  • Addressing transmission cooler seepage at the radiator
  • Correcting poor heat rejection from a damaged core
  • Servicing a worn factory-style cooling assembly on 1993-1998 Subaru Impreza models

Installation Notes

Verify hose diameter, mounting points, and transmission cooler line routing before installation. Flush the cooling system, inspect hoses and clamps, and refill with the correct coolant mixture after installation. Confirm that the transmission cooler connections are secure and leak-free before returning the vehicle to service.

Quality Assurance

TYC manufactures replacement cooling components with application-specific fitment and OE-style construction details. The TYC Radiator 1574 is built to match the listed Subaru Impreza applications and cooling-system requirements.

Related reading

This part fits 18 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelTransmissionLitersCylindersPositionNotes
1998SubaruImprezaAutomatic2.2LH4N/ATYC Radiator
1998SubaruImprezaManual2.2LH4N/ATYC Radiator
1997SubaruImprezaManual1.8LH4N/ATYC Radiator
1997SubaruImprezaAutomatic2.2LH4N/ATYC Radiator
1997SubaruImprezaManual2.2LH4N/ATYC Radiator
1997SubaruImprezaAutomatic1.8LH4N/ATYC Radiator
1996SubaruImprezaManual1.8LH4N/ATYC Radiator
1996SubaruImprezaManual2.2LH4N/ATYC Radiator
1996SubaruImprezaAutomatic1.8LH4N/ATYC Radiator
1996SubaruImprezaAutomatic2.2LH4N/ATYC Radiator
1995SubaruImprezaManual2.2LH4N/ATYC Radiator
1995SubaruImprezaManual1.8LH4N/ATYC Radiator
1995SubaruImprezaAutomatic1.8LH4N/ATYC Radiator
1995SubaruImprezaAutomatic2.2LH4N/ATYC Radiator
1994SubaruImprezaAutomatic1.8LH4N/ATYC Radiator
1994SubaruImprezaManual1.8LH4N/ATYC Radiator
1993SubaruImprezaManual1.8LH4N/ATYC Radiator
1993SubaruImprezaAutomatic1.8LH4N/ATYC Radiator
Directly replaces or cross-references 12 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8011574CSF — 2143CSF — 2500DENSO — 221-4600Partslink — SU3010107Silla Cooling — 7412Spectra Premium — CU1574Subaru — 45199FC021Subaru — 45199FC031TYC — SB37002AVista Pro — 431373Visteon — 9756
